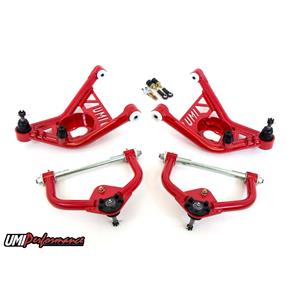

UMI Performance 70-81 Camaro Firebird Front Upper Lower Tubular Control Arms Red

To make sure you receive your package, all items $500 and over are sent signature required

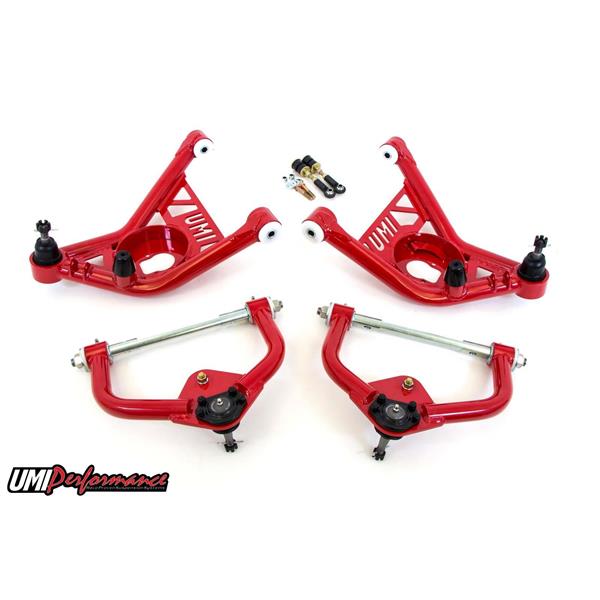

1970 - 1981 Camaro or Firebird Front Tubular Upper & Lower A-arm Kit

Made in the USA!

• Applications:
• 70-81 Chevrolet Camaro
• 70-81 Pontiac Firebird
• All models)

UMI"s 2nd Generation F-body a-arms are perfect for the F-body enthusiast seeking to improve the performance and appearance of their front suspension. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster range is 5-7 degrees. The spindle pin location remains unchanged so fender clearance is like stock. The upper a-arms include chromoly offset cross shafts to reduce the amount of shims required when setting camber. A pancake style polyurethane bump stop and high quality ball joint is included. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI"s double shear sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.

• Features:
• Direct bolt-in for 1970-1981 GM F-body.
• hromoly offset cross shaft upper to reduce number of shims required.
• -7 degrees of total positive caster. 0 to 2-1/2 degrees of negative camber.
• Upper ball joint moved rearward to add 3-4 degrees caster potential.
• Power ball joint relocated forward to increase caster 2 degrees which improves steering feel and straight line stability.
• Upper a-arm assembled with UMI built Delrin bushings for crisp steering response.
• Upper and lower a-arms built from USA Made DOM steel tubing.
• eavy duty spring bucket accepts factory and aftermarket coil springs.
• Spring bucket is compatible with popular hybrid coils such as Viking and QA1.
• Bigh quality polyurethane bushings and bump stops provide a crisp yet comfortable ride
• Double shear swivel sway bar mounts and hardware work with UMI P/N 4035 and most other factory eyelet style sway bars.
• Made in the USA.

Warranty:
UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

UMI Performance proudly designs and manufactures its entire line of products within its facility located in the small town of Philipsburg, Pennsylvania. The facility features CNC machining, both milling and turning CNC's, band sawing, press brake operation, MIG and TIG welding, sand blasting, plasma cutting and powder coating.
