UMI Performance 70-81 Camaro Corner Max Kit- Race, Street Handling

$2,998.99
SKU: 266501-R

Availability: In stock

Handling Time: 30 Days

Details

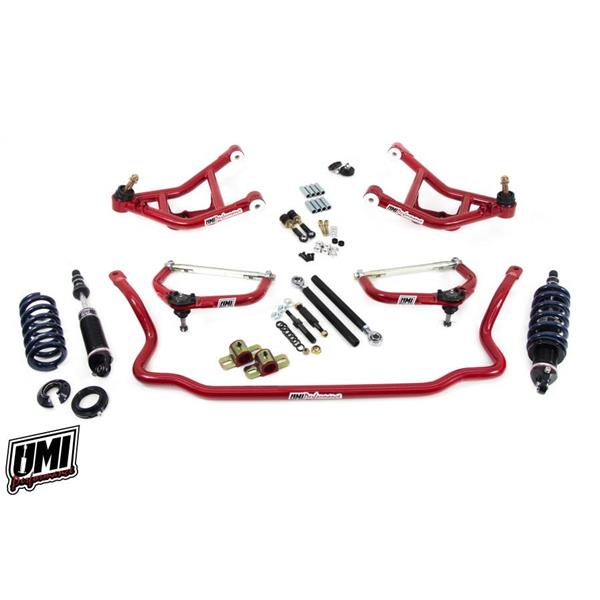

1970-1981 GM F-Body Corner Max Kit- Race, Street Handling

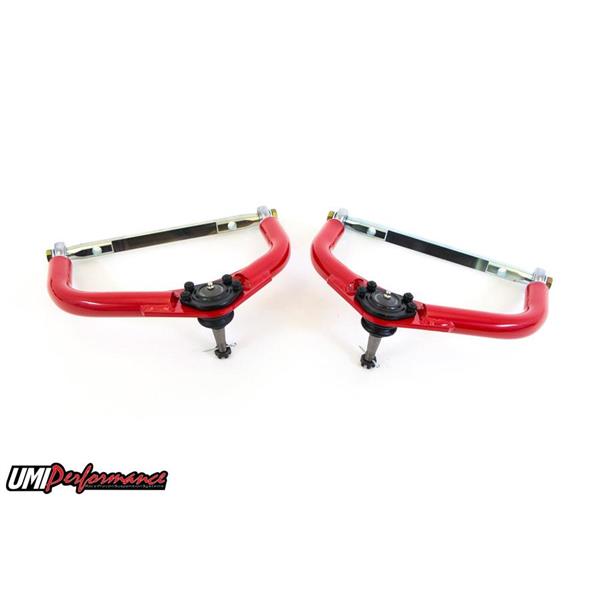

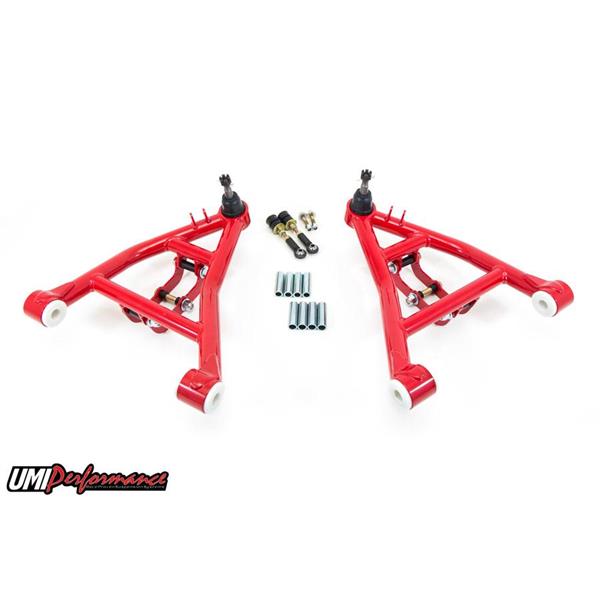

UMI’s Corner Max front end kits are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16” sway bar upgrade complete with UMI’s fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI’s rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA – USA. Race proven on many 2nd generation F-bodies across the country.

Important fitment note: If kit is used on a 1970-71 car the center link and inner tie rods must be used from a 1972-81 car for the correct bump steer fitment.

Features:

Exceptional handling at 1 to 2-1/2” lowering.

Uses factory GM spindle and lowering spindles that equal factory height.

Up to 10 degrees static caster without moving the spindle pin.

Up to 1.2 degrees per inch camber gain.

¾” taller lower and standard upper ball joints.

Easily change shocks and springs at the track using UMI’s unique quick change system.

850 lb/in race proven spring rates for exceptional handling.

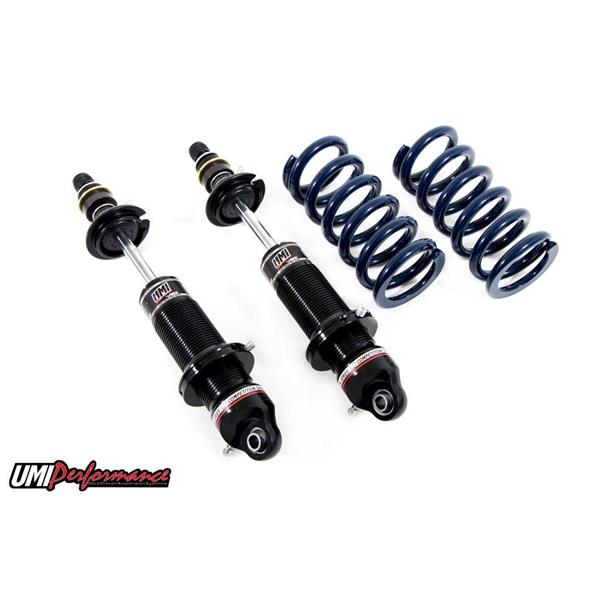

UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.

1-5/16” solid sway bar with swivel end links to balance kit properly.

Bump steer kit for fine tuning.

Thrust bearings and adjusting wrench included for easy height changes.

Raced and tested on UMI equipped 2nd generation F-bodies across the country.

All UMI suspension components are designed and manufactured in the USA.

Fitment Details

Year Make Model Trim Engine Notes
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1970 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
