UMI Performance 2017OF-B GM F-Body UMI Adjustable Control Arms with Off Set Bushings - Black

1982 - 2002 GM F-Body
Weld In Torque Arm - Dipped Crossmember
Black Powdercoat

Made in the USA!

• pplication:
• 1982 - 2002 Chevrolet Camaro
• 1982 - 2002 Pontiac Firebird

UMI's weld-in torque arm is a great way to get UMI quality and performance in your 3rd and 4th Gen F-body. The shortened torque arm length improves instant center and provides reduced 60 ft times and enhanced forward traction. The adjustment featureallows for optimizing the pinion angle and ensures a vibration-free driveline at any ride height. This part is designed with a drop down front cross member to clear virtually any aftermarket header/y-pipe set-up on the market.

Installation note:
Crossmember installation requires welding and cutting to complete installation.
Torque arm must be installed with 2-point subframe connectors. (not included)

Torque Arm Benefits:
"Removes torque arm from transmission tail shaft protecting transmission from damage
"Eliminates wheel hop and solves traction problems
"Reduces front end nose dive during braking
"allows for on-car pinion angle adjustments
"Polyurethane bushings designed to keep road noise at a minimum
"Front mounting point utilizes a grease-able pivot point with instant center adjustment


Build Features:
"Torque arm constructed of 1.250" x 0.120" DOM steel tubing
"Crossmember constructed of 1.500" x 0.120" DOM steel tubing
"TIG Welded 4140 chromoly tube adapters
"On-Car adjuster built using 4140 chromoly steel & heat treated for maximum strength
"Polyurethane bushings are greaseable to prolong bushing life
"Laser cut plates ensure hole to hole accuracy
"Rear mounting plates use 0.375" thick mild steel
"Fits stock rear end as well as 12-Bolt, 9" & S60 Rear-End Housings
"Brilliant Durable Red or Black powder coat

Rear Torque Arm Hardware Kit
UMI highly recommends purchasing a new hardware kit (see our other items) if running this torque arm on a stock rear, Strange or other similar rear-ends that use a straight through bolt design. OEM torque arm bolts will work however are slightly too short and may not fit correctly. If you are running a Moser Engineering 12-Bolt rear-end this kit is not needed, you must reuse hardware supplied by Moser Engineering. New hardware kit will work on Moser Engineering 9" rear ends.

Warranty: UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

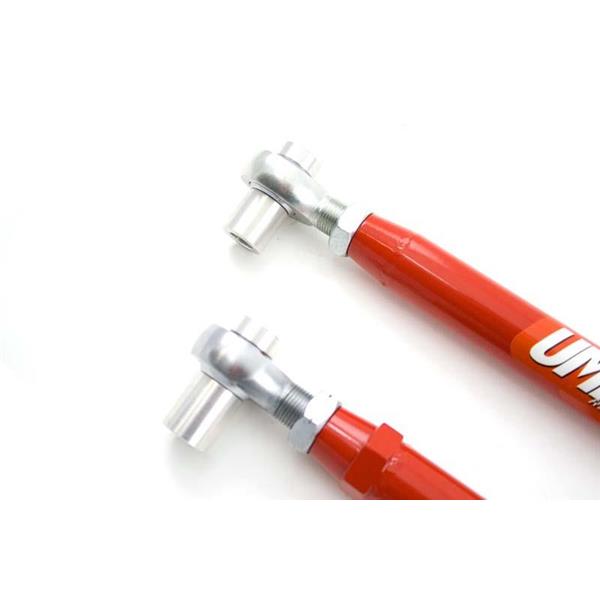

Also available in Red Powdercoat:
