Details
2005-2010 Ford Mustang Rear Control Arm Kit Made in the USA!
Black Powdercoat

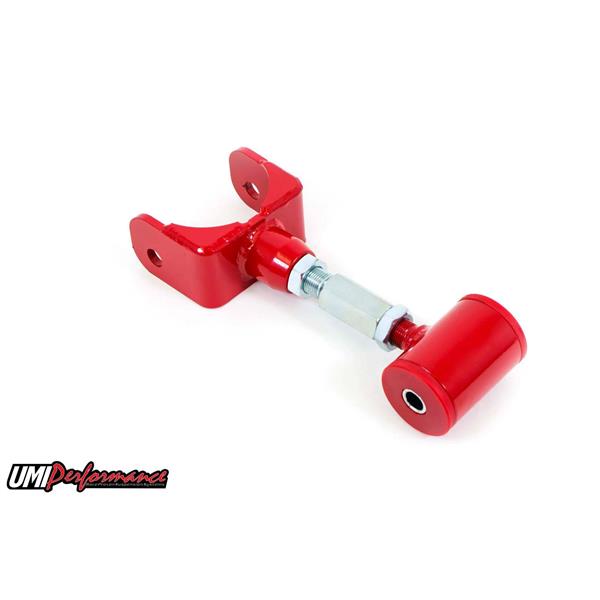

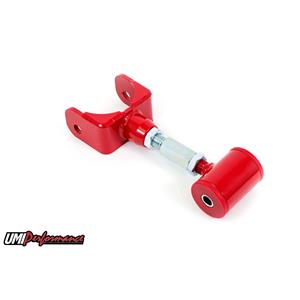

The S197 Mustang chassis uses a 3-link rear suspension system which consists of (1) upper control arm, (2) lower control arms and a panhard bar to control the rear end under the vehicle. Under hard loads the factory pieces tend to flex and rubber bushings deflect leading to poor traction and erratic handling. Replacing the factory pieces with stronger well designed items eliminates this flex allowing for better control of the vehicle and improved traction during launches. This kit from UMI Performance includes (1) rear upper control arm and (1) set of lower control arms. Both items are a 100% factory direct bolt-in replacements and use the OEM hardware. Each item is built using 0.120" wall thickness drawn over mandrel tubing, TIG welded for the utmost in strength and supplied fully assembled with grease-able Energy Suspension bushings.
- Features:
- Built from 0.120" wall thickness drawn over mandrel tubing
- Grease-able high quality Energy Suspension bushings
- Uses factory hardware
- 100% bolt-on set-up!
- Brilliant durable powder coat finish
Spacer Kit: Part # 1058 (please see our other items) spacer kit designed to fix the oversized hole problem with the factory rear upper control arm mount. Where the rear upper control arm mounts to the chassis Ford uses a 14mm bolt and a 14mm hole in the upper control arm, however the hole in the chassis mount is 16mm. This stepped spacer set is designed to take up this slop and eliminate noise and clunks from the upper control arm area. This is done by reducing the hole size from 16mm to 14mm which does not allow the bolt to shift during acceleration and braking. The spacer kit slides into the upper mount and steps the hole size down to the correct diameter of 14mm, thisallows for a tighter fit and no more clunking! Note: This kit is designed to work with the OEM upper control arm mount. It will work only on aftermarket control arm mounts that use a 16mm hole. Most aftermarket companies supply there new upper mounts with 14mm holes.
Warranty: UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.
