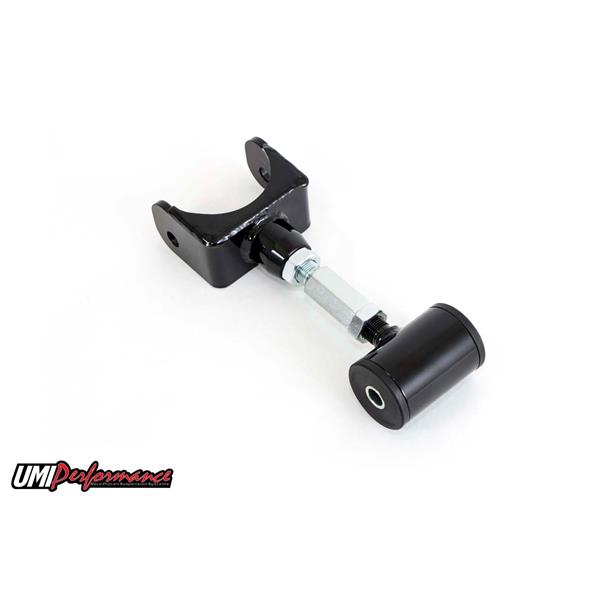

UMI Performance 1048-B Ford Mustang Rear Adjustable Upper Control Arm Poly Bushing - Black

1982 - 2002 GM F-Body Tubular Lower Control Arms and Non-Ajustable Panhard Bar Kit
Black Powdercoat

Made in the USA!

• pplication:
• 1982 - 2002 Chevrolet Camaro
• 1982 - 2002 Pontiac Firebird

This complete kit replaces your weak, factory stamped lower control arms and panhard bar with UMI's heavy duty tubular setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and helping track consistency. The panhard bar greatly increases rear stability, controls side movement and body flex while the lower control arms help to reduce unwanted wheel hop. Both items are constructed of Seamless DOM mild steel tubing, stronger and less flex then Aluminum made versions on the market. Control arms and panhard bar are both completely CNC machined and fully TIG welded featuring Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on car" grease-able grease fittings.

• Features:
• Control Arms Built Using 1.625" x 0.120" Steel DOM Tubing


• Panhard Bar Built Using 1.250" x 0.095" Steel DOM Tubing


• Complete kit Features TIG Welded Construction


• CNC Machined Zinc Plated Steel Sleeves


• Energy Suspension Fluted Polyurethane grease-able Bushings


• Durable Powder Coat Finish


• Uses OEM Hardware

Installation: Installs in approximately 30 minutes in factory mounting points using OEM hardware.

Tubular Non-Adjustable Panhard Bar

This tubular non-adjustable panhard bar is a direct replacement for the flimsy stock stamped panhard bar, it adds strength as well as bushing improvement. The panhard bar greatly increases rear stability, controls side movement and body flex; a must when hard driving habits are present.

• Features:
• 1.250" x 0.095" DOM Steel Tubing
• Precision TIG Welded Construction
• Energy Suspension Grease able Polyurethane Bushings with Grease Fittings
• Uses OEM Hardware, installs in 20 minutes
• Brilliant Durable Powder Coat Finish

Tubular Non-Adjustable Lower Control Arms

Replace your weak, factory stamped rear lower control arms with UMI's heavy-duty tubular set up. These control arms are constructed of DOM mild steel tubing 1.625" OD x 0.120" wall thickness, CNC machined and fully TIG welded. Control arms are supplied with Energy Suspension polyurethane bushings and "on car" grease-able zerk grease fittings.

Lower control arms are a must upgrade for any 3rd or 4th generation F-body. These direct bolt-on replacements minimize wheel hop and improve cornering, while lowering track ETs and helping track consistency. Control arms come complete with polyurethane bushings, grease fittings, and zinc-plated steel sleeves.

Warranty: UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

Also available in Red Powdercoat:

Fitment Details
