UMI Performance 101417-R Ford Mustang Upper & Lower Adjustable Rear Control Arms - Red

1999 - 2004 Ford Mustang Upper & Lower Adjustable Control Arms
Red Powdercoat

Made in the USA!

• Applications:
• 1999 - 2004 Ford Mustang
• Will not fit 1999 - 2004 Cobra)

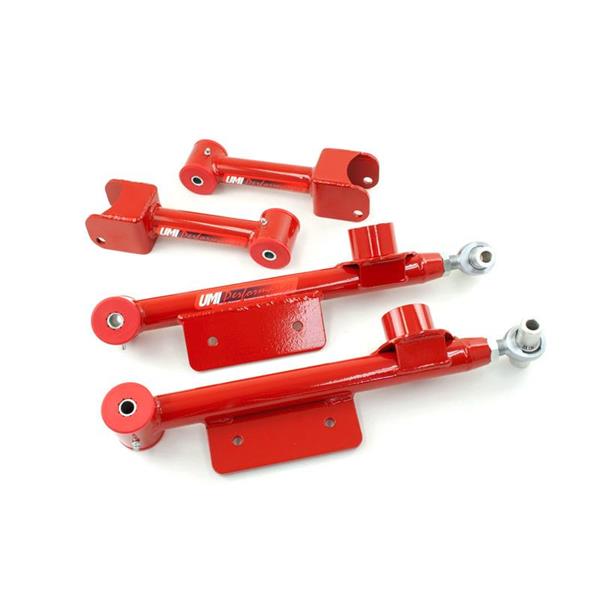

This complete kit includes (1) set of UMI Performance single adjustable lower control arms and (1) set of UMI's "on-car" double adjustable upper control arms. These direct bolt-on replacements are designed to minimize wheel hop, improve cornering while lowering ET's and help track consistency. The upper control arms feature on- car adjustability allowing for quick and easy pinion angle adjustment; its as simple as loosing 2 nuts! The spherical rod endallows for a "bind free" operation, making a great upgrade for both your track and auto cross driven vehicle. The polyurethane bushings are designed to be bolted to the chassis for a quiet comfortable operation. Lower Control arms are constructed DOM mild steel tubing 1.500" OD x 0.120" wall, 4130 chrome moly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. The upper control arms feature 0.250" mild steel mounting points, 4130 chrome moly tube adaptor and 4140 chrome moly heat treated 1.120" solid adjuster; truly overkill. Control arms feature Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on-car" grease able zerk grease fittings. Adjustments can be made using the high quality QA1 Teflon lined spherical rod end's that operate for a quiet bind free performance. These lower control arms feature reinforced spring perches and heavy duty sway bar mounting points.

• Features:
• 0.120" Wall Thickness DOM Mild Steel Tubing


• 4130 Chrome-Moly Threaded Tube Adapters


• 4140 Heated Treated Chrome-Moly Adjusters


• QA1 " Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod Ends


• Complete Kit Features Precision CNC Machining and Fully Welded


• CNC machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves


• Energy Suspension Fluted Polyurethane grease able Bushings


• Uses OEM Hardware

Installation:
Easy bolt-on installation in about 1 hour--no drilling required. Uses OEM hardware.

Warranty:
UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

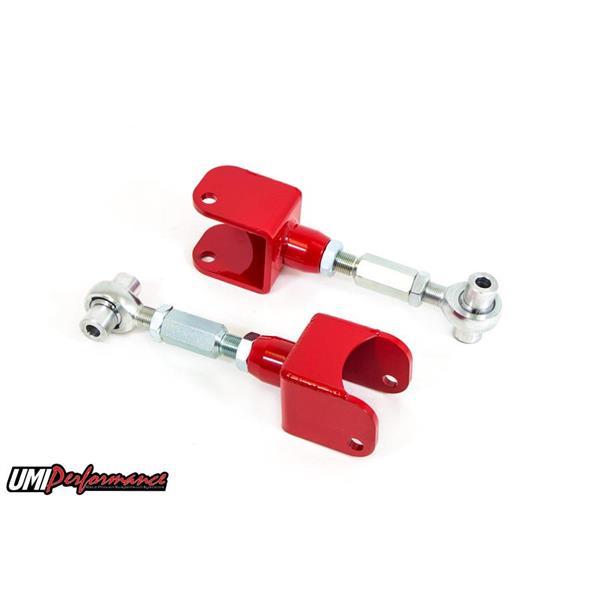

Adjustable Upper Control Arms "Ultimate Arms"

Adjustability is one the most important things when tuning in your street car's suspension. That is why UMI has taken the time to develop the ultimate "on-car" adjustable upper control arms for the rear on your Ford vehicle. There were no short cuts when manufacturing these arms, only the best materials and components money can buy were used to build These "Ultimate Arms". Well known weak areas where other manufactures use mild steel have been replaced with aircraft quality 4140 chrome moly steel featuring a TIG welded construction. The upper control arm mounting points feature CNC machined 0.250" mild steel, 4140 chrome moly tube adaptors and a high strength 4140 chrome moly heat treated 1.000" solid adjuster; truly overkill for any application!

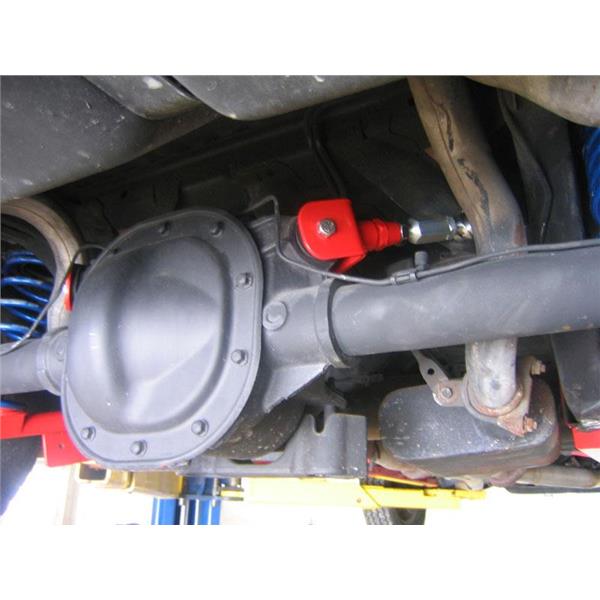

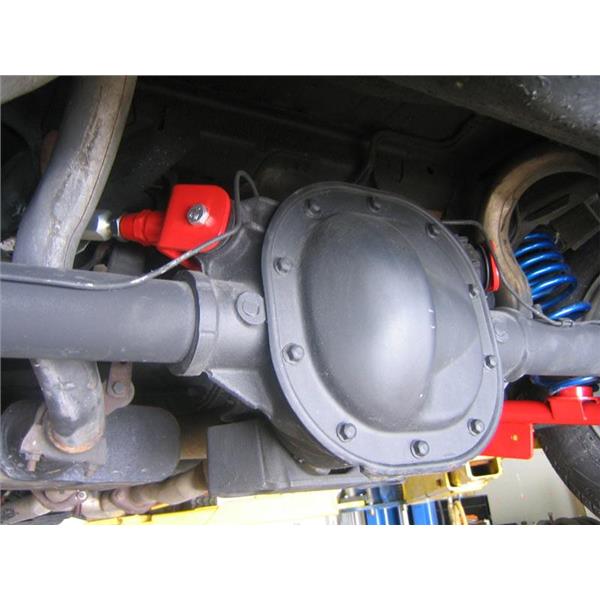

For ease of adjustment, UMI has designed these Ultimate Arms with on-car adjustability. You can easily make pinion angle adjustments in the garage or at the track; it's as simple as loosing 2 nuts! Using UMI's unique chrome moly on-car adjuster, simply turn the adjuster with the control arms on the car to quickly lengthen or shorten the control arm length. Pinion angle adjustments are a must when wanting to lower your track 60-foot times, increase traction and reduce unwanted wheel hop. The QA1 Teflon lined spherical rod end designallows for a bind free operation, making a great upgrade for both your track and auto cross driven vehicle.

• Features:
• On-Car Adjustability
• 4140 Chrome-Moly Threaded Tube Adapters
• 4140 Heated Treated Chrome-Moly Adjusters
• QA1 " Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod Ends
• Features Precision CNC Machining and Fully Welded
• CNC machined 6061 Aluminum Step Bushings
• Durable Long Lasting Powder Coat Finish

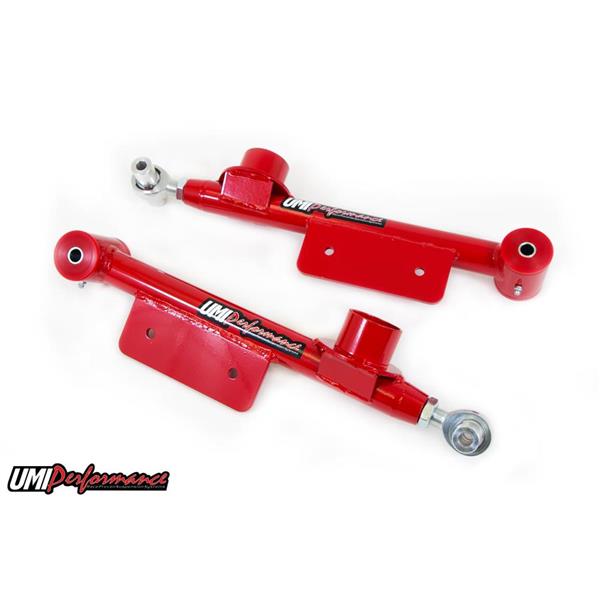

Single Adjustable Lower Control Arms

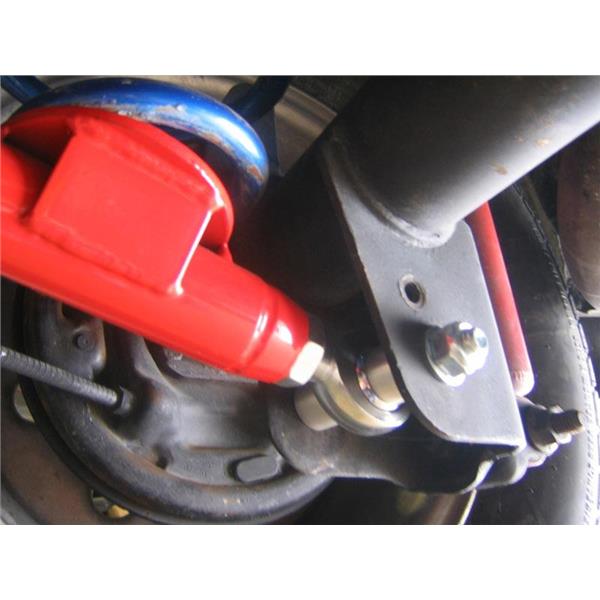

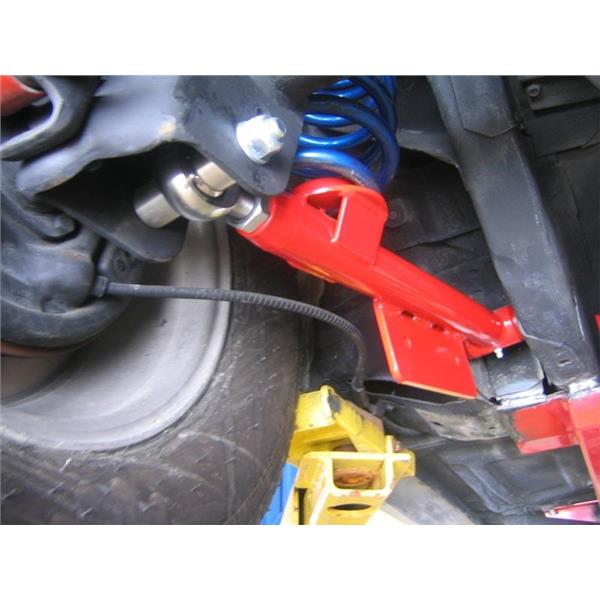

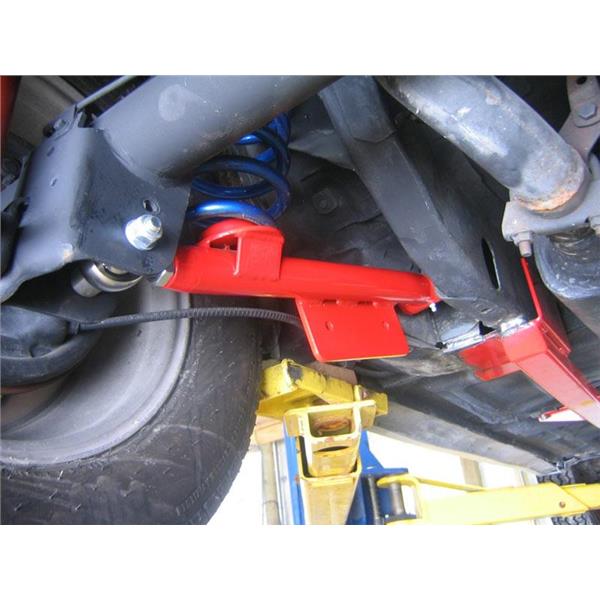

Replace your weak factory stamped lower control arms with UMI's heavy duty tubular adjustable setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and help track consistency. The spherical rod endallows for a "bind free" operation, making a great upgrade for both your track and auto cross driven vehicle. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed of DOM mild steel tubing 1.500" OD x 0.120" wall, 4130 chrome-moly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on-car" grease able zerk grease fittings. Adjustments can be made using the high quality QA1 Teflon lined spherical rod end that operates for a quiet bind free performance. These lower control arms feature reinforced spring perches and heavy duty sway bar mounting points.

• Features:
• 0.500" x 0.120" DOM Mild Stell Tubing
• 4130 Chrome-Moly Threaded Tube Adapter
• QA1 " Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End
• Complete Arm Features TIG Welded Construction
• CNC machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
• Energy Suspension Fluted Polyurethane grease able Bushings
• Uses OEM Hardware

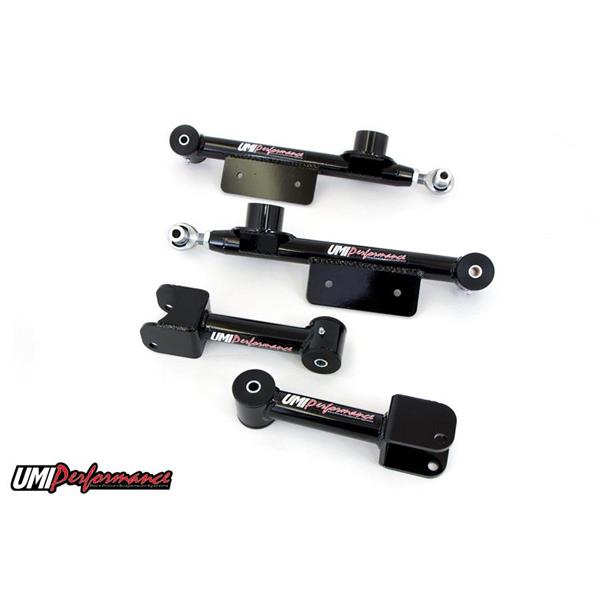

Also available in Black Powdercoat:
Click Here to see our other options

UMI Performance proudly designs and manufactures its entire line of products within its facility located in the small town of Philipsburg, Pennsylvania. The facility features CNC machining, both milling and turning CNC's, band sawing, press brake operation, MIG and TIG welding, sand blasting, plasma cutting and powder coating.
