Details

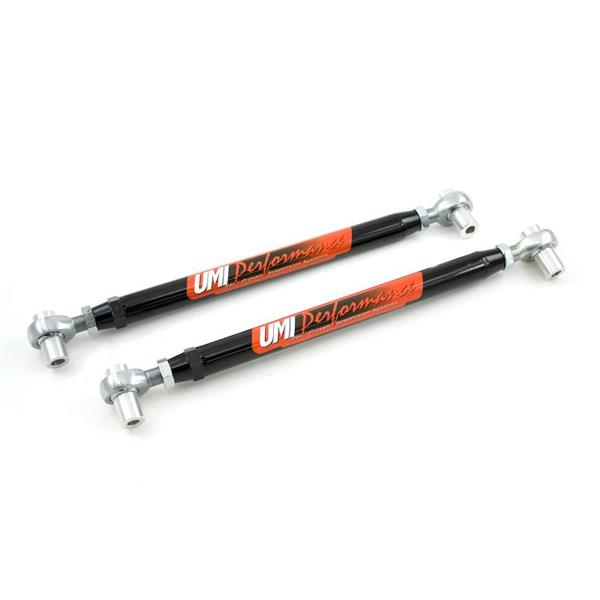

1964-1972 GM A-Body Adjustable Lower Control arms, Off Set Bushings, CrMo
UMI P/N 4023OFCM features off-set aluminum bushings and smaller diameter tubing that place the control arm inward for additional clearance when running large tires. This type of set-up is also needed when running a mini-tub to achieve the most clearance as possible. The supplied aluminum step bushings place the control arm inward 3/8 of an inch further then our standard control arm version. These double adjustable control arms are designed for race applications and light duty street use. The spherical rod ends offer a solid foundation and work excellent as a solid bushing control arm while eliminating rear suspension bind. The double adjustment allows easy on car changes for wider tire clearance and to center aftermarket rear ends. These race application control arms are manufactured from 4130 CrMo steel and TIG welded for the utmost in strength. The premium Teflon lined rod ends attach to the control arms using in-house machined 4130 CrMo tube adaptors. UMI P/N 4023OFCM allows adjustments of 1” longer or 1” shorter and are supplied pre-set to factory length. These race style control arms are designed for aftermarket sway bars that do not attach to the control arms; control arms are supplied with no sway bar holes.
Features:
TIG welded 1.250” x 0.095” 4130 CrMo tubing
Stronger & lighter than factory control arms
In-house machined 4130 CrMo tube adaptors for increased thread durability
¾” Teflon lined, high load capacity race rod ends, Teflon lined & self-lubricating
CNC machined light weight aluminum off set bushings
Brilliant durable red or black powder coat
Reuses factory hardware or purchase new hardware kit P/N 4001
Designed and manufactured with pride in Philipsburg, PA – USA
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1965 | Buick | Gran Sport | |||
1966 | Buick | Gran Sport | |||
1967 | Buick | Gran Sport | |||
1970 | Buick | GS | |||
1971 | Buick | GS | |||
1972 | Buick | GS | |||
1968 | Buick | GS 350 | |||
1969 | Buick | GS 350 | |||
1968 | Buick | GS 400 | |||
1969 | Buick | GS 400 | |||
1970 | Buick | GS 455 | |||
1971 | Buick | GS 455 | |||
1972 | Buick | GS 455 | |||
1964 | Buick | Skylark | |||
1965 | Buick | Skylark | |||
1966 | Buick | Skylark | |||
1967 | Buick | Skylark | |||
1968 | Buick | Skylark | |||
1969 | Buick | Skylark | |||
1970 | Buick | Skylark | |||
1971 | Buick | Skylark | |||
1972 | Buick | Skylark | |||
1964 | Buick | Special | |||
1965 | Buick | Special | |||
1966 | Buick | Special | |||
1967 | Buick | Special | |||
1968 | Buick | Special | |||
1969 | Buick | Special | |||
1964 | Buick | Sportwagon | |||
1965 | Buick | Sportwagon | |||
1966 | Buick | Sportwagon | |||
1967 | Buick | Sportwagon | |||
1968 | Buick | Sportwagon | |||
1969 | Buick | Sportwagon | |||
1970 | Buick | Sportwagon | |||
1971 | Buick | Sportwagon | |||
1972 | Buick | Sportwagon | |||
1964 | Chevrolet | Chevelle | |||
1965 | Chevrolet | Chevelle | |||
1966 | Chevrolet | Chevelle | |||
1967 | Chevrolet | Chevelle | |||
1968 | Chevrolet | Chevelle | |||
1969 | Chevrolet | Chevelle | |||
1970 | Chevrolet | Chevelle | |||
1971 | Chevrolet | Chevelle | |||
1972 | Chevrolet | Chevelle | |||
1964 | Chevrolet | El Camino | |||
1965 | Chevrolet | El Camino | |||
1966 | Chevrolet | El Camino | |||
1967 | Chevrolet | El Camino | |||
1968 | Chevrolet | El Camino | |||
1969 | Chevrolet | El Camino | |||
1970 | Chevrolet | El Camino | |||
1971 | Chevrolet | El Camino | |||
1972 | Chevrolet | El Camino | |||
1964 | Chevrolet | Malibu | |||
1965 | Chevrolet | Malibu | |||
1966 | Chevrolet | Malibu | |||
1967 | Chevrolet | Malibu | |||
1970 | Chevrolet | Monte Carlo | |||
1971 | Chevrolet | Monte Carlo | |||
1972 | Chevrolet | Monte Carlo | |||
1971 | GMC | Sprint | |||
1972 | GMC | Sprint | |||
1964 | Oldsmobile | 442 | |||
1965 | Oldsmobile | 442 | |||
1966 | Oldsmobile | 442 | |||
1967 | Oldsmobile | 442 | |||
1968 | Oldsmobile | 442 | |||
1969 | Oldsmobile | 442 | |||
1970 | Oldsmobile | 442 | |||
1971 | Oldsmobile | 442 | |||
1964 | Oldsmobile | Cutlass | |||
1965 | Oldsmobile | Cutlass | |||
1966 | Oldsmobile | Cutlass | |||
1967 | Oldsmobile | Cutlass | |||
1968 | Oldsmobile | Cutlass | |||
1969 | Oldsmobile | Cutlass | |||
1970 | Oldsmobile | Cutlass | |||
1971 | Oldsmobile | Cutlass | |||
1972 | Oldsmobile | Cutlass | |||
1964 | Oldsmobile | Vista Cruiser | |||
1965 | Oldsmobile | Vista Cruiser | |||
1966 | Oldsmobile | Vista Cruiser | |||
1967 | Oldsmobile | Vista Cruiser | |||
1968 | Oldsmobile | Vista Cruiser | |||
1969 | Oldsmobile | Vista Cruiser | |||
1970 | Oldsmobile | Vista Cruiser | |||
1971 | Oldsmobile | Vista Cruiser | |||
1972 | Oldsmobile | Vista Cruiser | |||
1969 | Pontiac | Grand Prix | |||
1970 | Pontiac | Grand Prix | |||
1971 | Pontiac | Grand Prix | |||
1972 | Pontiac | Grand Prix | |||
1964 | Pontiac | GTO | |||
1965 | Pontiac | GTO | |||
1966 | Pontiac | GTO | |||
1967 | Pontiac | GTO | |||
1968 | Pontiac | GTO | |||
1969 | Pontiac | GTO | |||
1970 | Pontiac | GTO | |||
1971 | Pontiac | GTO | |||
1972 | Pontiac | GTO | |||
1964 | Pontiac | LeMans | |||
1965 | Pontiac | LeMans | |||
1966 | Pontiac | LeMans | |||
1967 | Pontiac | LeMans | |||
1968 | Pontiac | LeMans | |||
1969 | Pontiac | LeMans | |||
1970 | Pontiac | LeMans | |||
1971 | Pontiac | LeMans | |||
1972 | Pontiac | LeMans | |||
1964 | Pontiac | Tempest | |||
1965 | Pontiac | Tempest | |||
1966 | Pontiac | Tempest | |||
1967 | Pontiac | Tempest | |||
1968 | Pontiac | Tempest | |||
1969 | Pontiac | Tempest | |||
1970 | Pontiac | Tempest |
