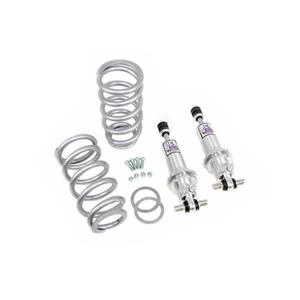

UMI Perf 59-64 GM B-Body Viking Fr Coil Over Kit Double Adjustable Polyurethane

$570.00
SKU: A207-550T

Availability: In stock

Details

1959-1964 GM B-Body Viking Front Coil Over Kit, Double Adjustable- Polyurethane
SKU: A207-550T

Viking’s front coilover kit combines a high quality hybrid spring with a 19-position double adjustable shock. The upper coil fits the upper spring perch on your vehicle while the lower part of the coil matches the coilover shock bottom. A coil spring compressor is not required, as the adjuster acts as the compressor. The optional thrust bearing and spanner wrenches allow for easy adjustment of ride height from factory to 3″ lowering. The shock itself has independent compression and rebound adjusters to allow custom tuning for street, strip, auto-x and road race – all in one shock. Viking coilovers work perfectly with UMI’s lower a-arm or your factory lower a-arm. Pair with UMI’s geometry corrected upper a-arm loaded with a tall ball joint and head for the nearest high speed corner, 1/4 mile track or weekly cruise.

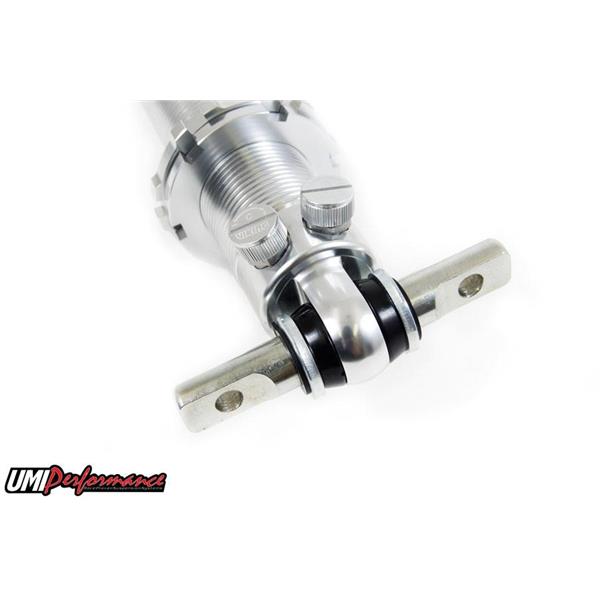

Polyurethane Shock Mount: Viking offers two mounting options for the lower shock attachment points. Mild street applications can use polyurethane for ride comfort and reduced harshness. Corner carving, drag racing, auto-x and road race should choose bearing ends for increased reliability and performance. By their very nature, performance parts both in poly and bearing, tend to feel and sound different than rubber mounted factory parts. UMI is not responsible for poly bushing damage when used in performance applications.

Value added features include:

  • Hybrid coil spring Made in USA
  • Brilliant protective finish ensures your springs stay nice for years
  • Choose spring rates for drag, street or road race/auto-x
  • 19 way adjustable compression and rebound damping shock suits all occasions (361 possible combinations)
  • Every shock is built, dyno tested and serialized in Lakeville, Minnesota
  • Shocks can be rebuilt at Viking or an authorized Viking rebuild center (call for details)

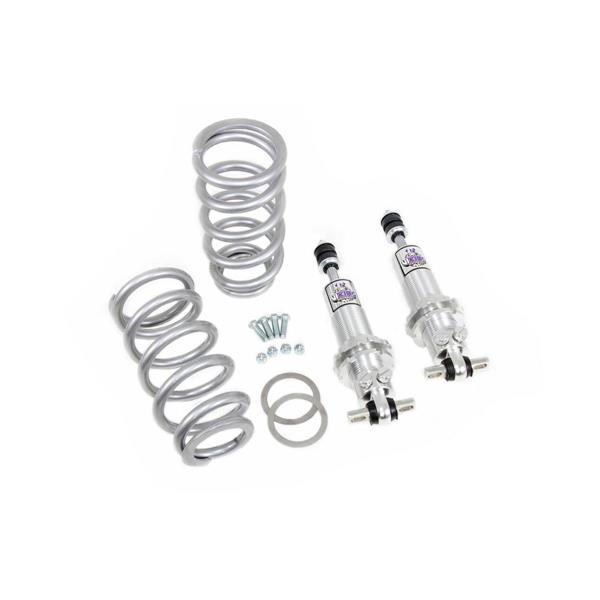

Kit Includes:

  • (2) Front coil over shocks, double adjustable
  • (2) Front springs with choice of 250, 350, 450 or 550 spring rate

Spanner Wrench & Thrust Bearing Kit: Spanner wrench tool is used to adjust vehicle height while shock stays mounted. This wrench is needed to make height adjustments. The thrust bearing kit is designed to be placed between the spring and the spring seat attached to the shock. This makes for easier adjustments since the spring seat is rotating on a bearing. This kit is recommended for easier adjustments but is not needed to complete the installation. We do not recommend adjusting without a thrust bearing kit.

Front Spring Rate Options:
450lb- For small block vehicles
550lb- For big block vehicles

Fitment Details

Year Make Model Trim Engine Notes
1958 Chevrolet Bel Air
1959 Chevrolet Bel Air
1960 Chevrolet Bel Air
1961 Chevrolet Bel Air
1962 Chevrolet Bel Air
1963 Chevrolet Bel Air
1964 Chevrolet Bel Air
1958 Chevrolet Biscayne
1959 Chevrolet Biscayne
1960 Chevrolet Biscayne
1961 Chevrolet Biscayne
1962 Chevrolet Biscayne
1963 Chevrolet Biscayne
1964 Chevrolet Biscayne
1958 Chevrolet Impala
1959 Chevrolet Impala
1960 Chevrolet Impala
1961 Chevrolet Impala
1962 Chevrolet Impala
1963 Chevrolet Impala
1964 Chevrolet Impala
