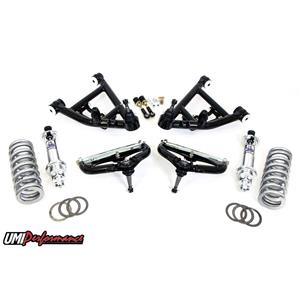

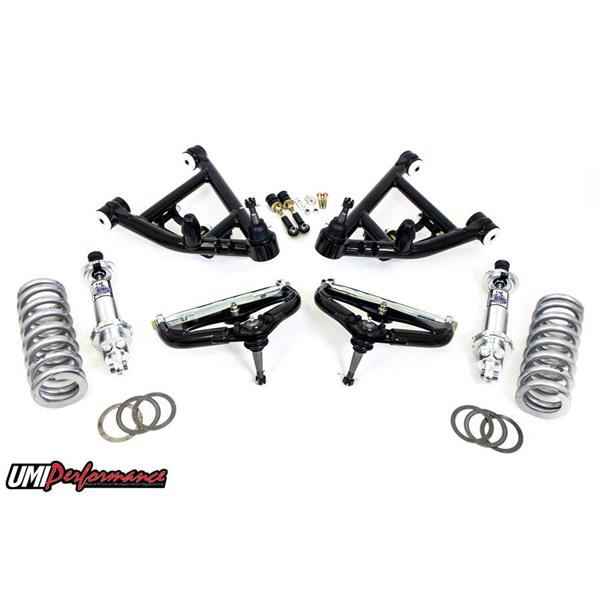

UMI Perf 1978-1988 GM G-Body 1982-2003 S10/S15 Front End Kit 850lb Springs Race

$2,029.99
SKU: 3059-4-B

Availability: In stock

Details

1978-1988 GM G-Body, 1982-2003 S10/S15 Front End Kit, 850lb Springs, Race
SKU: 3059-4-B

Tremendous front grip and a host of features can be yours with UMI’s complete front end Grip Kit. The included a-arm kit enables 10 degrees caster while maintaining standard track width and wheelbase. Lower a-arms are assembled with tall lower ball joints to optimize roll center, camber gain, and center of gravity. Lower a-arms feature Delrin bushings for smooth travel and bind free performance. The new lower a-arm works in conjunction with the included adjustable upper arm which features minimum shim adjustability, Proforged ball joints, and super smooth Teflon lined rod ends. The front sway bar attaches using UMI’s swivel style end link design and double shear mounting system. The included Viking Crusader coilover shocks mount to the lower a-arm in double shear quick change brackets. The lower shock mount is removable to allow spring and shock changes at the track. UMI’s kit features Viking Crusader shocks with AT pro-touring valving (high rebound tie down for road race and auto-x) and a true 2-1/2” racing coilover. The upper stud mount fits in factory location while the lower is optimized to fit UMI’s 3057-1 coilover lower a-arm.  Some grinding is required for installation in the upper frame spring bucket.  Other spring rates and valve codes are available. Battle tested on the iconic UMI Green Machine. Kit is available in UMI red or black powder coat. 100% designed, manufactured and raced with pride in the USA.

Performance note: UMI recommends adding the P/N 3060-1 bump steer kit for optimal performance.

Features:

  • Total of 10 degrees caster potential while maintaining spindle pin location.
  • Upper ball joint moved rearward to add 5-6 degrees caster potential.
  • Lower ball joint relocated forward to increase caster 4-5 degrees which improves steering feel and straight line stability.
  • Viking double adjustable Crusader coilover shocks with pro-touring valving.
  • Ride height adjustment using coilover shocks.
  • Rod ends feature superior friction reduction for quick response
  • Adjustable upper a-arm uses rod ends for easy alignment.
  • UMI built Delrin bushings improve steering response and reduce deflection.
  • Taller upper ball joints to improve camber gain, optimize roll center and improve traction during cornering.
  • Upper and lower a-arms built from USA Made DOM steel tubing.
  • Removable double shear mount to allow spring/shock replacement without removing spindle.
  • Mount spacing suitable for Afco, Viking, Ridetech and many other aftermarket manufacturers shock/spring combos.
  • Adjustable steering stop.
  • Double shear swivel sway bar mounts and hardware work with UMI P/N 3035 and most other factory eyelet style sway bars.

Standard Spindle Vehicles

Kit Specifications:

Kit # 3059-4

  • P/N 3057-1  Coilover lower A-Arms, Standard Lower ball joint, Derlin bushings, quick change shock mount.
  • P/N 3056-3  Adjustable upper A-Arms, +1″ Upper  ball joint, rod ends.
  • (2) Viking Crusader double adjustable shocks, AT pro-touring valving.
  • (2) Front springs, 10″ 850lb rate for race use.
  • Thrust bearing kit for easy height adjustments.

Fitment Details

Year Make Model Trim Engine Notes
1978 Buick Regal
1979 Buick Regal
1980 Buick Regal
1981 Buick Regal
1982 Buick Regal
1983 Buick Regal
1984 Buick Regal
1985 Buick Regal
1986 Buick Regal
1987 Buick Regal
1978 Chevrolet El Camino
1979 Chevrolet El Camino
1980 Chevrolet El Camino
1981 Chevrolet El Camino
1982 Chevrolet El Camino
1983 Chevrolet El Camino
1984 Chevrolet El Camino
1985 Chevrolet El Camino
1986 Chevrolet El Camino
1987 Chevrolet El Camino
1978 Chevrolet Malibu
1979 Chevrolet Malibu
1980 Chevrolet Malibu
1981 Chevrolet Malibu
1982 Chevrolet Malibu
1983 Chevrolet Malibu
1978 Chevrolet Monte Carlo
1979 Chevrolet Monte Carlo
1980 Chevrolet Monte Carlo
1981 Chevrolet Monte Carlo
1982 Chevrolet Monte Carlo
1983 Chevrolet Monte Carlo
1984 Chevrolet Monte Carlo
1985 Chevrolet Monte Carlo
1986 Chevrolet Monte Carlo
1987 Chevrolet Monte Carlo
1988 Chevrolet Monte Carlo
1982 Pontiac Bonneville
1983 Pontiac Bonneville
1984 Pontiac Bonneville
1985 Pontiac Bonneville
1986 Pontiac Bonneville
1978 Pontiac Grand Prix
1979 Pontiac Grand Prix
1980 Pontiac Grand Prix
1981 Pontiac Grand Prix
1982 Pontiac Grand Prix
1983 Pontiac Grand Prix
1984 Pontiac Grand Prix
1985 Pontiac Grand Prix
1986 Pontiac Grand Prix
1987 Pontiac Grand Prix
