UMI 93-02 GM F Body SB Front Control Arms Kit & Viking Coilover Shock

To make sure you receive your package, all items $500 and over are sent signature required

Please be advised that this "KIT" item will ship from TWO DIFFERENT LOCATIONS and you will recieve multiple boxes

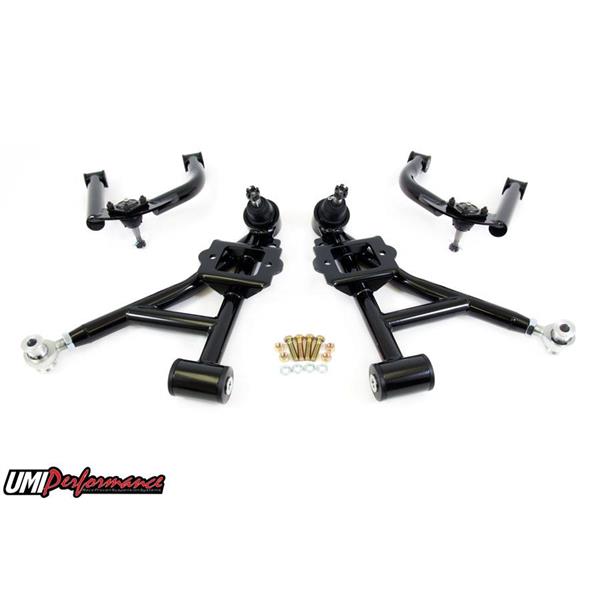

UMI Performance Tubular Upper & Lower Front A-Arm Kit
Black Powdercoat

Vi-King Front Coil Over Shock Kit

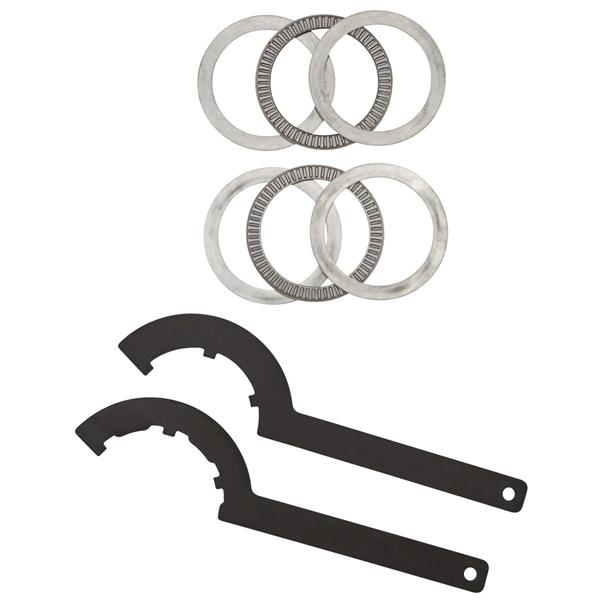

With Adjuster Bearings and Spanner Wrench

Made in the USA!

• Application:
• 1993-2002 Chevrolet Camaro / Pontiac Firebird
  • andling Package

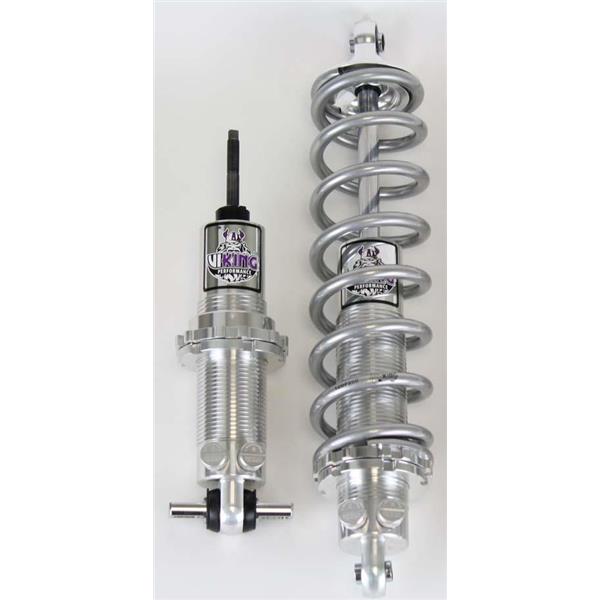

Vi-King Performance Double Adjustable Front Coil Over
450 Spring Rate

This item will ship directly from Vi-King Performance in Minnesota!

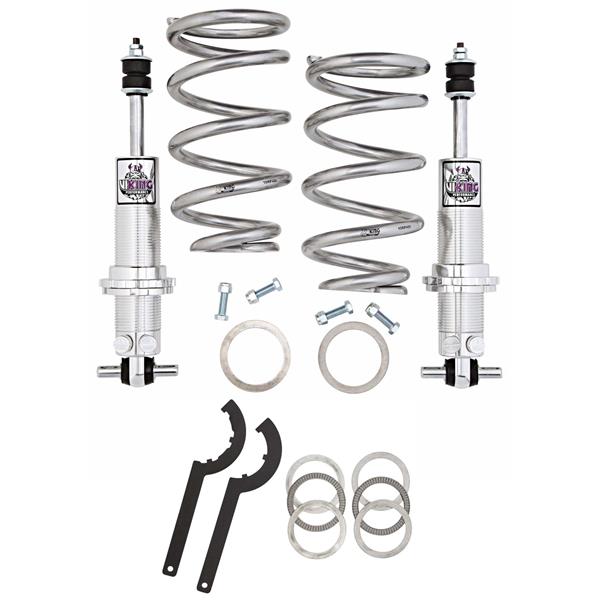

This front coil-over kit from Vi-King Performance comes with A226 double adjustable shocks, 350lb coil-over springs, and Spanner Wrench!

This kit is designed for Handling use! If you can't find the right kit for you, or have questions on which setup is best for your application, contact us and we'll be happy to see if we can put a kit together to fit your needs.

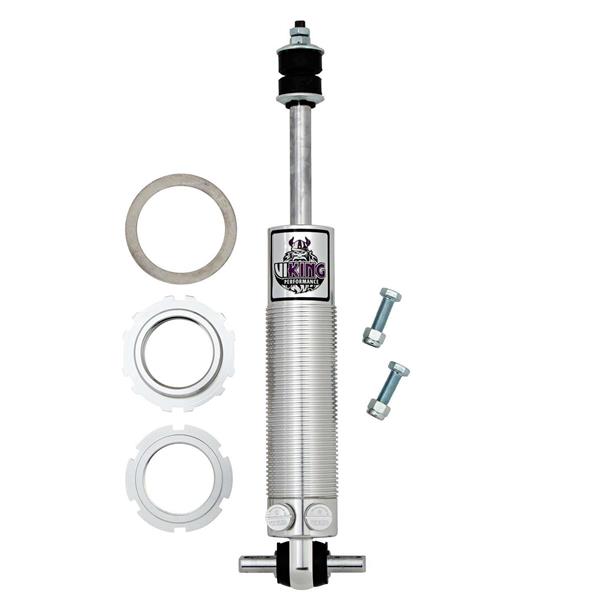

• About The A226 Vi-King Shocks
• Double Adjustable
• Upper Mount: Stud
• Power Mount: T-Bar
• Compressed Height: 14.22"
• Extended Height: 19.52"
• Shock Stroke: 5.30"
• Recommended Ride Height: 16 3/8"-17 3/8"

All Vi-King shocks are double adjustable allowing the user to independently adjust compression and rebound

Huge adjustment rangeallows the user to adjust settings for a comfortable cruising to high performance racing, and everything in between

Evenly spaced valving adjustments from click to click

19 positions of compression adjustment and 19 positions of rebound adjustment for a total of 361 different valving combinations

Lightweight aluminium twin-tube design with a sleek clear anodized finish

Adjustment knobs: Labeled with a "C" for compression and an "R" for rebound

Ride height adjustable. Increased range of ride height adjustment over most other brands. Tight tolerances on threads provides for easier ride height adjustments. Left hand threads between the base and the body ensures that the shock doesn't come apart when adjusting ride height, as can occur with certain other brands

Aluminium, precision machined piston with deflective disc technology and a PTFE / bronze piston seal

Three-step sealing system

5/8" hard chrome plated, centerless ground piston rod

Each shock is dyno tested and serialized (individual serial # on each shock)

All shocks can be rebuilt or revalved by the Vi-King factory or any authorized re-builder

Two year materials and workmanship warranty!

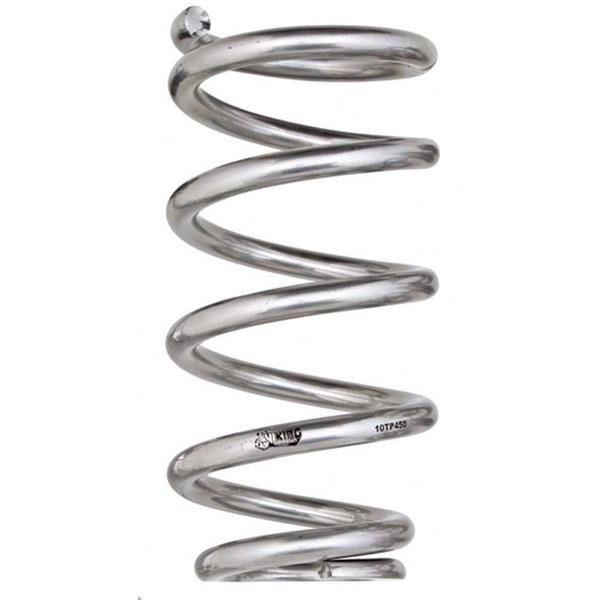

• Coil Springs
• Ultra-lightweight
• Bigh travel
• High tensile spring steel
• Manufactured to precision tolerances
• Lifetime guaranteed to remain within 2% of the original free height and rate
• Made in the U.S.A.

• About The 350 Vi-King Springs
• 50lb Rate
• Free Length: 14"
• Powder Coated with a Chrome Appearance

Vi-King's ultra-lightweight, high travel springs are designed with an expanded body diameter for unsurpassed performance. Over a 25% weight savings over some other brands in the market!

Manufactured from high tensile spring steel with a sleek silver powder coat finish as standard!

Lengths and rates are clearly marked on springs

Lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. With Vi-King you will not get overlapping spring rates, like you may with manufacturers that only hold a 5% tolerance (a 2 1/2 times larger tolerance window than Vi-King!)

Due to differences in Handling Behavior Vi-King has different part #'s for different Applictions.

• 50
• Small Block: Xtreme Light
• 200
• Small Block: Drag Race
• 50
• Small Block: Handling
• 50
• Small Block: Xtreme Heavy
• </UL

Please Click Here to see all the options for this kit.

These spring rates are based off of stock suspension height and weight ratio's. If you have modified your motor / front end to lighten it (Aluminum Heads, Aluminum Serpentine, A/C Delete etc...) you will want a lower spring rate.

Please feel free to contact us to review what Spring Rate would be best for your application.

Images may not be for your exact application, but have the same appearance as the parts listed.

Vi-King Performance inc.specializes in rod end and spherical bearings, high performance shock absorbers, high travel coil springs, and related suspension components. Vi-King was founded in February, 2011, but its owners are anything but new to the industry. Between them, they have over 50 years of hands-on experience in the racing and performance aftermarket.

Vi-King conducts all research and development, data acquisition, engineering, prototyping, shock assembly, dynomometer testing, pull testing, and select manufacturing in-house in our 25,000 sq. ft. facility. Vi-King's in-house engineering and product development teamallows us to react quickly to changing market conditions, and our team members are all active enthusiasts and/or racers. They understand what you need from a performance company, and provide it with exceptional products, technical support and customer service.
