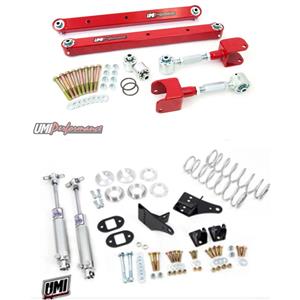

UMI 78-87 Regal El Co G-Body Rear Suspension Kit Control Arms & Coilovers Red

To make sure you receive your package, all items $500 and over are sent signature required

1978 - 1987 GM G-Body

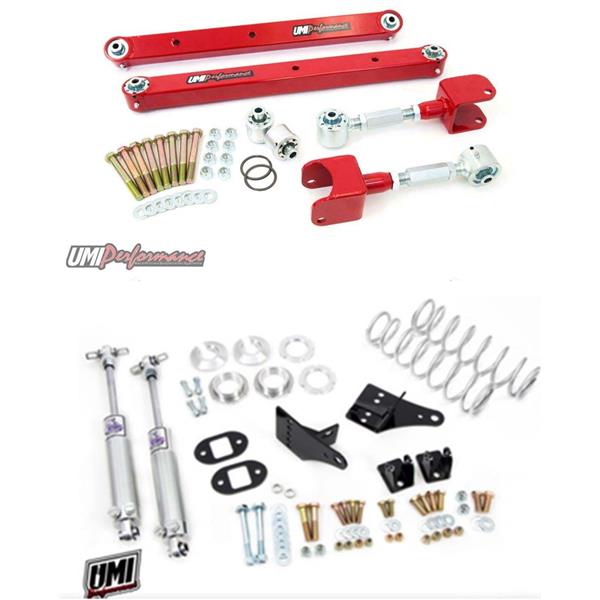

UMI Performance Pro-Touring Rear Suspension Kit
Red Powdercoat
Vi-King Double Adjustable Rear Coil Overs

Made in the USA!

• Applications:
• 1978 - 1987 Chevrolet Monte Carlo, Malibu, El Camino
• 1978 - 1987 Buick Regal, Grand National
• 1978 - 1987 Pontiac Grand Prix, LeMans
• 1978 - 1987 Oldsmobile Cutlass

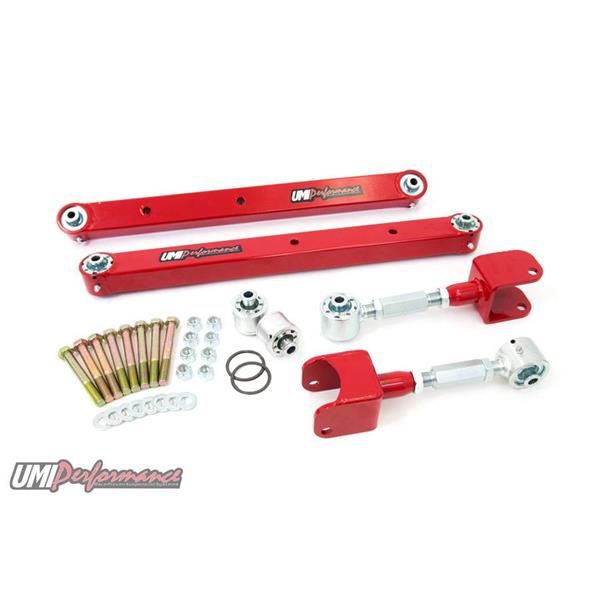

UMI's new pro-touring kit features all of their top of the line Pro-Tour style components in one convenient package. The lower arms are loaded with Roto-Joints on each end and feature TIG welded sway bar sleeves along with the awesome articulation of the double Roto-Joints. The upper arms have Roto-Joints on one end and are fully adjustable to set pinion angle and lateral location. The new Roto-Joint axle housing bushing completes the package and ensures bind-free articulation. This 8 Roto-Joint package is the ultimate combination of street comfort and race winning capability. For Pro-Tour cars that see highway use, this kit is like having rod end suspension that just happens to be comfortable. Kit includes boxed lower control arms with Roto-Joints, adjustable upper control arms with Roto-Joints, Roto-Joint rear end housing bushings and grade 8 bolts with nylock nuts. 100% manufactured with pride in Philipsburg, PA - USA.

Spanner Wrench-
The Spanner wrench is used for adjusting and disassembling UMI Roto-Joints. Over time the Delrin race inside the Roto-Joint may wear, the spanner wrench is used to tighten the adjusting ring applying more pressure to the delrin inside. The spanner wrench is also used to disassemble the Roto-Joint for cleaning, inspection and rebuilding.

Warranty: UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

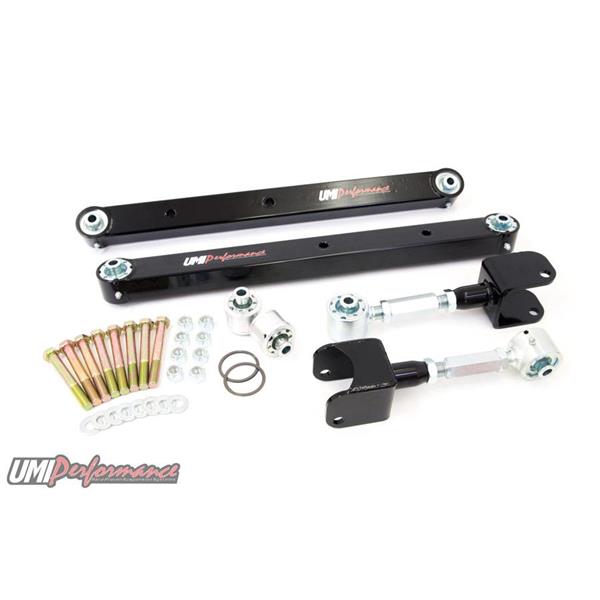

Also available in Black Powdercoat:
Click Here to see our other options

UMI Performance proudly designs and manufactures its entire line of products within its facility located in the small town of Philipsburg, Pennsylvania. The facility features CNC machining, both milling and turning CNC's, band sawing, press brake operation, MIG and TIG welding, sand blasting, plasma cutting and powder coating.

They offer many different levels of their product.
Please Click Here to see our other items from UMI Performance

We recommend narrowing the results by entering
YOUR Vehicle's Year, Make, and Model
in the "Store Search" area on the left.

This item will ship directly from Vi-King Performance in Minnesota!

Made in the USA!

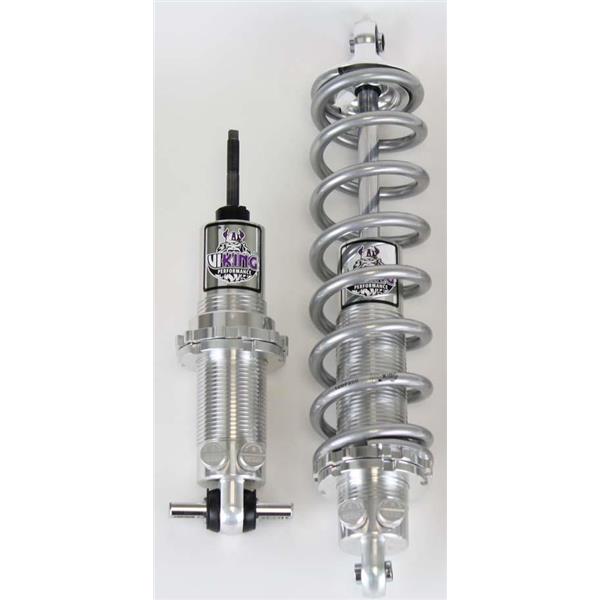

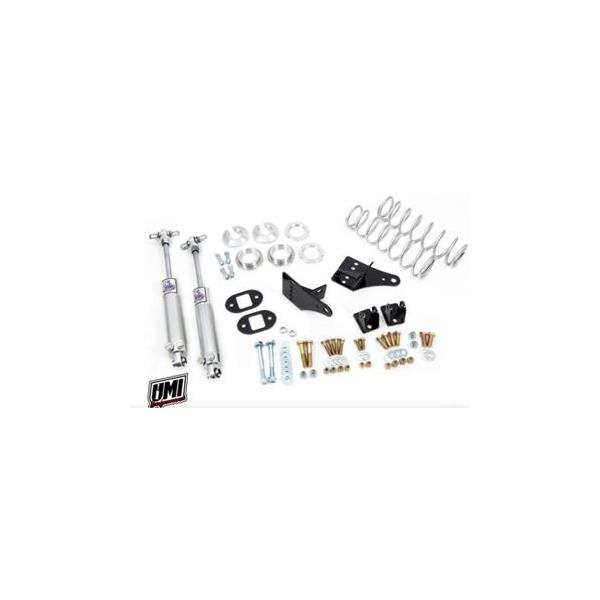

Vi-King Performance Rear Coil Over Package

• Kit Includes:
• 2) Coil-Over Double Adjustable Shocks
• 2) Light-Weight, High Travel Coil Over Springs
• Rear High Quality Coil-Over Conversion Mounting Brackets

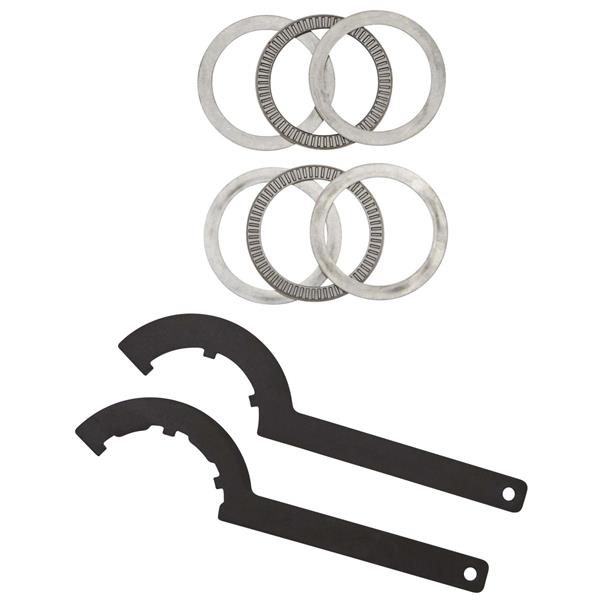

• panner Wrenches & Thrust Bearings
• Mounting Hardware

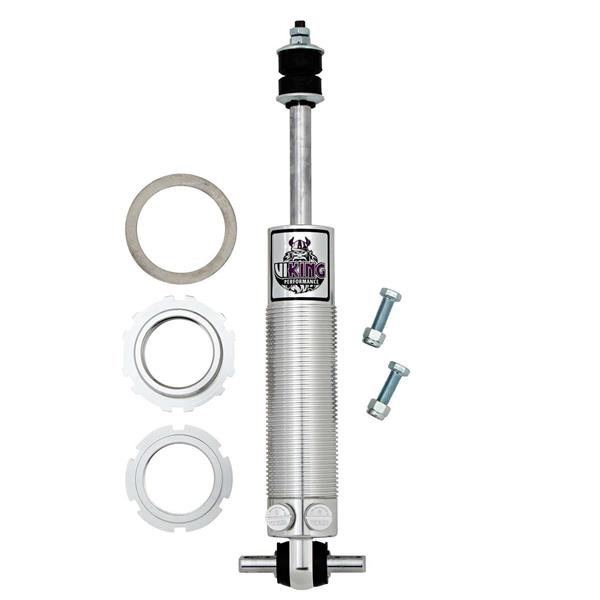

All Vi-King shocks are double adjustable allowing the user to independently adjust compression and rebound

Huge adjustment rangeallows the user to adjust settings for a comfortable cruising to high performance racing, and everything in between

Evenly spaced valving adjustments from click to click

19 positions of compression adjustment and 19 positions of rebound adjustment for a total of 361 different valving combinations

Lightweight aluminium twin-tube design with a sleek clear anodized finish

Adjustment knobs: Labeled with a "C" for compression and an "R" for rebound

Ride height adjustable. Increased range of ride height adjustment over most other brands. Tight tolerances on threads provides for easier ride height adjustments. Left hand threads between the base and the body ensures that the shock doesn't come apart when adjusting ride height, as can occur with certain other brands

Aluminium, precision machined piston with deflective disc technology and a PTFE / bronze piston seal

Three-step sealing system

5/8" hard chrome plated, centerless ground piston rod

Each shock is dyno tested and serialized (individual serial # on each shock)

All shocks can be rebuilt or revalved by the Vi-King factory or any authorized re-builder

Two year materials and workmanship warranty!

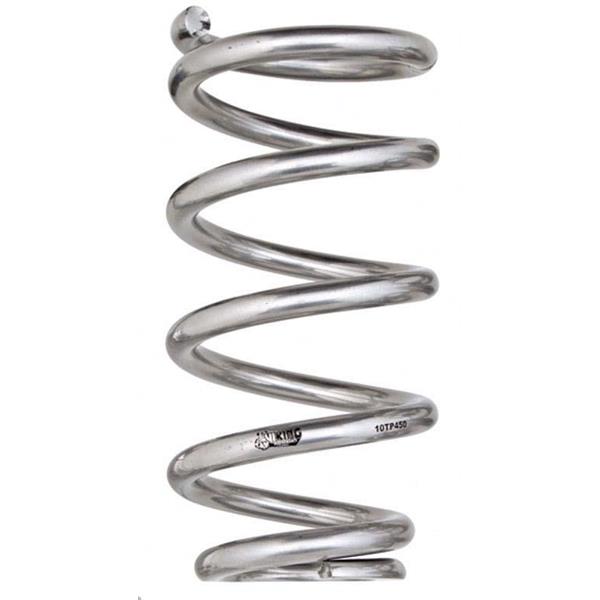

• Coil Springs
• Ultra-lightweight
• Bigh travel
• Bigh tensile spring steel
• Manufactured to precision tolerances
• Lifetime guaranteed to remain within 2% of the original free height and rate
• Made in the U.S.A.

Vi-King's ultra-lightweight, high travel springs are designed with an expanded body diameter for unsurpassed performance. Over a 25% weight savings over some other brands in the market!

Manufactured from high tensile spring steel with a sleek silver powder coat finish as standard!

Lengths and rates are clearly marked on springs

Lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. With Vi-King you will not get overlapping spring rates, like you may with manufacturers that only hold a 5% tolerance (a 2 1/2 times larger tolerance window than Vi-King!)
