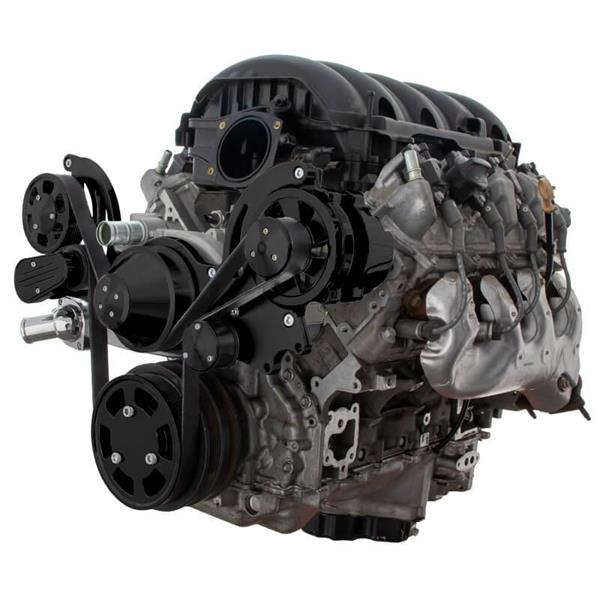

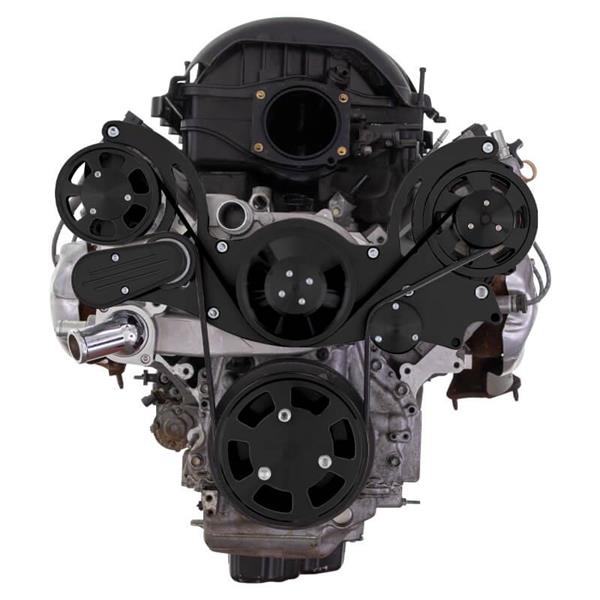

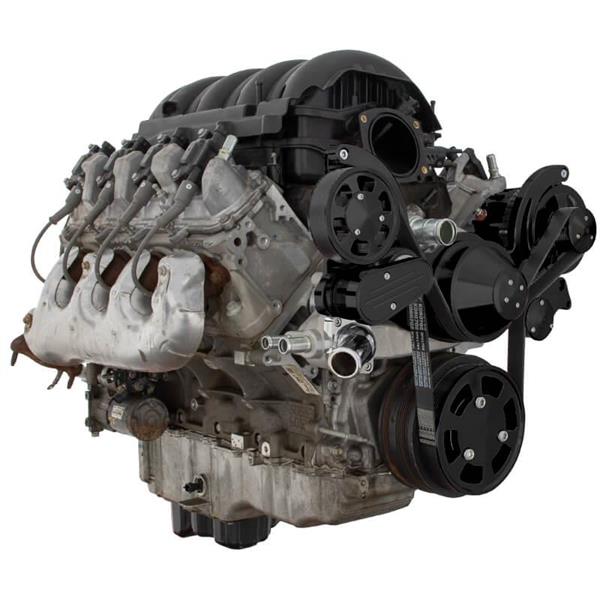

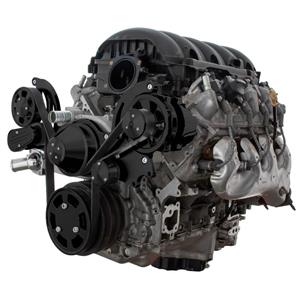

Stealth Black LT1 GENERATION V Engine Serpentine Conversion Kit
Alternator
All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy LT1 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Black 1-Wire CS130 Alternator
- Remote Mount Reservoir with Bracket
- Gates Premium Green Strip 8 Rib Belt
- Crank Pulley
- Crank Pulley Spacer
- Alternator Pulley & Cover
- One Piece Billet Aluminum Bracket
- Water Pump Bracket Adaptor
- Universal Alternator Fan
Application Notes:
- Works with Chevy LT1 engines from 2013+
- Kit requires the balancer from L83 and L86 LT1 Trucks
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - Reverse Rotation, 6.5" Hub Height, .75" Pilot with Lower Radiator Hose on Passenger Side
