Details

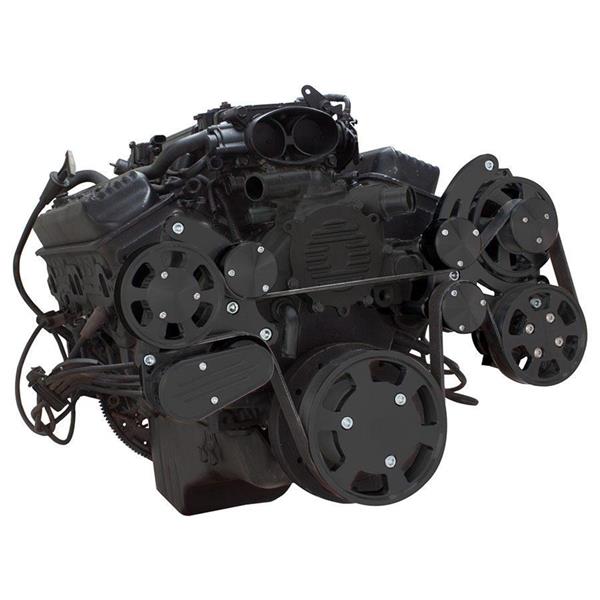

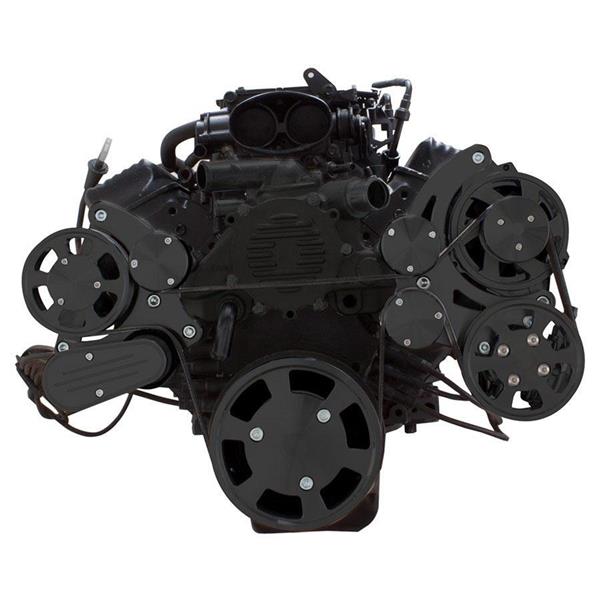

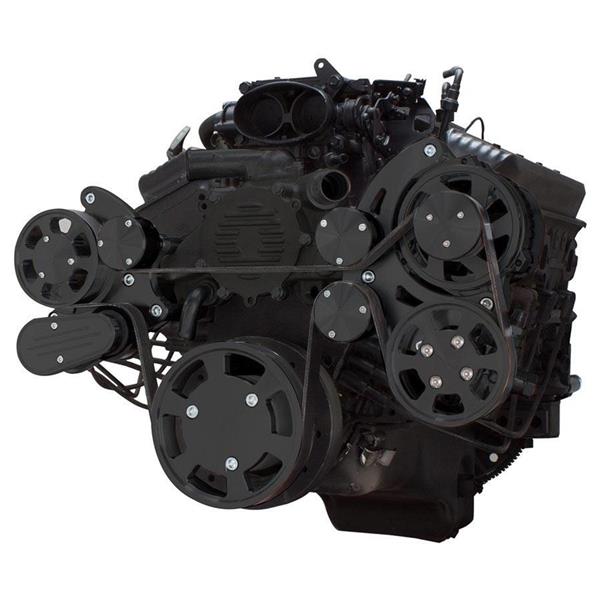

Stealth Black LT1 GENERATION II Engine Serpentine Conversion Kit
Power Steering and Alternator
All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy LT1 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Black 1-Wire CS130 Alternator
- Black Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket
- Gates Premium Green Strip 8 Rib Belt
- Crank Pulley
- Crank Pulley Spacer
- Alternator Pulley & Cover
- Power Steering Pulley
- Two Piece Billet Aluminum Bracket
- Universal Alternator Fan
Application Notes:
- Works with Chevy LT1 engines from 1992 - 1997
- Fits with multiple crank hub lengths
- Corvette, Camaro and Firebird water pumps are preferred for optimal compatibility if you prefer to use your existing water pump.
- Compatible with Hydroboost
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 5.62" Tall, Clockwise Rotation, 5/8" Pilot and Lower Radiator Hose on Passenger Side
