Serpentine System for 396, 427 & 454 Supercharger - Alternator Only with Electric Water Pump

$1,795.00
SKU: 454SC-WRAPTOR-ALT-EWP

Availability: In stock

Handling Time: 30 Days

Details

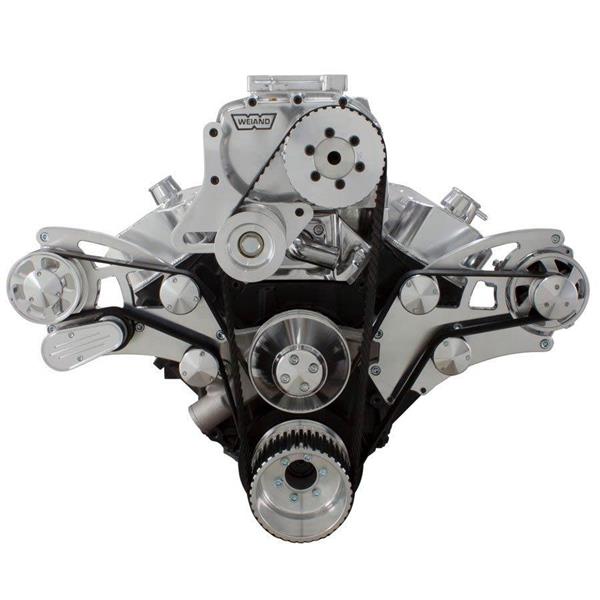

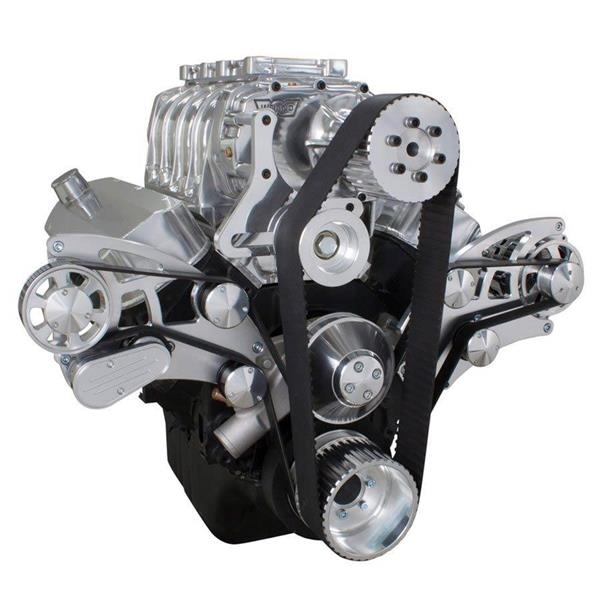

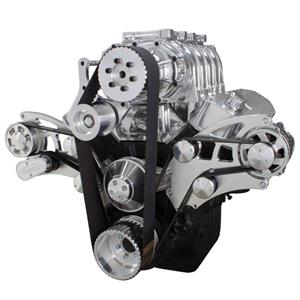

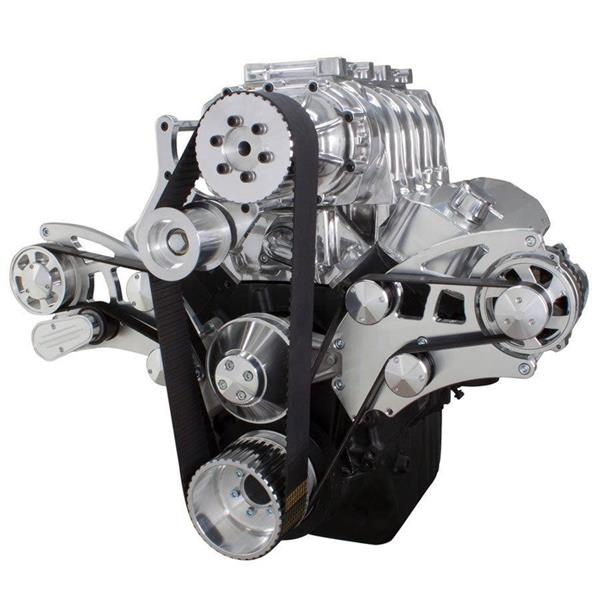

Big Block Chevy 396, 427 and 454 Supercharger Engine Serpentine Conversion Kit
Alternator Only - Root Style Blower

All Inclusive WRAPTORTM 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:
  • 140 Amp Chrome 1-Wire CS130 Alternator
  • Gates Premium Green Strip 8 Rib Belt
  • Crank Pulley - Polished Billet Aluminum
  • Alternator Pulley & Cover - Polished Billet Aluminum
  • AC Delete Idler Pulley & Bracket - Polished Billet Aluminum
  • Two Piece Billet Aluminum Bracket - Polished Billet Aluminum
  • Universal Alternator Fan - Polished Billet Aluminum
Application Notes:
  • Upgrade to Power Steering Only Requires Pump, PS Pulley and Belt Purchase.
  • Upgrade to A/C Only Requires Compressor Purchase.
  • Works with either Mechanical or Electric fuel Pump
  • Works with Electric fan
  • Works with Standard Deck Engines (will not work with Tall Deck Engines)
  • Call for verification on Blower Crank Pulley
  • Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
  • Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
