Details

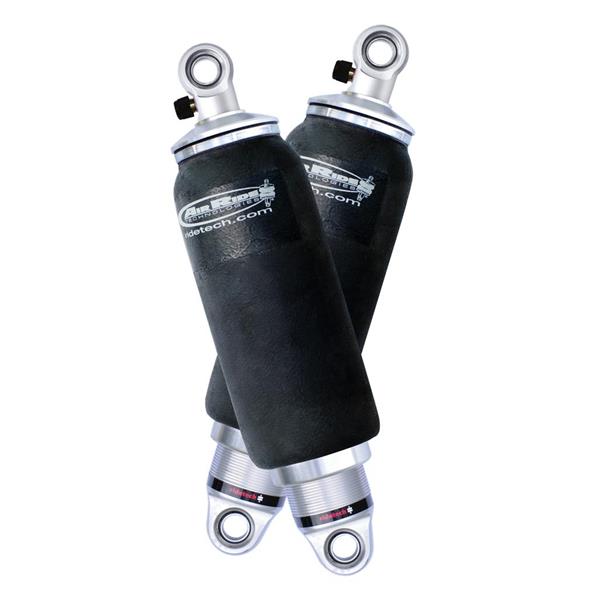

RideTech Universal ShockWave 8000 Series - Pair
SKU: 21170801
HQ Series ShockWaves, 6.9" travel, 5" dia. rolling sleeve, .625" bearing/.625" bearing
The 8000 ShockWave Series
| Compressed
Height |
Ride
Height |
Extention | Stroke | Mounting | Part # |
|---|---|---|---|---|---|
| 10.75" | 12.83" | 14.22" | 4.1" | Eye / Eye | 21140801 |
| 11.05" | 13.13" | 14.52" | 4.1" | Stud / Eye | 21140805 |
| 11.85" | 14.6" | 16.42" | 5.2" | Eye / Eye | 21150801 |
| 12.15" | 14.9" | 16.72" | 5.2" | Stud / Eye | 21150805 |
| 12.95" | 16.35" | 18.62" | 6.3" | Eye / Eye | 21160801 |
| 13.25" | 16.65" | 18.92" | 6.3" | Stud / Eye | 21160805 |
| 13.75" | 17.51" | 20.02" | 6.9" | Eye / Eye | 21170801 |
| 14.05" | 17.81" | 20.32" | 6.9" | Stud / Eye | 21170805 |
Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work with just about whatever setup you’re using. Whether you’re replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.
Recommended Applications:
Solid rear axle: Rear axle weight is less than 2,000lbs.
NOT recommended for IFS installations ... not enough load capacity

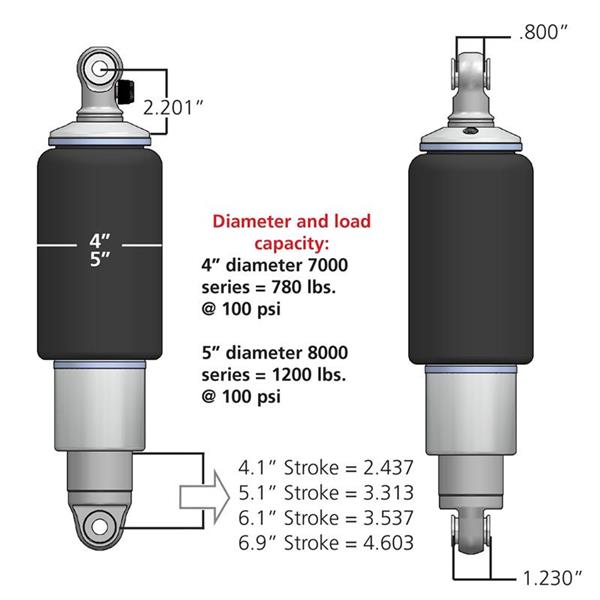

Diameter and load capacity: 5" diameter 8000 series = 1,200 lbs. @ 100 psi
Handling Quality Series
The Handling Quality ("HQ") Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
- Completely redesigned internal design
- Aluminum construction
- Single adjustable shock valving
- Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
- Impact forged body / mono-tube design for superior ride quality and durability
- Easy & precise valve adjustment with 24 rebound clicks
