Details

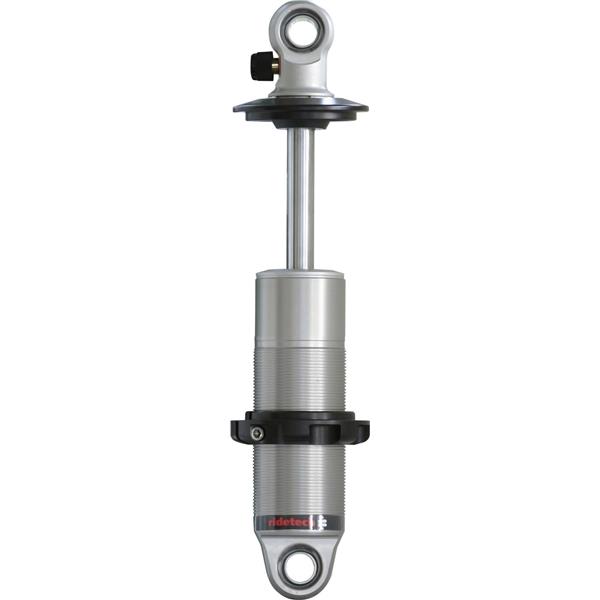

RideTech Universal HQ Series Coilover Shock - Single Adjustable - Each
SKU: 24179901
HQ CoilOver Shock, 6.9" Travel for 2.5" I.D. Coil. Single-Adjustable. Eye/Eye Mounting. 13.125"/20.025". Includes Coil Kit. Sold EACH.
HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech's world class technical support and a million and one mile warranty. We're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
FEATURES:
- Mono tube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834" piston significantly larger than twin tube pistons.
- Heavy duty 5/8" chromed shaft.
- Bodies are anodized for long lasting corrosion resistant appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
Sold Individually
Included Components
1- Aluminum mono tube shock with threaded body
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2
Coil-over Dimensions
| Shock | Mounting | Compressed | Ride | Extended | HQ Spring | |
| Stroke | Style | Height | Height | Length | Length | |
| 2.9 | Eye/Eye | 8.73" | 10.5" | 11.63 | 7" | |
| 3.6 | Eye/Eye | 9.43" | 11.5" | 13.03 | 8" | |
| 4.1 | Eye/Eye | 10.13" | 12.5" | 14.23 | 10" | |
| 5.2 | Eye/Eye | 11.23" | 14.5" | 16.43 | 12" | |
| 6.3 | Eye/Eye | 12.33" | 16" | 18.63 | 14" | |
| 6.9 | Eye/Eye | 13.13" | 17.25" | 20.03 | 14" | |
| 2.9 | Stud/Eye | 9.03" | 10.8" | 11.93 | 7" | |
| 3.6 | Stud/Eye | 9.73" | 11.8" | 13.33 | 8" | |
| 4.1 | Stud/Eye | 10.43" | 12.8 | 14.53 | 10" | |
| 5.2 | Stud/Eye | 11.53" | 14.8 | 16.73 | 12" | |
| 6.3 | Stud/Eye | 12.63" | 16.3 | 18.93 | 14" | |
| 6.9 | Stud/Eye | 13.43" | 17.55 | 20.33 | 14" |
