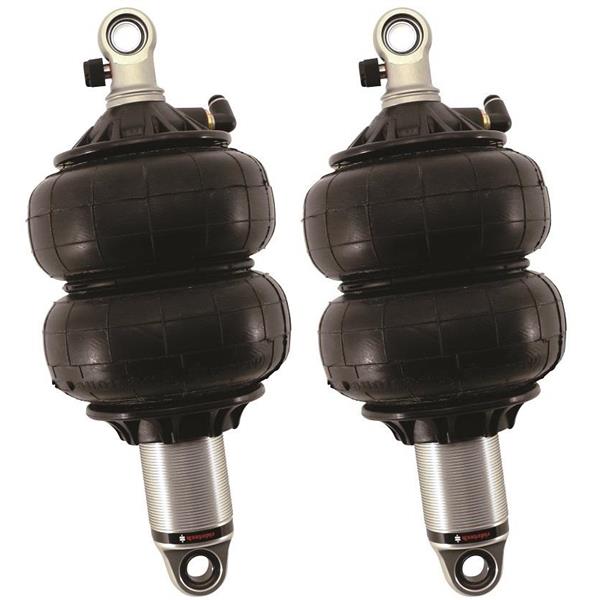

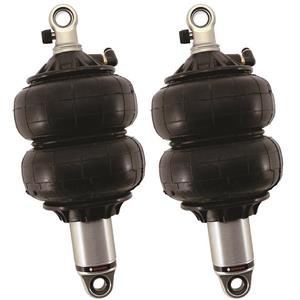

RideTech Universal HQ 1000 Series ShockWaves - Pair
SKU: 21120101

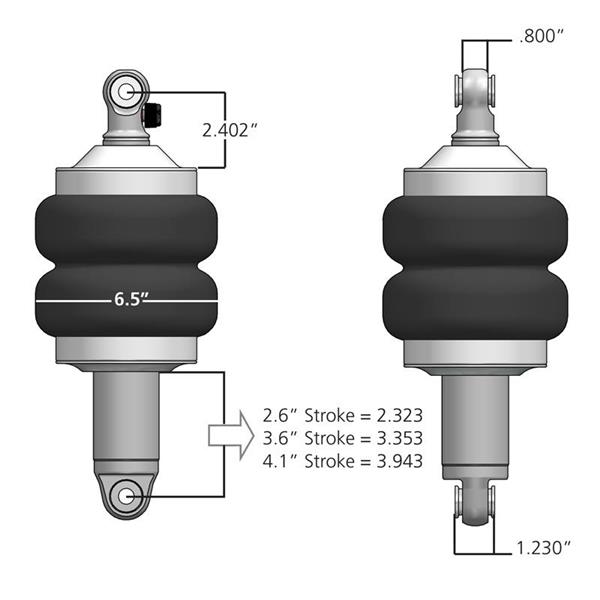

HQ Series ShockWaves, 2.6" travel, 6.5" dia. double convoluted, .625" bearing/.625" bearing.
The 1000 ShockWave Series
| Compressed | Ride | Extended | HQ Series | ||||
| Stroke | Height | Height | Length | Eye/Eye | |||
| 2.9" | 9.3" | 10.75" | 11.6" | 21120101 | |||
| 3.6" | 10" | 11.75" | 13" | 21130101 | |||
| 4.1" | 10.75" | 12.75" | 14.25" | 21140101 | |||

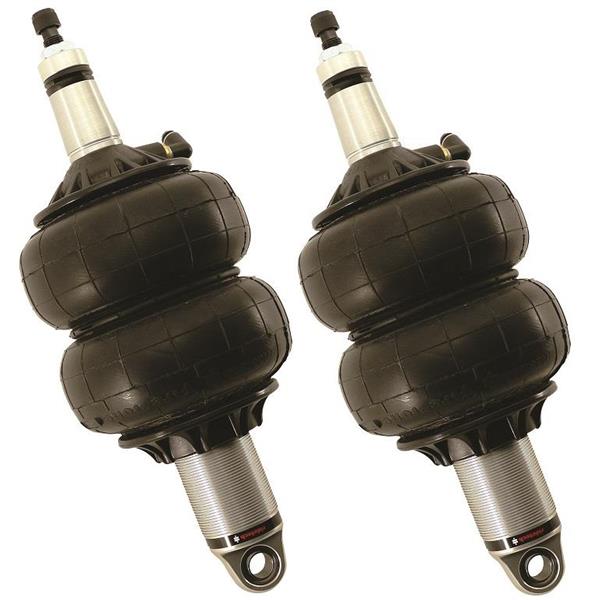

| Compressed | Ride | Extended | HQ Series | ||||
| Stroke | Height | Height | Length | Eye/Stud | |||
| 2.9" | 9.6" | 11" | 11.9" | 21120105 | |||
| 3.6" | 10.3" | 12.1" | 13.3" | 21130105 | |||
| 4.1" | 11" | 13.1" | 14.5" | 21140105 | |||
Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work with just about whatever setup you’re using. Whether you’re replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.
Recommended Applications:
Independent front and / or Independent rear installations on vehicles weighing 1,500-2,500 lbs. per axle.
NOT recommended for solid axle rear applications ... not enough travel, too much load capacity.
Load capacity: 2,140 lbs. @ 100 psi
The Handling Quality ("HQ") Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
- Completely redesigned internal design
- Aluminum construction
- Single adjustable shock valving
- Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
- Impact forged body / mono-tube design for superior ride quality and durability
- Easy & precise valve adjustment with 24 rebound clicks
