RideTech StreetGRIP System for 1988-1998 Chevy GMC C1500 Truck, 2WD 11370115

RideTech StreetGRIP System for 1988-1998 Chevy / GMC C1500 Truck, 2WD

SKU: 11370115

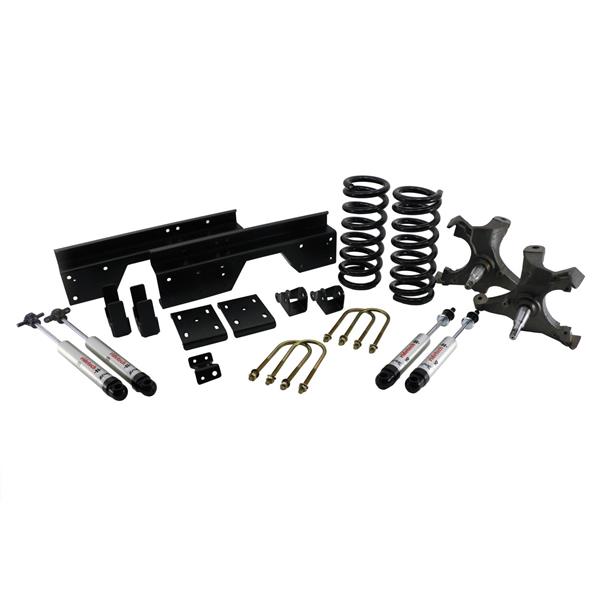

StreetGrip 4"/6" Lower System for 1990-1993 C1500, 454SS. Includes HD Drop Spindles, Front lowering springs, C-notches, flip brackets, shock relocation brackets, front and rear HQ Series shocks and hardware.

StreetGRIP is a high-performance 4/6 drop lowering suspension system for 1988-1998 C1500 pickups. Like all StreetGRIP systems, we focus on the areas of the OE suspension that need improvement rather than upgrading everything. In the case of 88-98 C1500’s that means keeping the factory control arms and leaf springs.  Getting down to business, we start with heavy-duty C-Notches that are unlike anything else on the market. The C-Notches are significantly longer than other design and feature reinforcements in multiple planes. They provide ample axle clearance while maintaining frame strength, both torsionally and longitudinally -- even when carrying a load.

Beyond a sturdy foundation, the next most important part of this new StreetGRIP Performance system is, by far, the custom-valved monotube shock absorbers. RideTech shocks feature superior monotube damping control inside of an impact forged housing. Monotube shocks are more responsive than twin-tube shocks and provide far better body control.  Built-in shock rebound adjustment lets you fine-tune the valving to suit your personal preferences. RideTech includes rear shock extender brackets that maintain proper shock angle. It really is remarkable how well these trucks go down the road with the right set of shock absorbers.

To get the front of the truck down, the StreetGRIP system includes custom-matched coil springs in conjunction and forged "Drop” spindles (These spindles will increase the track width by .25in per side).

The springs work in conjunction with the aforementioned monotube shocks to add significant ride and handling improvements. The spindles lower the vehicle while maintaining suspension geometry and alignment. Brand new grade 8 hardware and heavy-duty, powder-coated brackets round out the system. RideTech did not skimp or cut any corners.

Vehicle lowering measurements: (Lowering is comparable to a 4/6 drop)

Front fender lip: 26.25" with 255/40-18 tires

Rear fender lip: 26.75" with 275/40-18 tires
