RideTech 1999-2006 Silverado Front and Rear Air Suspension TQ Triple 11380397

RideTech 1999-2006 Silverado | Front and Rear Air Suspension - TQ Triple Adjustable

SKU: 11380397

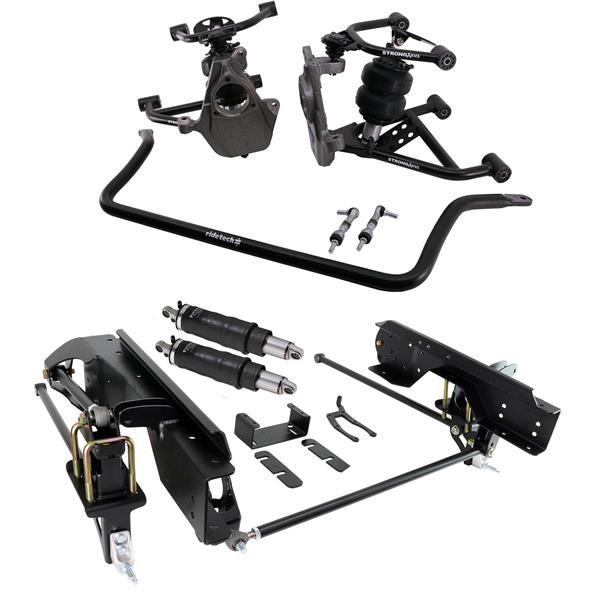

Air Suspension System for 1999-2006 Silverado & Sierra 1500 2WD.  (2007 Classic).  Includes front & rear HQ Series Shockwaves, front upper & lower StrongArms, Bolt-On 4 Link, drop spindles, and front sway bar.

• Offers a ride height that is approximately 4" lower than stock in the front and 6" in the rear.   Fully deflated will net an additional 3" drop.

• HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.  They are rebound adjustable and come standard with a 1,000,0001 Mile Warranty.

• Upper StrongArms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

• Lower StrongArms feature a double sheer lower shock mount for increased strength.  We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

• Front MuscleBar is included to reduce body roll and includes the PosiLink and links that provide immediate engagement between the chassis and control arms.

• Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump-steer.  Fits 17" or larger wheels.

• Bolt-On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.


  • Includes patent-pending R-Joint rod ends to eliminate binding and noise.


  • Optimized anti-squat, roll center, and pinion angle migration for dramatic improvements in handling and traction.


  • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.


  • Designed for simple installation with minimal OEM rivet removal.



             NOTE *** To complete this Air Suspension system please choose from one of our Compressor Systems

             NOTE *** Designed to fit 2wd trucks with independent front suspension.

Upgrades:

•  TQ Series Shocks- The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual-stage (High Speed & Low Speed) compression adjustment.   High-speed adjustment allows tuning for impact harshness and low-speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course, and drag strip.
