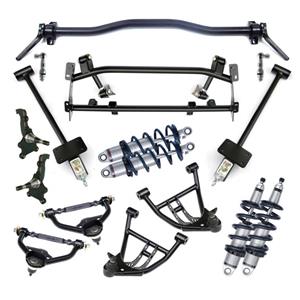

RideTech 11160202 Coilover Suspension System 1967-1969 Camaro and Firebird

To make sure you receive your package, all items $500 and over are sent signature required

CoilOver System - Level 2

• Fits:
• 1967-1969 Chevrolet Camaro
• 1967-1969 Pontiac Firebird

The RideTech coil-over package includes everything you need to completely upgrade your existing suspension. The package contains front upper and lower control-arms, a rear 4-link, and 4 single adjustable coil-overs for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes out all of the guess work when purchasing a new suspension. RideTech has spent numerous hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

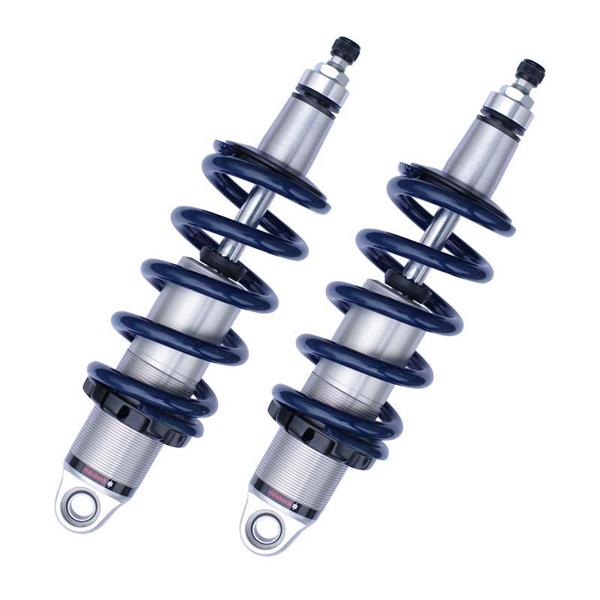

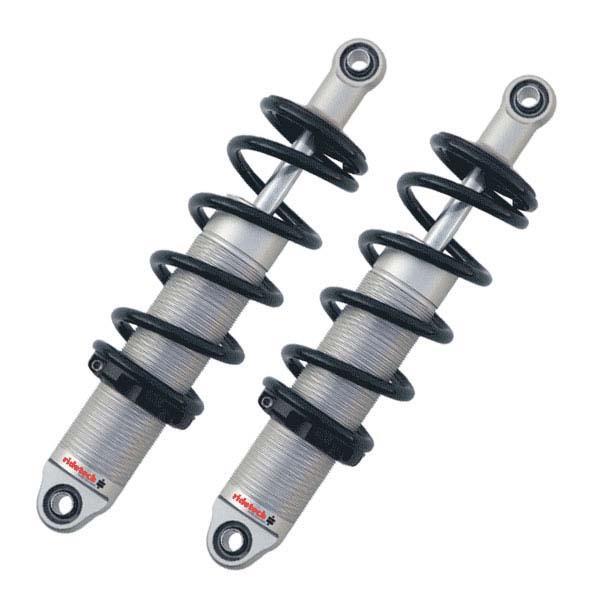

Front Coil Overs

Rear Coil Overs

RideTech continues to offer today's hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new RideTech Coil-Overs.

• Features:
• Monotube gas pressure design offers superior fade free performance
• Impact forged aluminum body provides superior strength and reliable service
• Larger 1.834" piston provides outstanding ride quality
• Double sealed rod guide with dust cover eliminates oil leakage
• Anodized finish protects against corrosion
• Available as fixed valve or rebound single adjustable
• CNC machinedbillet hardware
• Unique pinch clamp height adjuster uses finer thread for easy adjustment
• Includes 1/2" bore x 1" kevlar lined bearings for noise free operation



RideTech Aluminum MonoTube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart - it means consistent performance and great ride quality

RideTech 2 1/2" coil over springs
Built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish

The Handling Quality ("HQ") series features adjustable shock valving. It is housed in a lightweight aluminum impact forged construction that is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.

The single adjustment knob controls primarily the rebound force of the shock giving the driver plenty of control to dial in their performance at an economical price point. A RideTech single adjustable shock will provide enough adjustment for the majority of car builders.

• ide Quality Shock Series Features:
• Aluminum impact forged constructionallows leak free operation
• Single rebound shock valving adjustment
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Monotube design for superior oil control
• Easy & precise valve adjustment with 26 rebound clicks

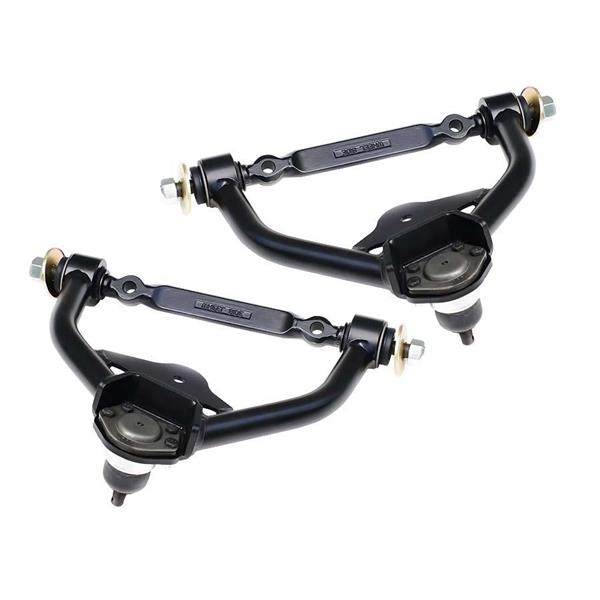

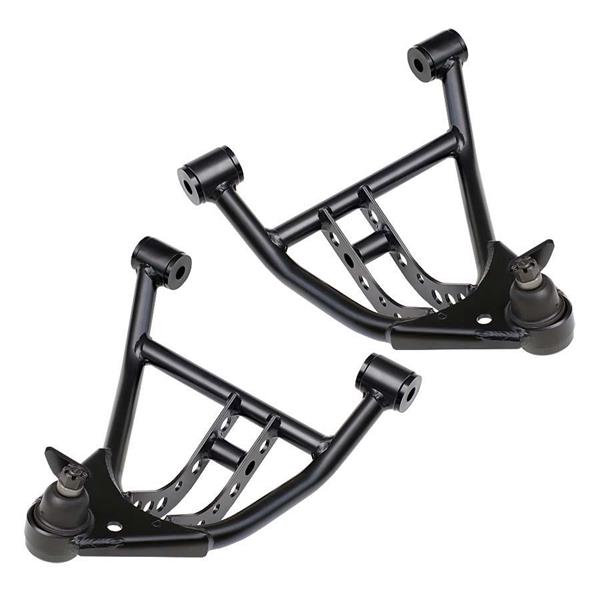

StrongArms

(upper and lower included in this package)

StrongArm tubular control arms not only improve suspension geometry and handling, they also make installation even easier. The added benefit when replacing control arms is new bushings and ball joints. No more worn out components.

• Features:
• 1.Optimized ball joint angle...
  to ensure no binding during extreme suspension travel


• 2.Black powdercoated...
  for lasting appearance and protection


• 3.Installed Ball Joints
  for simple installation


• 4..219" wall DOM tubing...
  for lasting strength and reliability


• 5.Shock mounts swaybar mounts, steering stops are built in...
  no fabrication needed


• 6.Proper Coil-Over placement...
  component mounts are designed in, not an afterthought


• 7.Proper ball joint selection...
  This uses a compression ball joint in a compression application and a tension ball joint in a tension application (just like the factory engineered it) to prevent failures


• 8.Optimized arm length...
  makes proper wheel alignment a breeze


• 9.Jig welded...
  every part is built right, every time



Upper Arm Instruction booklet

Lower Arm Instruction booklet

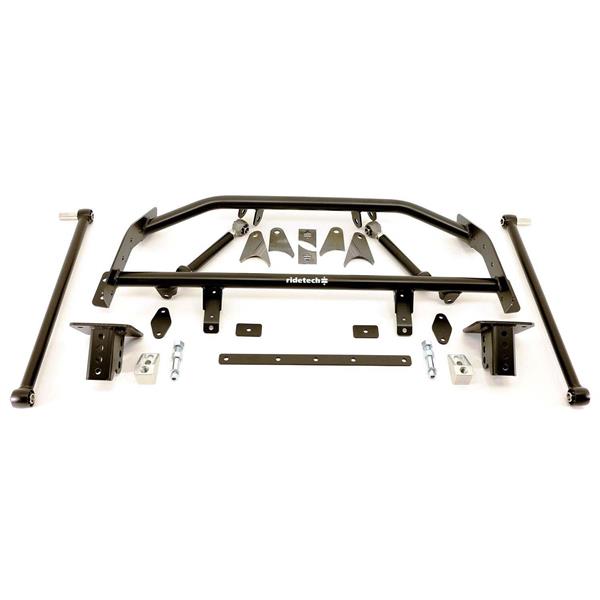

Rear 4-Link

The area of largest improvement is the handling and cornering performance. The RideTech 4-Link eliminates the oem leafspring and replaces them with a 4 link rear suspension. The 4 link bars offer more precise positioning of the rear axle to eliminate flexing and increase stability through the corners. When combined with coil-overs your vehicle can now enjoy the benefits of modern handling and ride quality technology.

• Features:
• Powers vehicle ride height
• Mounting hardware to maintain ground & tire clearance, drive line angles, and load capacities
• Bolt-on installation (no fabrication required)
• Greatly improved handling performance
• ltimate ride quality

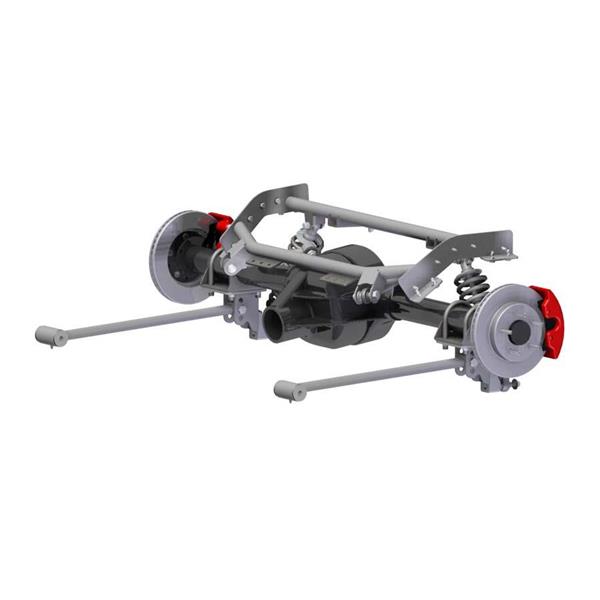

(example only, this kit does not include brakes or a rear end)

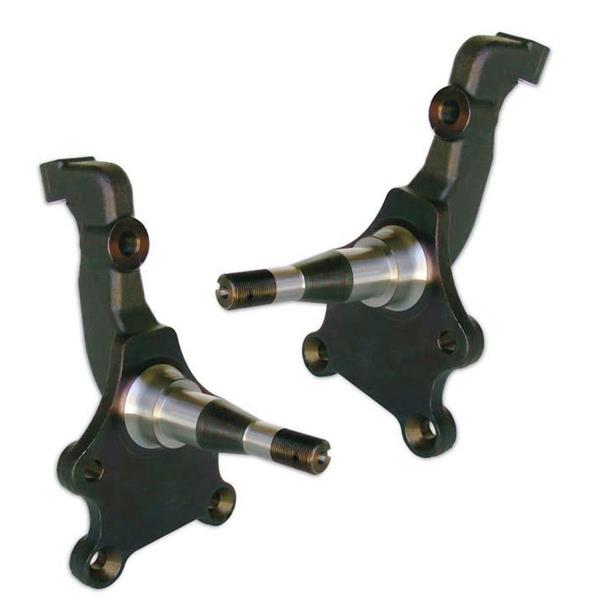

RideTech Spindle

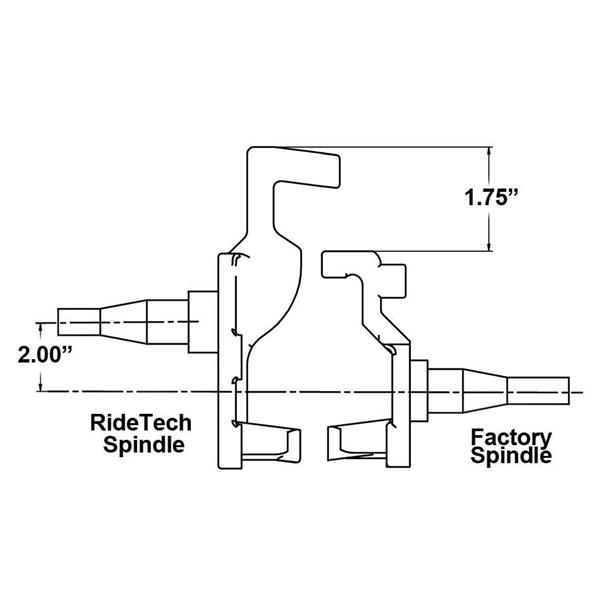

The RideTech spindle is a heavy duty forging that is approx. 1.75" taller [balljoint to balljoint] than the OEM spindle. This basic geometry change increases the camber gain during suspension compression allows the tire to lean into the turn instead of away from the turn]. The RideTech spindle also has a pin height that is 2" higher than the OEM spindle. This means that your car will sit 2" lower than it would with the OEM spindle.

RideTech has personally used this spindle on thier own track cars with great success over the last 4 years. They have used both Wilwood and Baer brake kits designed for the GM A body with this spindle. The RideTech spindle is compatible only with aftermarket tubular control arms like our RideTech StrongArms (see our other items).

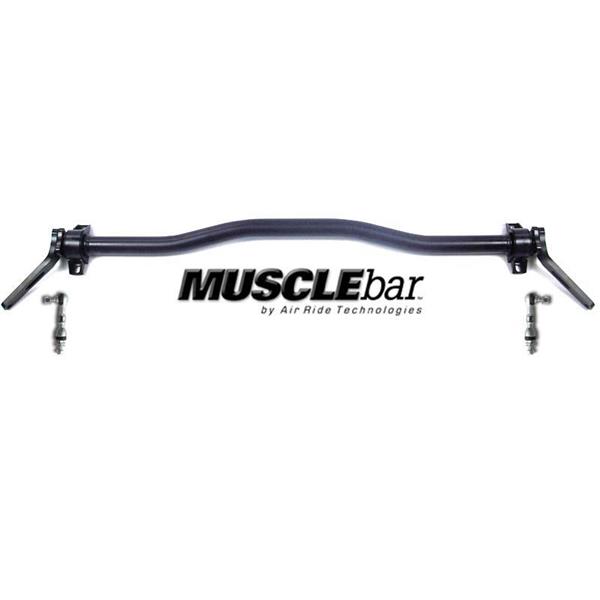

MUSCLEbar Front Sway Bar

Let's face it... the most overlooked suspension component is also one of the most important. The magic you could be missing in your suspension may be nothing more than simply adding or upgrading your sway bar(s)!

The New MUSCLEbar⢠sway bars were developed specifically for lowered vehicles and will greatly enhance the cornering performance of your car or truck. (Not to mention they'll also make some vehicles safer at the speeds we travel on today's interstate highways.)

Increased bar diameters, polyurethane bushings, and appropriate attachment links all add up to a sway bar package that is designed to work correctly with your lowered car or truck and your aggressive driving style.

• Features:
• Improves range of motion & eliminates binding
• trong design prevents deformation and failure
• ositive transfer of motion through swaybar
• EM high-performance quality

1 Year Warranty!
