ABF804-3-B 1968-1972 GM A-Body Handling Package Coilover Stage 2.5
Box
$4,649.99
Skip to product information
ABF804-3-B 1968-1972 GM A-Body Handling Package Coilover Stage 2.5
$4,649.99

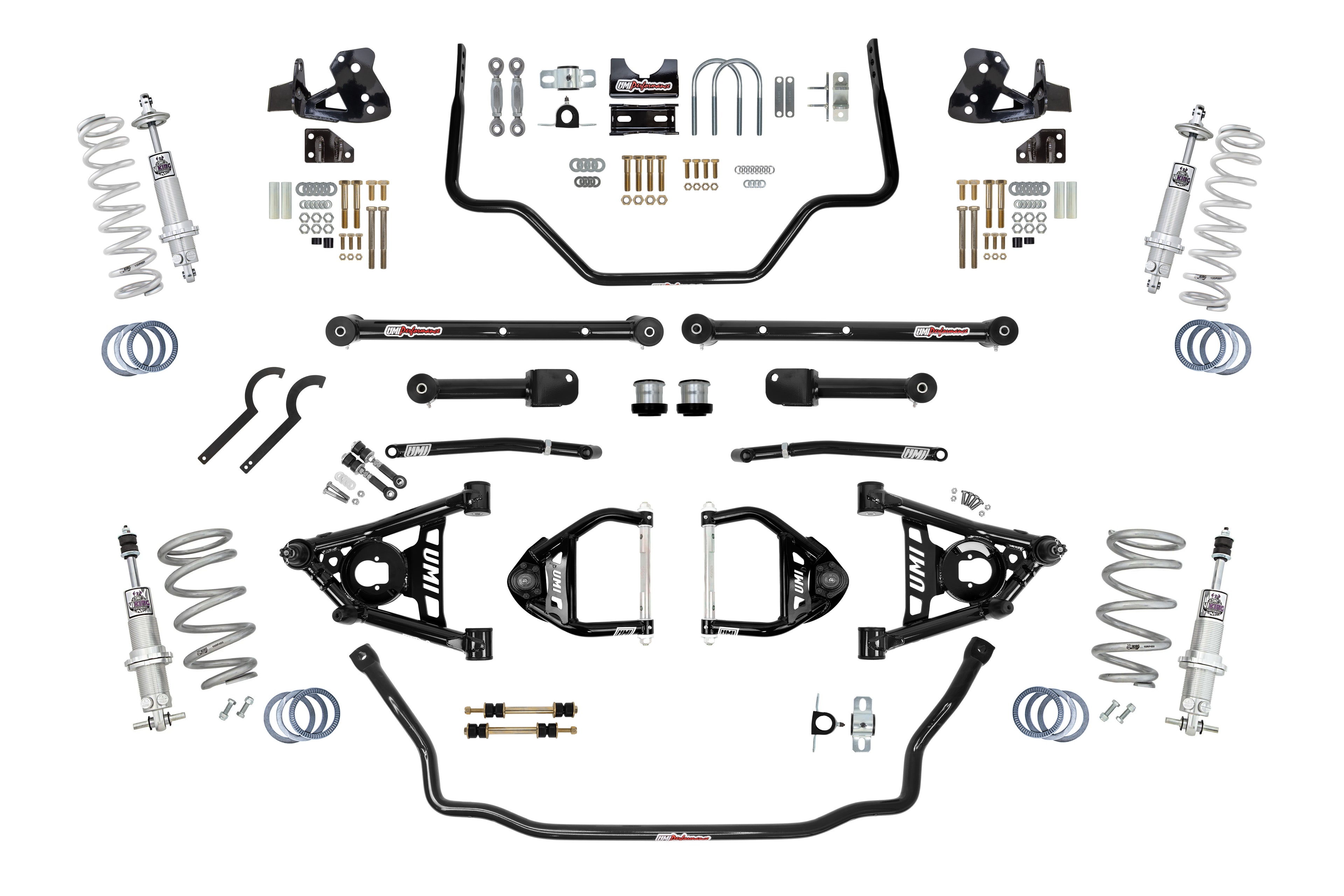

1968-1972 GM A-Body Stage 2.5 coilover kit featuring coilovers on all four corners and includes all suspension items and necessary hardware
Details
Transform A-Body with a UMI's Stage 2.5 Handling Suspension Kit Featuring Viking Coilovers
Description
ABF804-3-B 1968-1972 GM A-Body Handling Package Coilover Stage 2.5
Short Description
Handling Kit
Application Summary
UMI designed ABF804 to fit 1968-1972 GM A-Body.
Features
- Tubular upper and lower geometry-corrected A-arms
- 1-1/4" Solid Front Sway Bar
- Viking Hybrid Front Coil Springs & Shocks
- Rear coil over conversion kit featuring Viking adjustable shocks
- Tubular 1" rear pro-touring sway bar
- Tubular rear upper & lower control arm kit
- Rear frame reinforcement braces
- Polyurethane rear-end housing bushings
- All new high-grade installation hardware
- Four corner coilover ride height adjustability
- Ride height adjustable from 1"-3" lowering
- Viking shocks with 19 settings in compression and rebound
Product Info
| Part Number | ABF804-3-B |
|---|---|
| Part Type | Coilover Adjustable Spring Lowering Kit |
| HS Code | 8708807000 |
| Country of Origin | US |
Available Packages
| Package | Qty | Weight | Dimensions | GTIN |
|---|---|---|---|---|
| Box | 1 | 220.0 lb | L 55.0 x W 20.0 x H 5.0 Inches | |
| Case | 1 | 220.0 lb | L 55.0 x W 20.0 x H 5.0 Inches | |
| Each | 1 | 220.0 lb | L 55.0 x W 20.0 x H 5.0 Inches | |
| Package | 1 | 220.0 lb | L 55.0 x W 20.0 x H 5.0 Inches |
Specifications
| Adjustable | Yes |
|---|---|
| Adjustable Control Arm | Yes |
| Bushing Color | Black, Red |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color | Red |
| Control Arm Color | Red |
| Control Arm Construction | Tubular |
| Control Arm Included | Yes |
| Control Arm Material | Steel |
| Finish | Black Powdercoated |
| Front Shock Type | Coilover, Monotube |
| Front Spring Rate | 550.0 |
| Grade Type | Performance |
| Material | Aluminum, Steel |
| Mounting Hardware Included | Yes |
| Mounting Method | Bolt On |
| Mounting Type | Bolt In |
| Pre-Greased | No |
| Rear Shock Type | Coilover |
| Rear Spring Rate | 175 |
| Spring Color | Silver |
| Suspension Grade Type | Performance |
| Universal Or Specific Fit | Specific |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1968-1972 | Buick | Skylark | |
| 1968-1969 | Buick | Special | |
| 1968-1972 | Chevrolet | Chevelle | |
| 1968-1972 | Chevrolet | El Camino | |
| 1968-1971 | Oldsmobile | 442 | |
| 1968-1972 | Oldsmobile | F85 | |
| 1968-1972 | Oldsmobile | Cutlass | |
| 1968-1972 | Pontiac | GTO | |
| 1968-1972 | Pontiac | LeMans |
