643546-1 - 1963-1970 GM C10 CornerMax A-Arm Kit
Package
$1,979.99
Skip to product information
643546-1 - 1963-1970 GM C10 CornerMax A-Arm Kit
$1,979.99

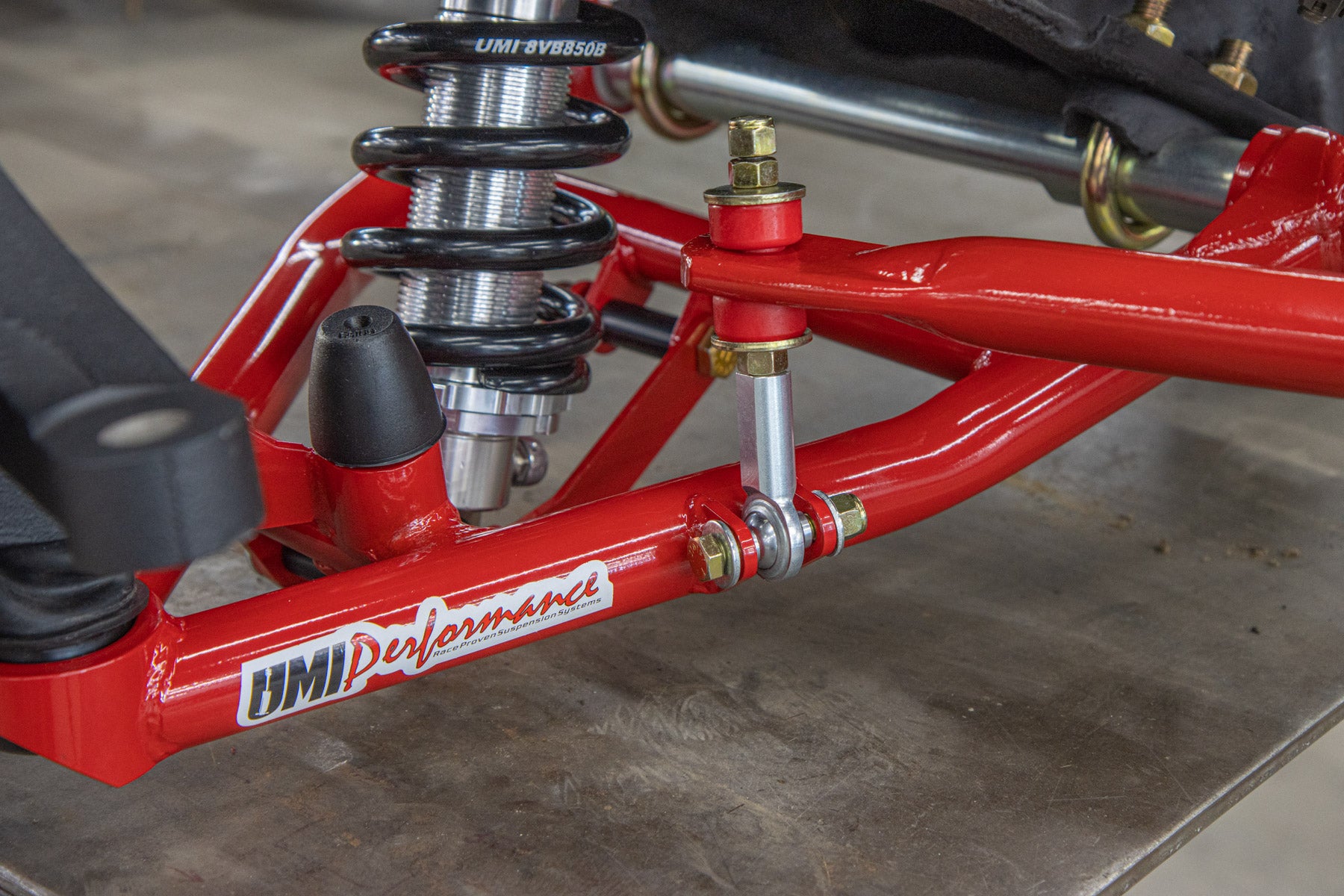

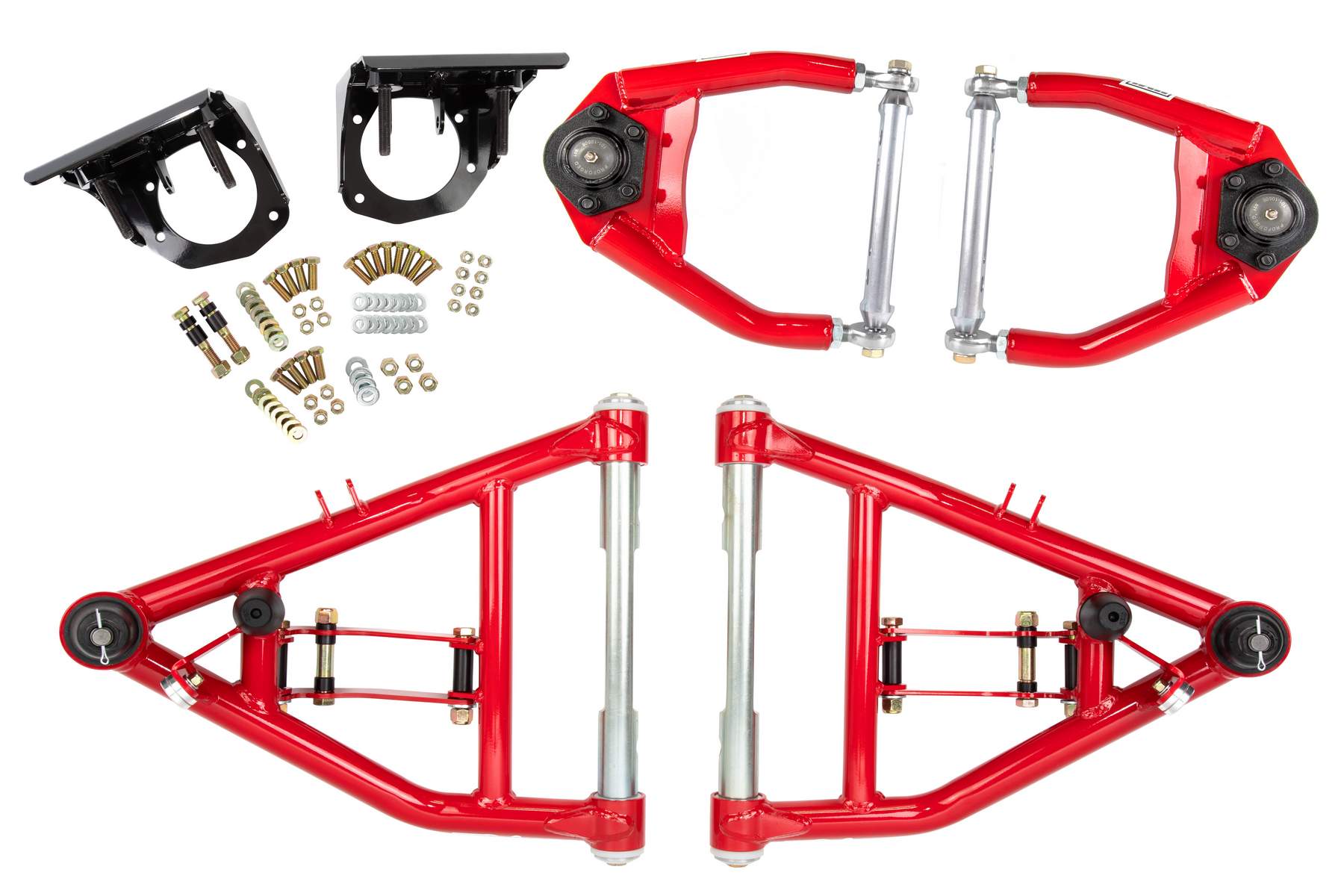

UMI’s Race Proven #cornermax a-arm and mount kit brings race car handling to your truck. Double shear coilover-only mounts hold all popular coilover assemblies.
Description
643546-1 - 1963-1970 GM C10 CornerMax A-Arm Kit
Short Description
A-Arm Mount Kit
Features

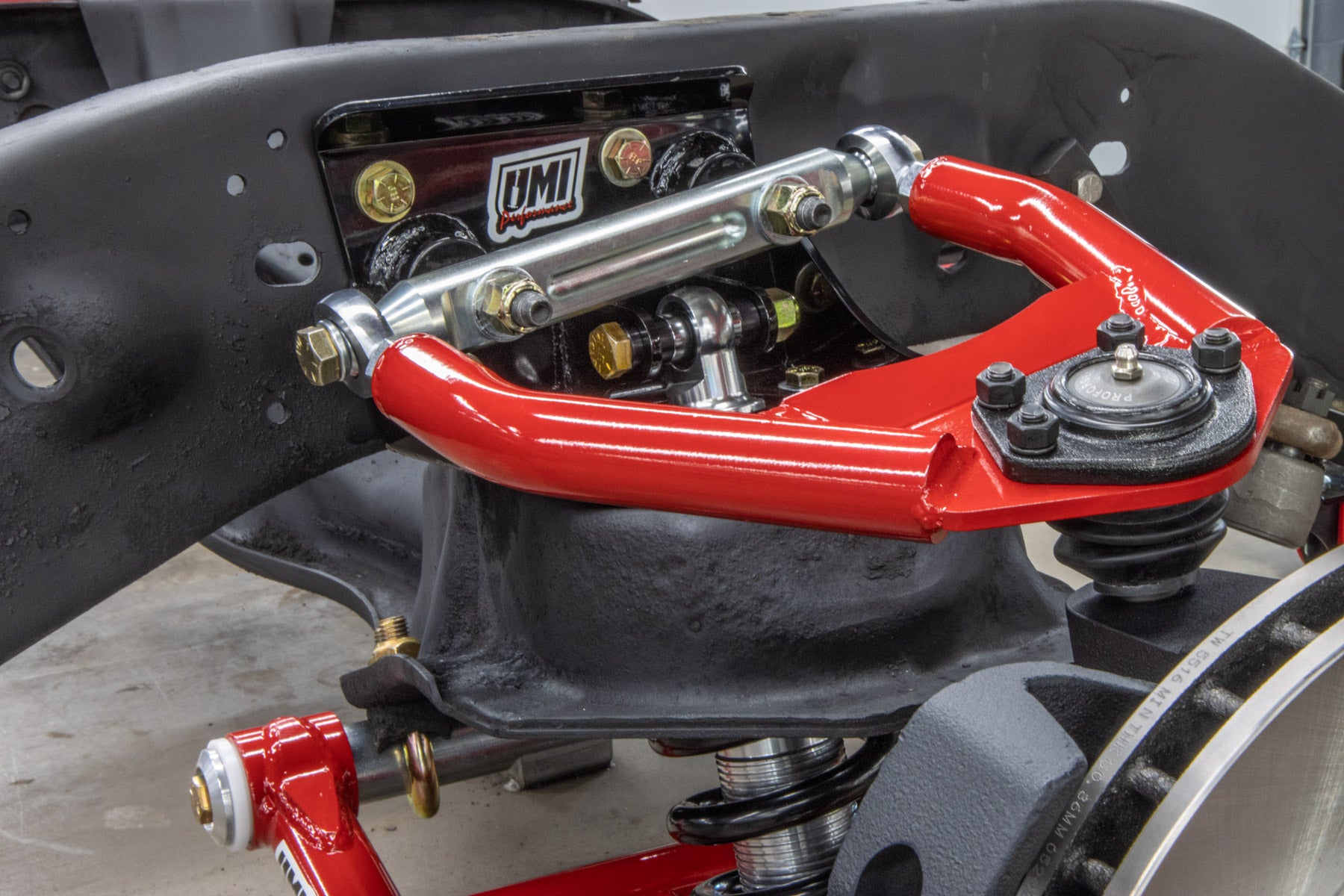

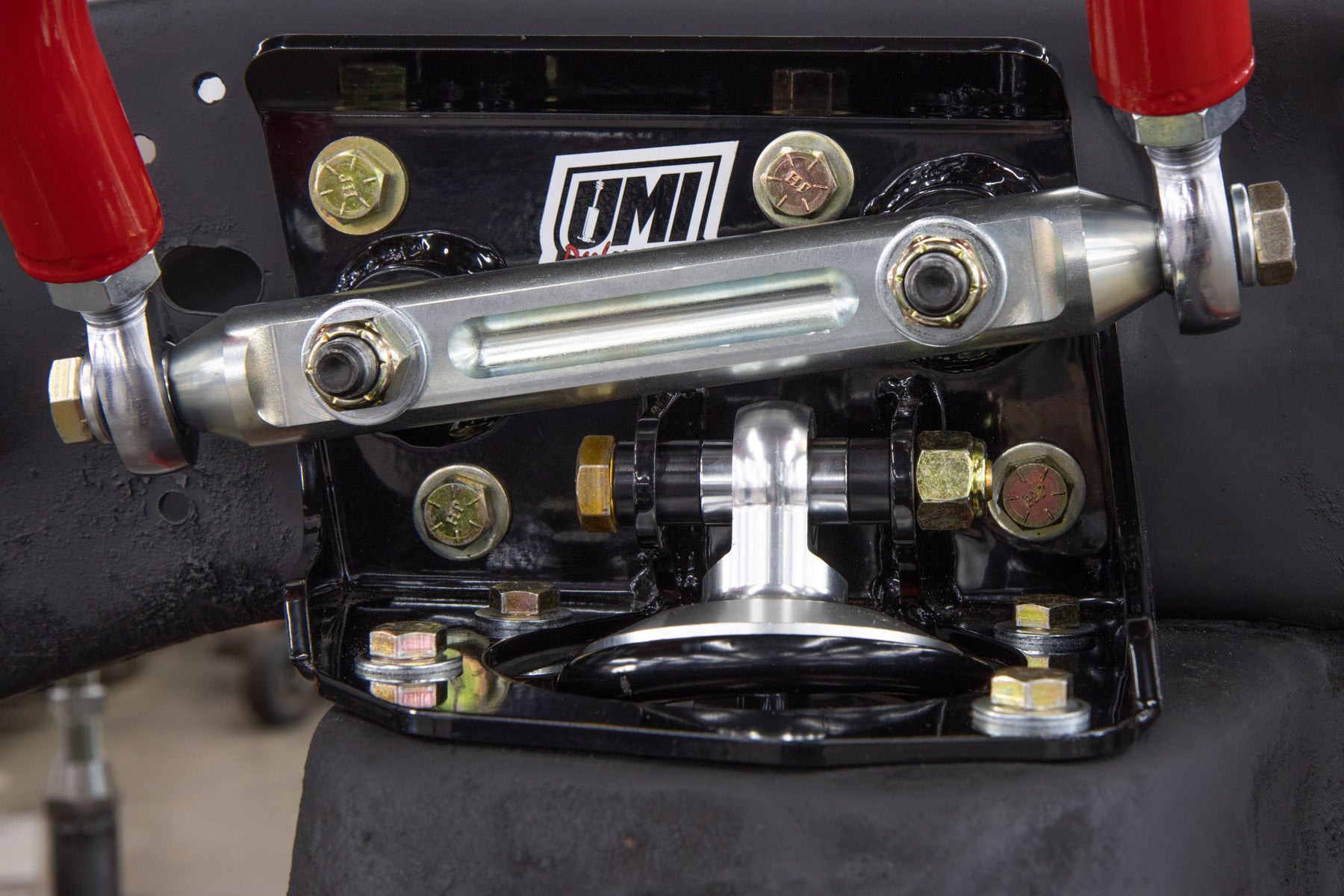

- Direct bolt-in upper mount (required grinding of factory rivets).
- Double shear mounts accepts most racing coilover shocks.
- Adjust camber and caster, often with no shims required.
- Tall ball joint improves camber gain.
- Increased caster improves steering feedback.
- Change springs and shocks without disassembling ball joints.
- Adjustable steering stops.
- Race Proven #cornermax geometry.
- 100% Made in Philipsburg, PA – USA and always of USA materials.
Product Info
| Part Number | 643546-1-B |
|---|---|
| Part Type | Suspension Lowering Kit |
| HS Code | 8708807000 |
| Country of Origin | US |
Available Packages
| Package | Qty | Weight | Dimensions | GTIN |
|---|---|---|---|---|
| Package | 1 | 220.0 lb | L 19.0 x W 7.0 x H 22.0 Inches |
Specifications
| Adjustable | Yes |
|---|---|
| Adjustable Control Arm | Yes |
| Bushing Material | Delrin |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color | Black |
| Control Arm Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Included | Yes |
| Control Arm Material | Steel |
| Finish | Black Powdercoated |
| Grade Type | Performance |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1963-1970 | Chevrolet | C10 Pickup | |
| 1967-1970 | Chevrolet | C10 Suburban | |
| 1967-1970 | GMC | C15/C1500 Pickup |
