4070 – 1964-1967 GM A-Body Coilover Kit, Front & Rear, 2-3″ Lowering

UMI’s coilover kit includes front/rear setups with Viking shocks and trailing arm relocation brackets. Lowers car up to 2", with 19-way adjustable damping, full ride height adjustment, & reinforced mounts for street, strip, or handling use.

Details

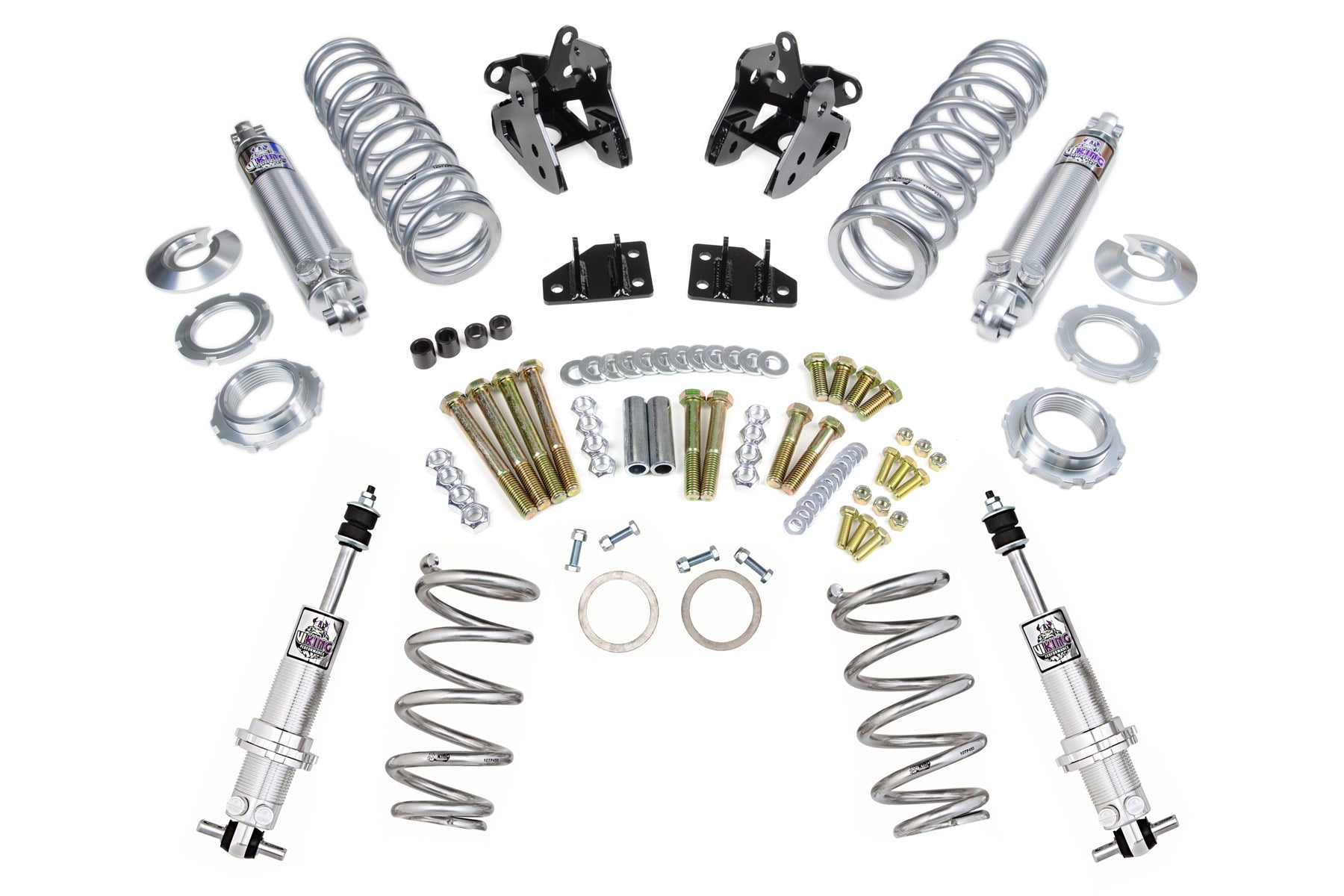

UMI's complete coilover kit simplifies handling with one part number, lowering your car up to two inches. It includes front and rear kits, with trailing arm relocation brackets for enhanced traction or rear steer adjustment. The front kit has a 550 lb/in spring rate, while the rear kit features a 225 lb/in spring rate, suitable for street, strip, and handling applications. Optional thrust bearings and spanner wrench are available. Contact UMI technical support for alternative rates or heights. The bolt-in rear coilover kit offers full ride height, spring rate, and damping adjustments, along with trailing arm adjustment for fine-tuning the instant center. The reinforced upper mount bolts in directly, and the FEA-designed lower brackets fit over stock rear lower control arm mounts. Viking Performance shocks are 19-way adjustable in both compression and rebound.

Description

UMI complete coilover kit lowers up to 2" with adjustable front and rear setups

Short Description

Coilover Kit

Notes

Note: Rear shocks may not clear all exhaust tailpipes.

Application Summary

UMI designed 4070 to fit 1964-1967 GM A-Body

Features

• Convenient, one part number ordering
• This kit allows moderate to aggressive lowering
• 550 lb/in front rates
• 225 lb/in rear rates
