4069-1 – 1964-1972 GM A-Body Coil Over Conversion Brackets Kit, Quick Performance, Rear

UMI bolt-in rear coilover kit provides ride height, spring rate & damping adjustments, plus trailing arm tuning for Quick Performance. Reinforced brackets ensure stability, while multiple positions allow instant center calibration.

Details

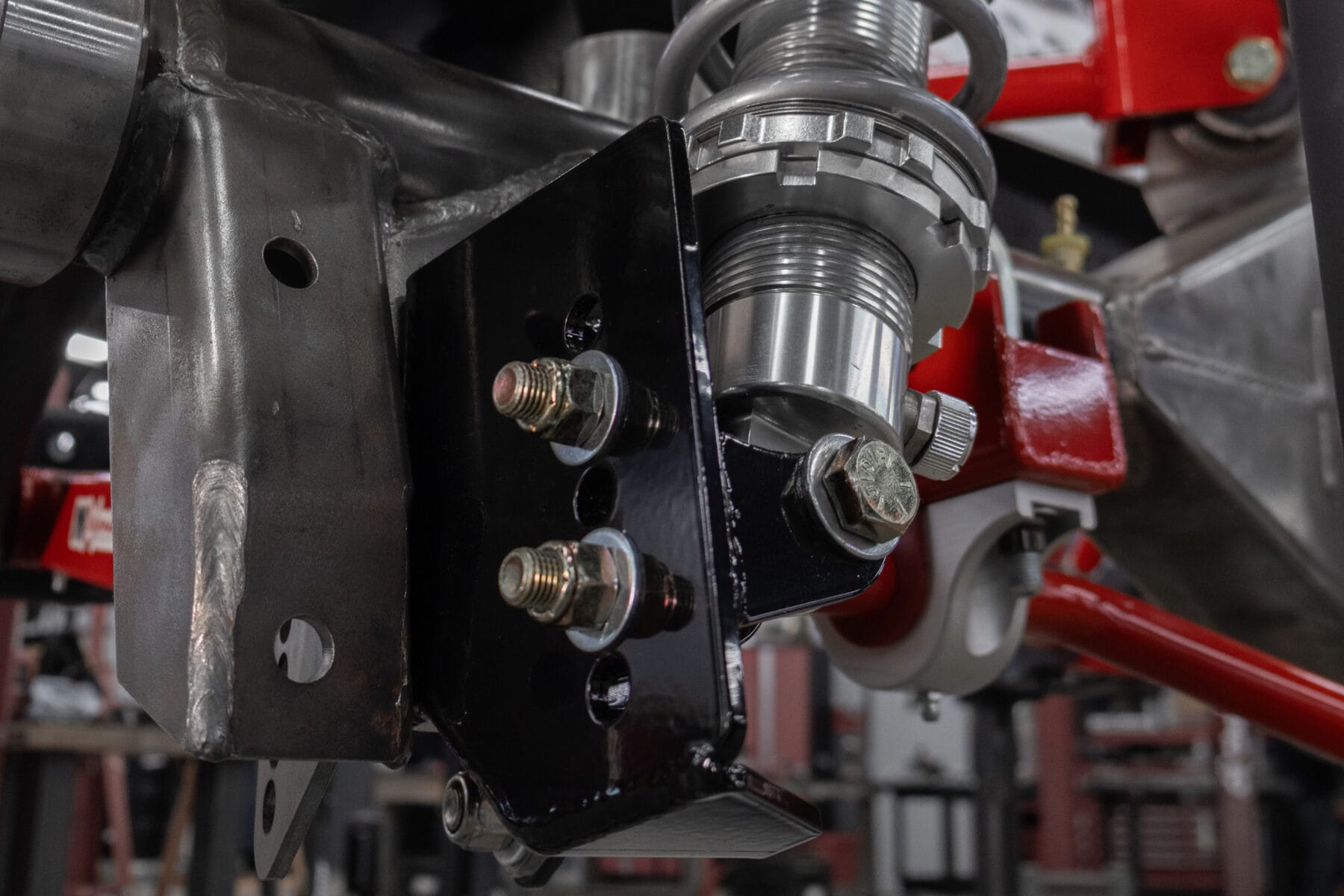

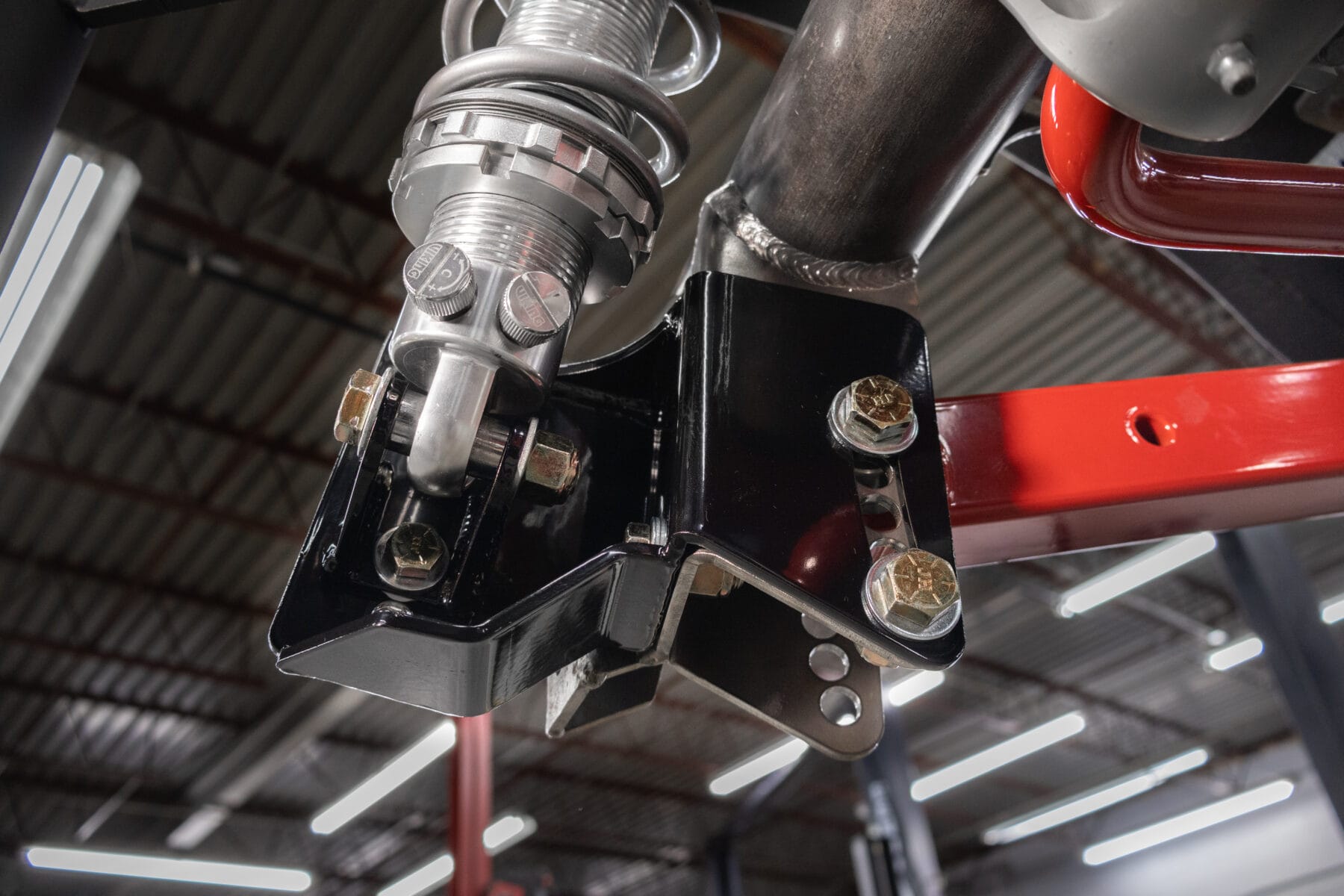

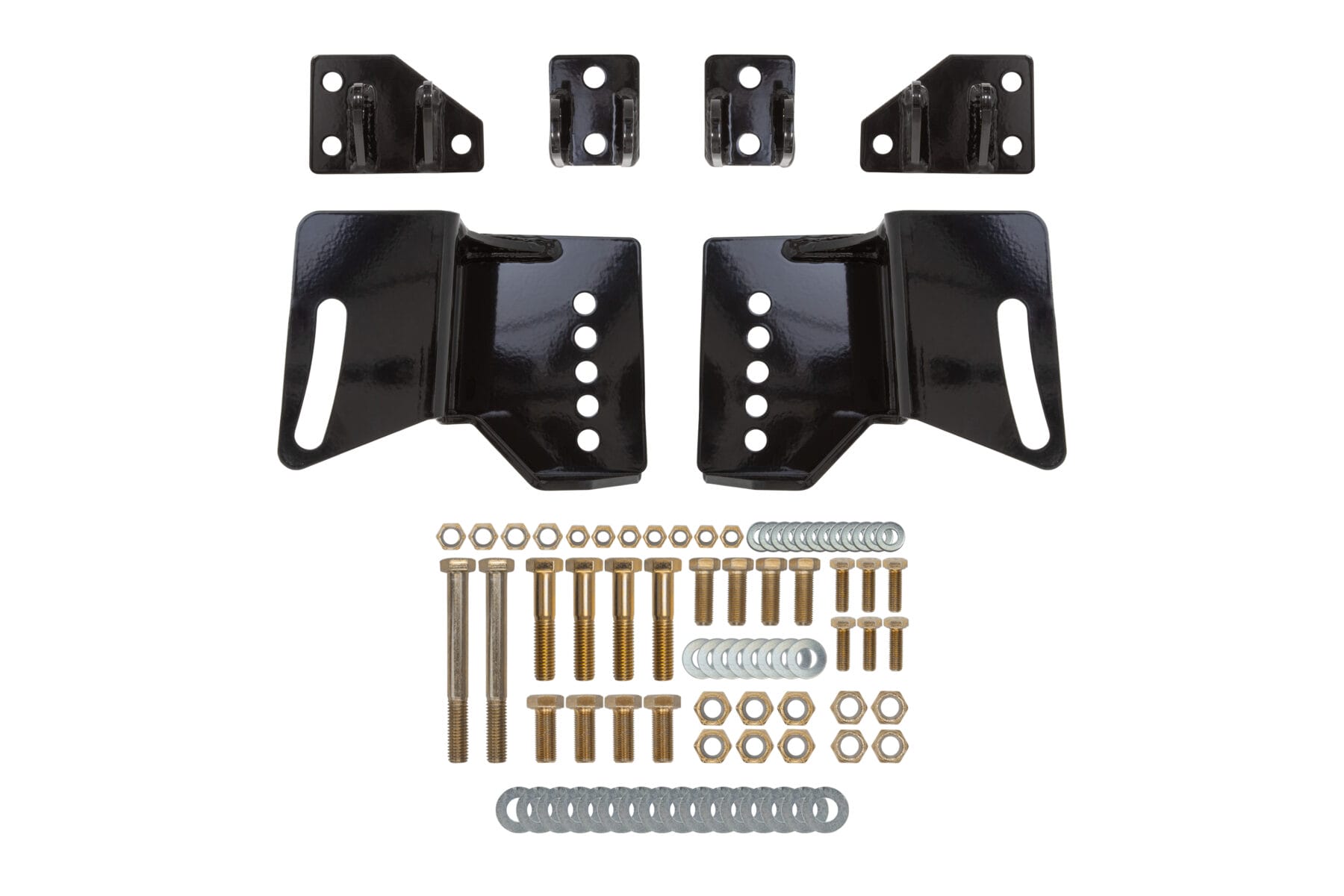

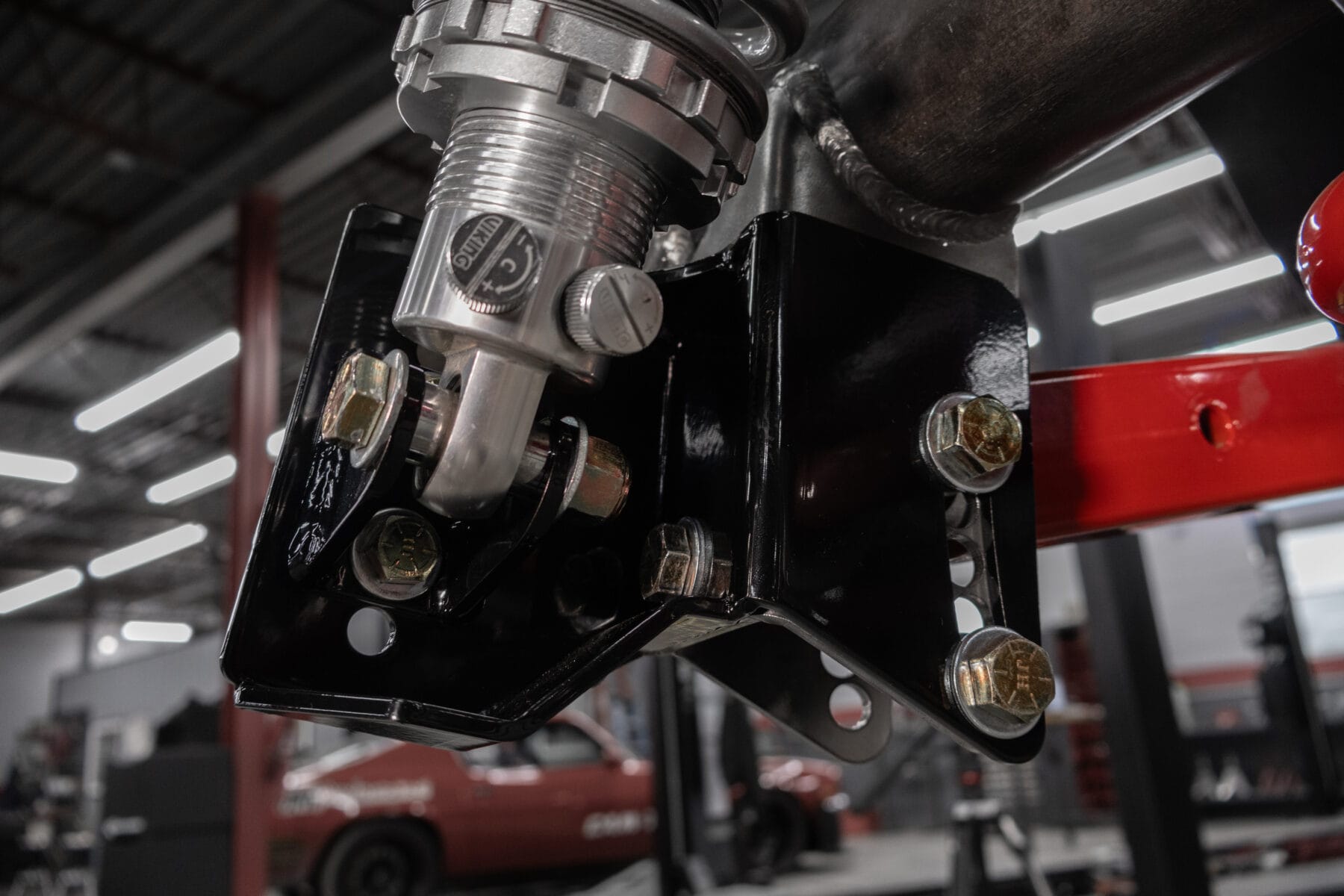

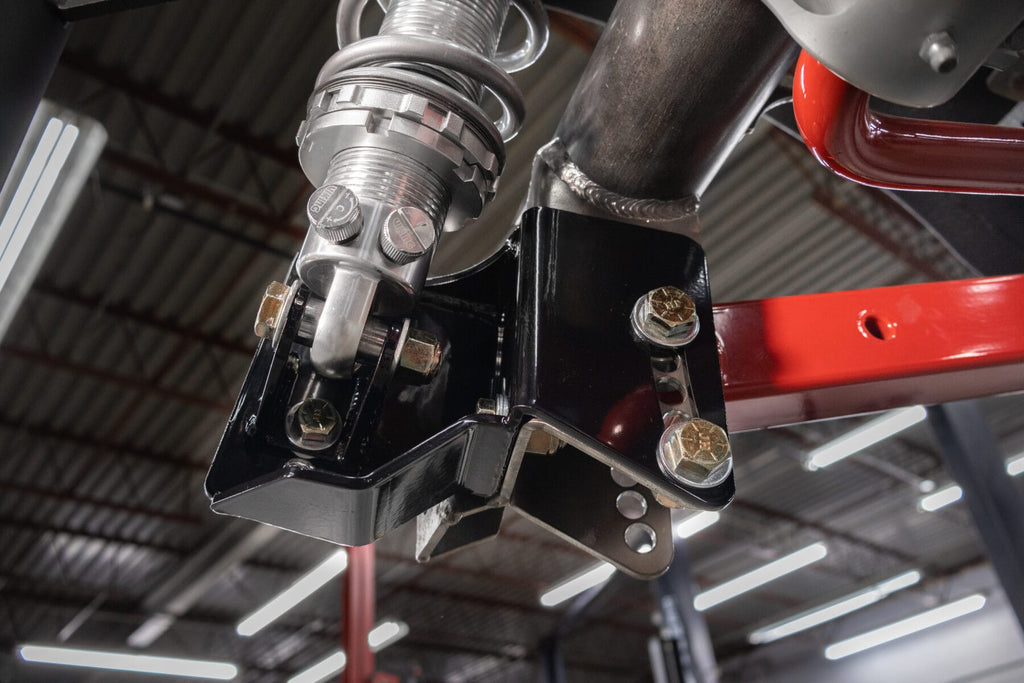

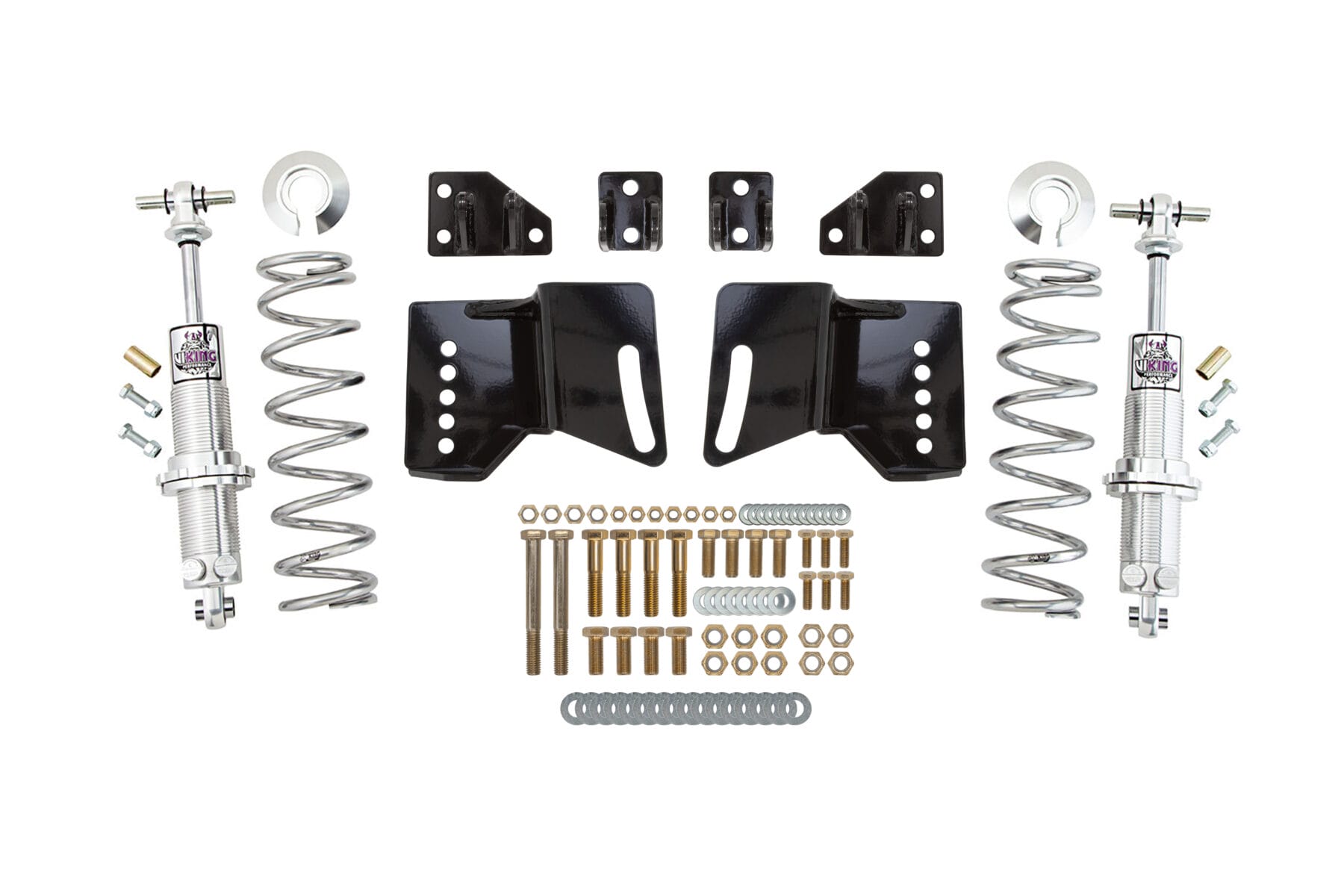

The UMI bolt-in rear coilover kit provides comprehensive adjustments for ride height, spring rate, and damping, in addition to enabling trailing arm adjustments for precise calibration of the instant center. This kit is equipped with a fortified upper mount, specifically designed to accommodate a 2-1/2” racing coilover with a double-shear configuration. The lower brackets, engineered through Finite Element Analysis (FEA), are reinforced and are designed to be bolted directly onto the existing Quick Performance rear lower control arm mounts. These brackets also feature an adjustment mechanism for trailing arm height, facilitating the tuning of the instant center location using the 3 available positions. This product is manufactured and tested in Philipsburg, Pennsylvania, utilizing materials sourced from the United States. We advise that the brackets be installed initially and that measurements be taken from center to center at ride height to guarantee the precise identification of shock part numbers. Regarding compatibility, this kit is designed for direct installation with a Quick Performance rear.

Description

UMI rear coilover kit adjusts ride height & damping for Quick Performance

Short Description

Coilover Kit

Notes

Fitment Note: For Quick Performance axles only. Rear shocks may not clear all exhaust tail pipes.

Application Summary

Designed to fit 1964-1972 GM A-Body Vehicles with a Quick Performance Rear End. This kit will lower the vehicle 2 to 3 inches with a spring rate of 175Lb/In Springs

Features

• Full ride height, spring rate, and damping adjustments
• Trailing arm adjustment for fine tuning of instant center
• Reinforced upper mount with a true 2-1/2” racing coilover
• FEA designed reinforced lower brackets
• 2-hole trailing arm height adjustment for instant center tuning
• Designed, manufactured, and raced in Philipsburg, PA, USA
• Made with 100% US materials
• Welding required for drag use
