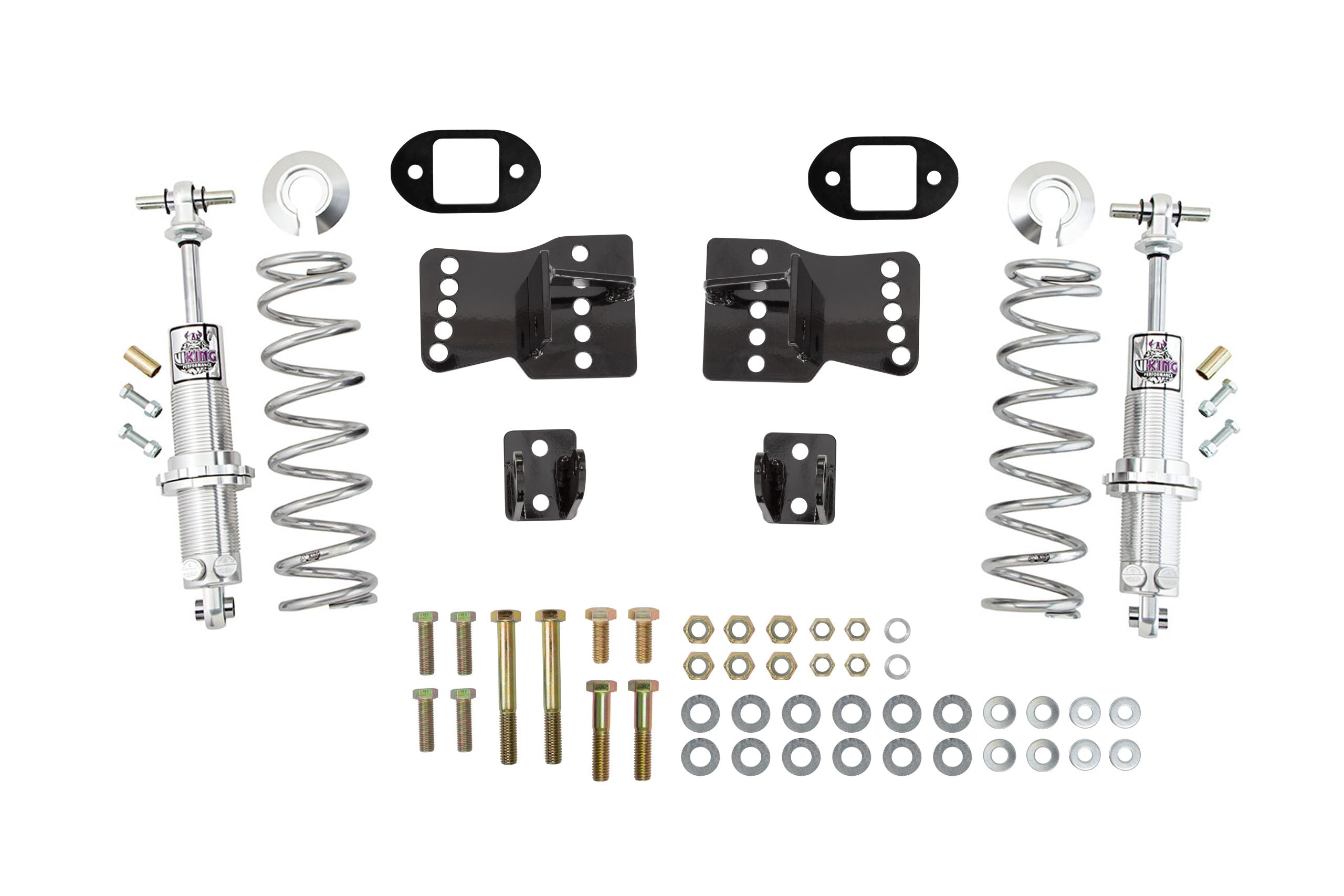

1978-1988 GM G-Body Rear Coilover Kit Quick Performance, 110lbs, Stock Height

UMI’s bolt-in rear coilover kit for G-Body cars with 110lb springs, ideal for drag racing. Multi-position brackets allow fine-tuning of ride height and shock angle. Minor drilling required.

Details

UMI’s bolt-in rear coilover bracket kit is a complete mounting solution for your Quick Performance axle in your 1978-1988 GM G-Body. This bracket features a multi-position design to allow further fine tuning of ride height and shock location. In addition to shock location adjustability, the UMI 3054 features five positions of trailing arm location adjustment to match the Quick Performance adjustable lower control arm brackets. Minor drilling is required.

Description

UMI rear coilover kit – 110lb drag spring

Short Description

Coilover Kit Rear

Notes

Spanner Wrench & Thrust Bearing Kit: Spanner wrench tool is used to adjust vehicle height while shock stays mounted. This wrench is needed to make height adjustments. The thrust bearing kit is designed to be placed between the spring and the spring seat attached to the shock. This makes for easier adjustments since the spring seat is rotating on a bearing. This kit is recommended for easier adjustments but is not needed to complete the installation. We do not recommend adjusting height on the car without a thrust bearing kit.

Application Summary

UMI Designed 3054-4 to fit 1978-1988 GM G-Body Drag Race Vehicles.

Features

• Fits Quick Performance Ford 9" based rear housings ONLY
• Designed for Quick Performance 5 hole adjustable mounts
• ½" x 1-¼" mount fits most standard racing shocks
• Upper T-bar reinforcement tab and hardware included
• 100% Bolt in design features shock height adjustability
• Brackets manufactured entirely from 3/16" Made In USA mild steel
• Laser cut for consistency and a precise fit
• Powder coated black for a long lasting finish
• Works great with UMI 3055 shock tower brace
• 100% Made In USA of USA materials
