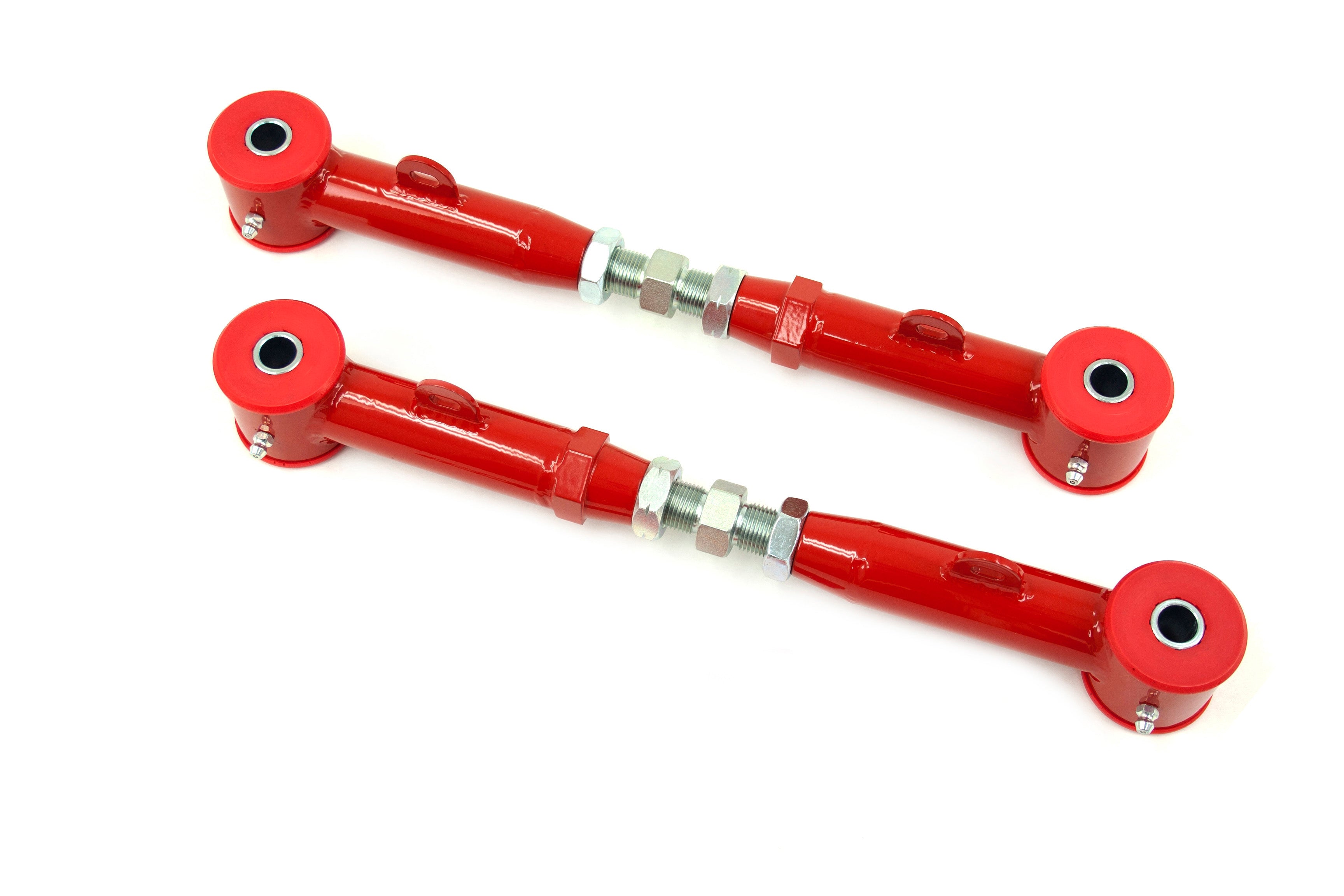

2523 – 2010-2015 Chevrolet Camaro Toe Rods, Rear, Adjustable Poly

UMI’s Adjustable Rear Toe Rods replace weak factory parts for better traction, handling, and braking. Built from 1-1/4” DOM tubing with TIG welds, chromoly adjusters, and greaseable bushings, they’re bolt-on, adjustable on-car.

Details

The rear toe rods are essential for controlling the camber alignment of the rear end, ensuring that the tire remains properly positioned during suspension loads. Factory toe rods are typically made from weak stamped steel and have soft rubber bushings, which can lead to deflection and result in poor handling, traction issues, and potential rear tire wear. Replacing the factory toe rods with heavy-duty alternatives offers a more stable suspension, improved traction, and better braking performance. These adjustable toe rods provide greater flexibility than the factory camber bolt and can be easily adjusted while still mounted on the vehicle. The UMI toe rod arms are made from robust 1-1/4” DOM tubing and feature fully TIG-welded joints for maximum strength. They come with fluted, greaseable, low deflection polyurethane bushings. Installation is simple and can be done in under an hour with basic hand tools. These toe rods are constructed from high-quality materials, featuring CNC-machined bushing holders and a durable powder coat finish. They are designed for direct bolt-on installation using OEM hardware and include a 1” 4140 heat-treated chromoly adjuster. Proudly made in the USA, these toe rods are an excellent choice for those looking to enhance their suspension system.

Description

UMI Adjustable Rear Toe Rods improve traction, handling, and alignment.

Short Description

Toe Rods

Application Summary

UMI designed 2523 to fit 2010-2015 Chevy Camaro and 2008-2009 Pontiac G8 vehicles.

Features

• Fabricated from 1.250” x 0.120” DOM tubing
• CNC machined DOM bushing holders
• Fully TIG welded for outstanding strength
• Greaseable and fluted polyurethane bushings
• Direct bolt on, uses OEM hardware
• 1” 4140 heat treated chromoly adjuster
• Durable powder coat finish
• Made in the USA

Product Info

Available Packages

Specifications

Fitment

Downloads

• Installation Instructions (PDF)
