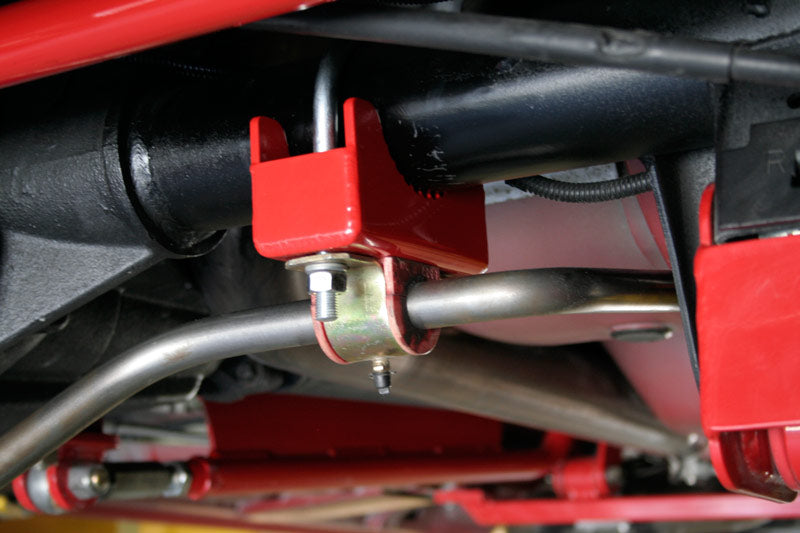

2244 – Aftermarket Rear End Sway Bar Installation Kit- 3-1/4” Axle Tubes

UMI’s rear sway bar mount kit fits 3.25" axle tubes like early Moser 9” housings. Features CNC machined mounts, chrome moly u-bolts, and longer poly end links for proper geometry. Fully bolt-on for 1982–2002 Camaro and Firebird.

Details

Designed for large-diameter 3.25" axle tubes commonly found on early Moser 9” rear ends (manufactured before 2002) and other custom housings, this rear sway bar mounting kit offers a secure, weld-free installation for factory or aftermarket sway bars. The kit features precision CNC machined bushing mounts with welded gussets for strength, heavy-duty zinc-plated chrome moly u-bolts, and longer polyurethane end links to maintain correct geometry. The CNC machined grip teeth prevent shifting or binding, ensuring consistent sway bar performance under load. Polyurethane sway bar bushings with universal-fit slots are included in 19mm and 22mm sizes to work seamlessly with the larger hardware. Installation is completely bolt-on for 1982–2002 Camaro and Firebird models. Note: a 3.25" clamp is required when using a UMI billet sway bar mount or when modifying a factory mount.

Description

UMI 3.25" axle tube rear sway bar mount kit

Short Description

Swaybar Mount Kit

Application Summary

UMI designed 2244 to fit 1982-2002 GM F-Body vehicles

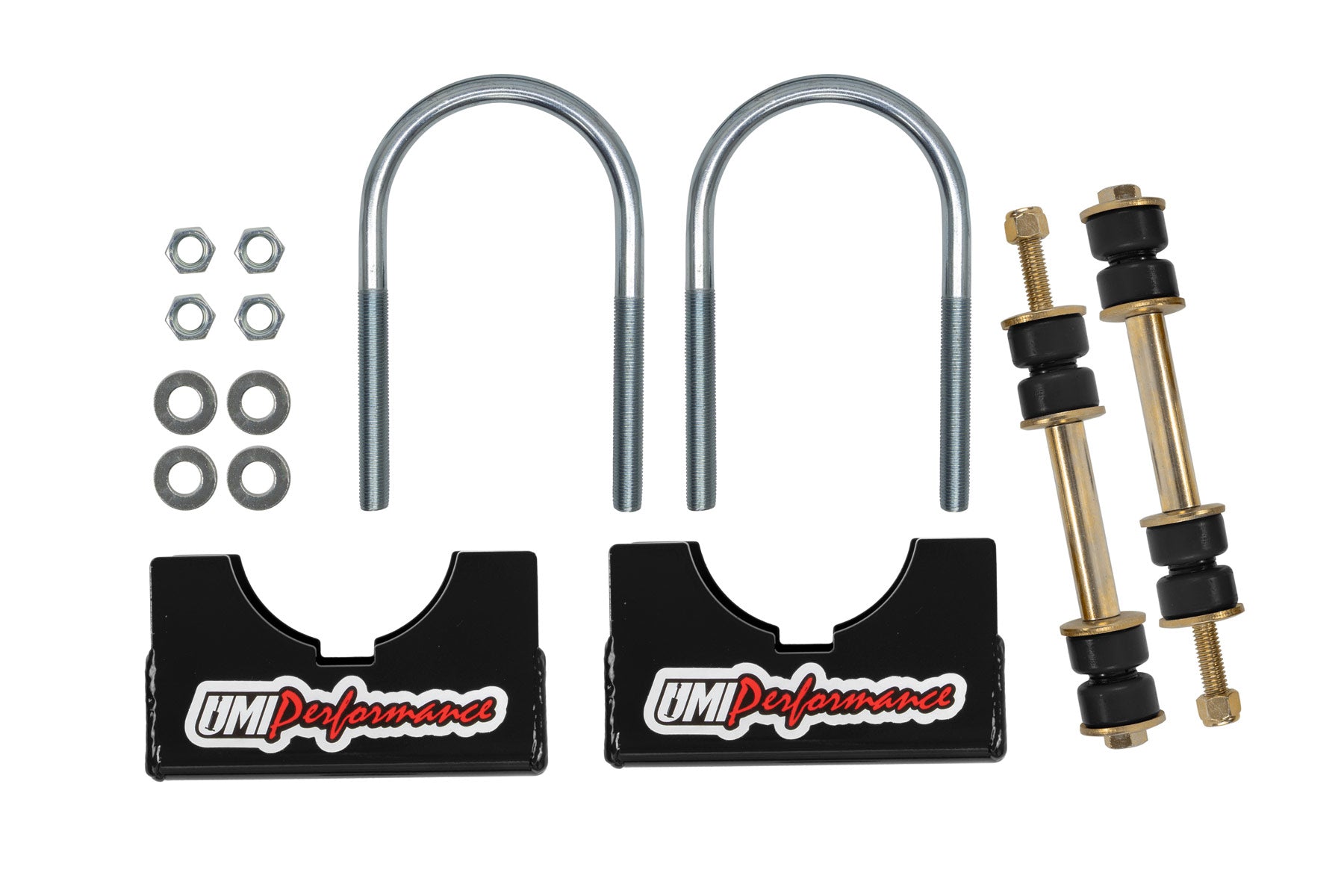

Features

• CNC machined sway bar mounts
• Heavy-duty chrome moly u-bolts
• Longer High Quality polyurethane end links
• Polyurethane sway bar bushings
• Grip teeth on sway bar mounts
• Welded gussets on mounts
• Bolt-in application for 82-02 Camaro/Firebird models
• Universal fit for 19mm and 22mm sizes
• Compatible with rear ends from Strange Engineering, Currie, and Moser Engineering
• Versatile for other brand rear ends with varying axle tube diameters
• 3.25" clamp required for UMI billet sway bar mount or modifying factory mount

Product Info

Available Packages

Specifications

Fitment
