2244 – Aftermarket Rear End Sway Bar Installation Kit- 3” Axle Tubes

UMI’s rear sway bar mount kit fits 3.00" axle tubes like Strange, Currie, and Moser 12-bolt/9” housings. CNC mounts with grip teeth, welded gussets, chrome moly u-bolts, and extended end links. Bolt-on for 1982–2002 Camaro/Firebird.

Details

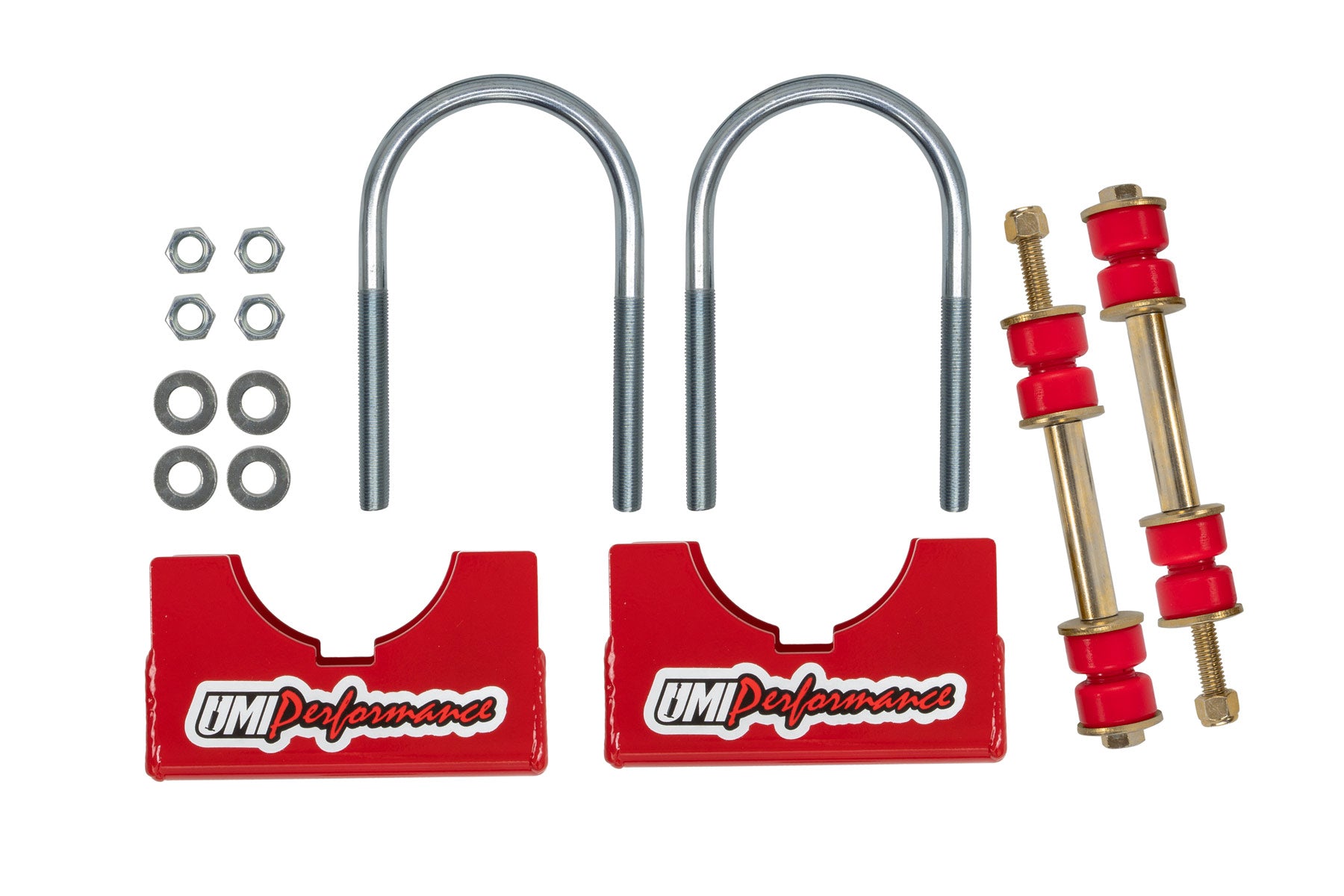

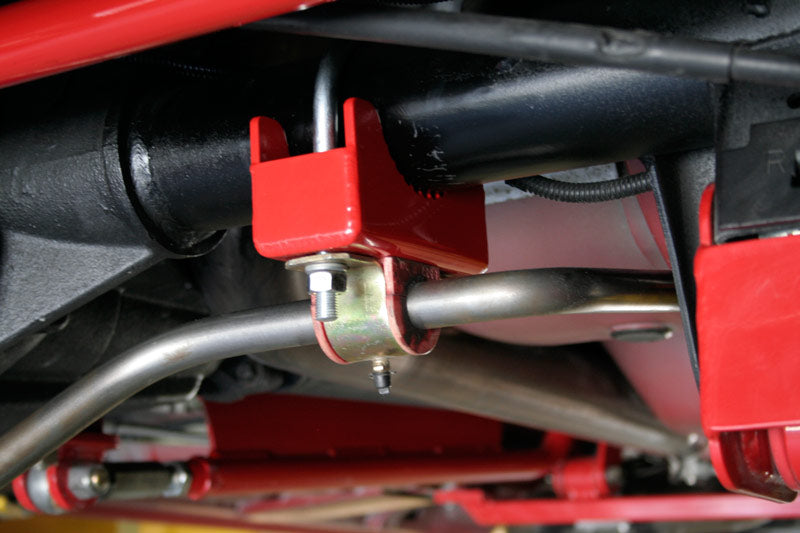

This kit is ideal for aftermarket rear ends with 3.00" axle tubes, such as those from Strange Engineering, Currie, and Moser Engineering 12-bolt rear ends, as well as Moser 9” housings manufactured after early 2002. It provides a simple, bolt-in solution for adding a factory or aftermarket sway bar to vehicles that did not originally include one. The CNC machined mounts with grip teeth and welded gussets ensure a solid connection without movement or deformation during tightening, while the heavy-duty zinc-plated chrome moly u-bolts and extended end links maintain proper clearance and suspension geometry. Polyurethane sway bar bushings with enlarged slots are included to accommodate the larger u-bolts, available in both 19mm and 22mm sizes. Installation is straightforward and requires no welding, making this kit a reliable and durable upgrade for 1982–2002 Camaro and Firebird models.

Description

UMI 3.00" axle tube rear sway bar mount kit

Short Description

Swaybar Mount Kit

Application Summary

UMI designed 2244 to fit 1982-2002 GM F-Body vehicles

Features

• CNC machined sway bar mounts
• Heavy-duty chrome moly u-bolts
• Longer High Quality polyurethane end links
• Polyurethane sway bar bushings
• Grip teeth on sway bar mounts
• Welded gussets on mounts
• Bolt-in application for 82-02 Camaro/Firebird models
• Universal fit for 19mm and 22mm sizes
• Compatible with rear ends from Strange Engineering, Currie, and Moser Engineering
• Versatile for other brand rear ends with varying axle tube diameters
• 3.25" clamp required for UMI billet sway bar mount or modifying factory mount
