2244 – Aftermarket Rear End Sway Bar Installation Kit- 2.75" Axle Tube

UMI’s rear sway bar mount kit fits 3.25" axle tubes like early Moser 9” and custom housings. CNC mounts with gussets, chrome moly u-bolts, and extended end links. Includes 19mm & 22mm polyurethane bushings. Bolt-on for 1982–2002 F-Body

Details

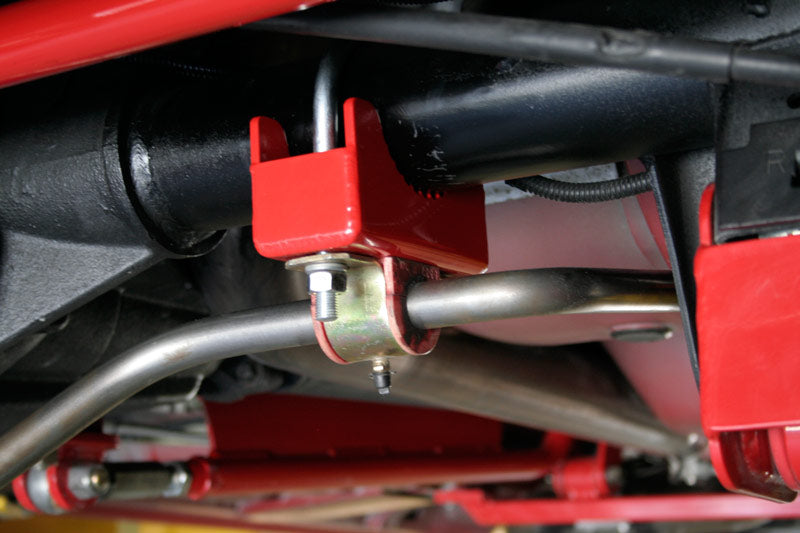

This rear sway bar mounting kit is the perfect solution for vehicles with aftermarket rear ends that lack factory sway bar provisions and use smaller 2.75" axle tubes. It includes all necessary components to easily install a factory or aftermarket sway bar onto your new rear end, featuring bolt-on CNC machined bushing mounts with welded gussets, heavy-duty zinc-plated chrome moly u-bolts, and extended end links for proper clearance and geometry. Designed as a 100% bolt-in application for 1982–2002 Camaro and Firebird models, installation requires no welding. The CNC machined grip teeth on the mounts securely bite into the axle tube to prevent shifting and binding, while the gusseted design adds strength and prevents spreading during tightening. Polyurethane sway bar bushings are included, featuring larger slots for universal fitment and available in 19mm and 22mm sizes, ensuring a precise and durable installation on smaller-diameter housings.

Description

UMI 3.25" axle tube rear sway bar mount kit

Short Description

Swaybar Mount Kit

Application Summary

UMI designed 2244 to fit 1982-2002 GM F-Body vehicles

Features

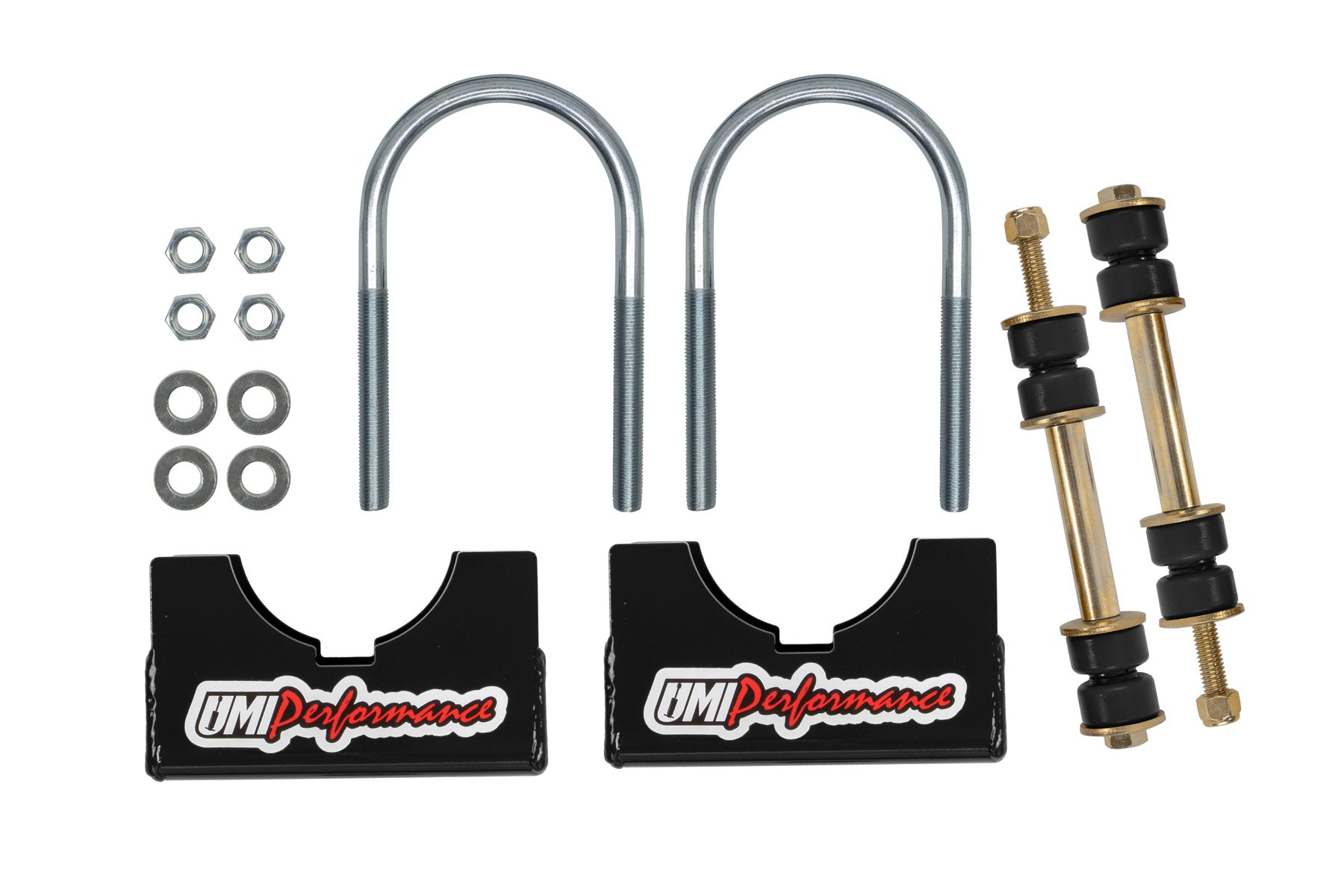

• CNC machined sway bar mounts
• Heavy-duty chrome moly u-bolts
• Longer High Quality polyurethane end links
• Polyurethane sway bar bushings
• Grip teeth on sway bar mounts
• Welded gussets on mounts
• Bolt-in application for 82-02 Camaro/Firebird models
• Universal fit for 19mm and 22mm sizes
• Compatible with rear ends from Strange Engineering, Currie, and Moser Engineering
• Versatile for other brand rear ends with varying axle tube diameters
• 3.25" clamp required for UMI billet sway bar mount or modifying factory mount
