2218 – 1982-1992 GM F-Body Tunnel Mounted Torque Arm, TH400

UMI’s tunnel-mounted Torque Arm kit fits TH400. Includes crossmember, adjustable torque arm, and pivot brackets for instant center tuning. Protects the transmission tail shaft and works with stock or Moser rear-end hardware.

Details

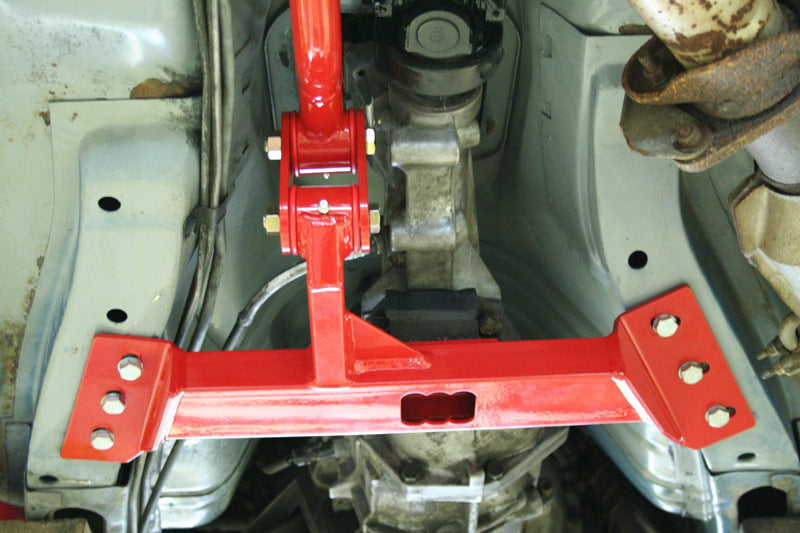

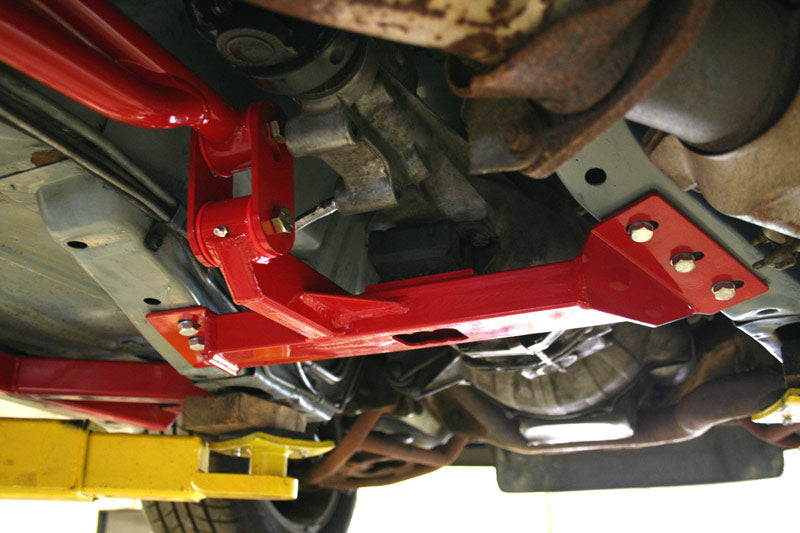

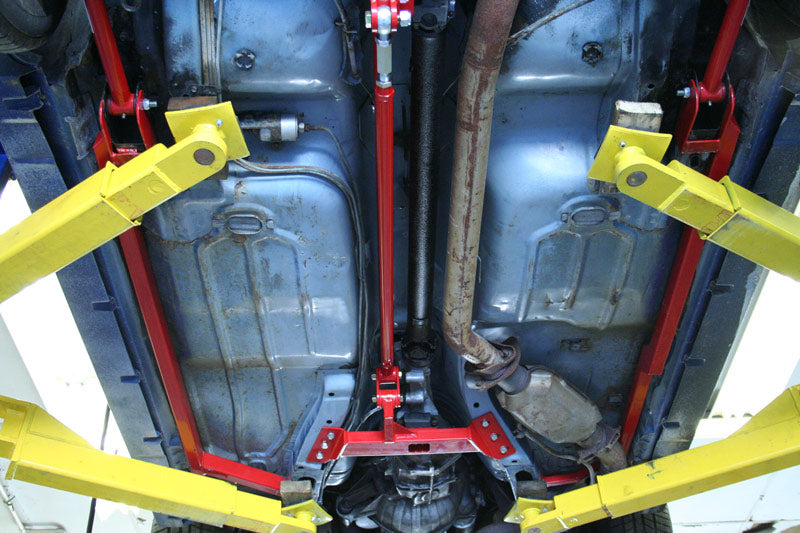

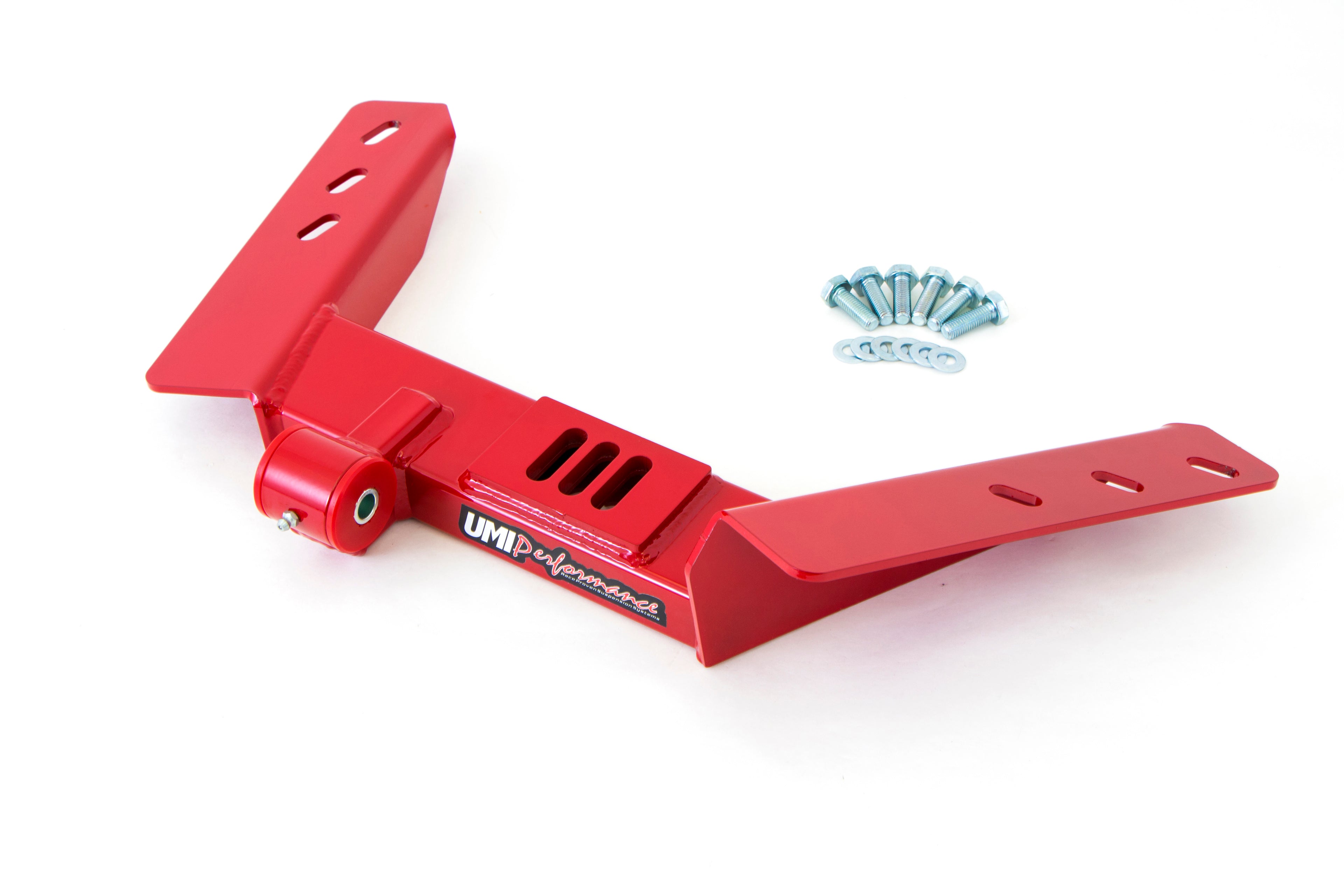

This tunnel-mounted torque arm is specifically designed for use with a TH400 (Short tail Only) transmission in an 82-92 Camaro or Firebird. The kit includes a transmission crossmember with provisions for the TH400 and a new adjustable torque arm. This setup allows for a straightforward bolt-in installation of the TH400 transmission. The torque arm setup removes the front mounting point of the torque arm from the transmission, protecting the tail shaft from damage. It also includes pivot brackets that allow for easy instant center adjustments, crucial for improving performance on low to mid horsepower cars. The set-up is constructed using high-quality materials, including CNC-machined mounting plates and Grade 8 hardware for durability. For those running the torque arm on stock rear-ends or similar designs, a Rear Torque Arm Hardware Kit is recommended for optimal performance. If using a Moser Engineering 12-Bolt rear-end, hardware supplied by Moser Engineering should be used. A separate kit is recommended for the Moser 9" rear-end.

Description

UMI Torque Arm kit for 82-92 Camaro/Firebird simplifies TH400 installs.

Short Description

Torque Arm

Application Summary

UMI designed 1982-1992 GM F-Body Camaro or Firebird with a TH400 Short Tail.

Features

• Protects transmission from damage
• Eliminates wheel hop and improves traction
• Reduces front end nose dive during braking
• Allows for on-car pinion angle adjustments
• Polyurethane bushings minimize road noise
• Grease-able pivot points with instant center adjustment
• Bolt-on design requires no welding or drilling
• Made of high-quality seamless steel tubing
• TIG welded chrome moly tube adaptors
• On-car adjuster for maximum strength
• CNC machined mounting plates for accuracy
• Rear mounting plates designed to fit various rear-end housings
• Durable powder coat finish for longevity
