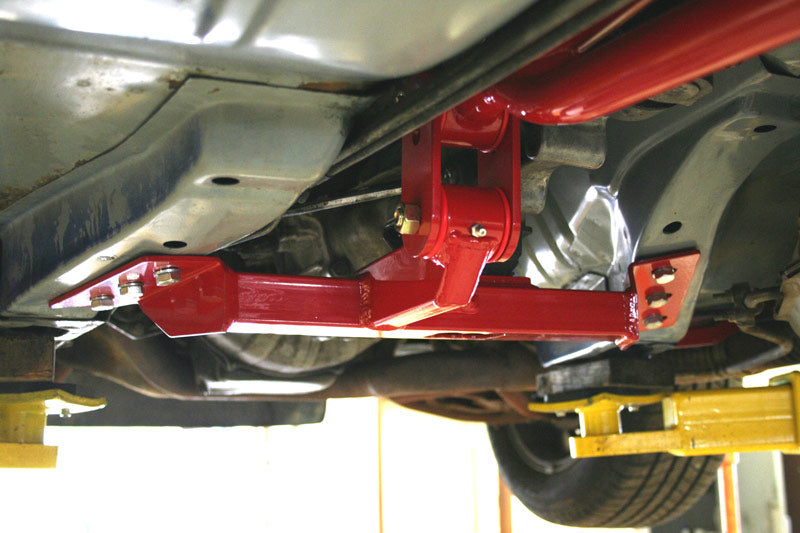

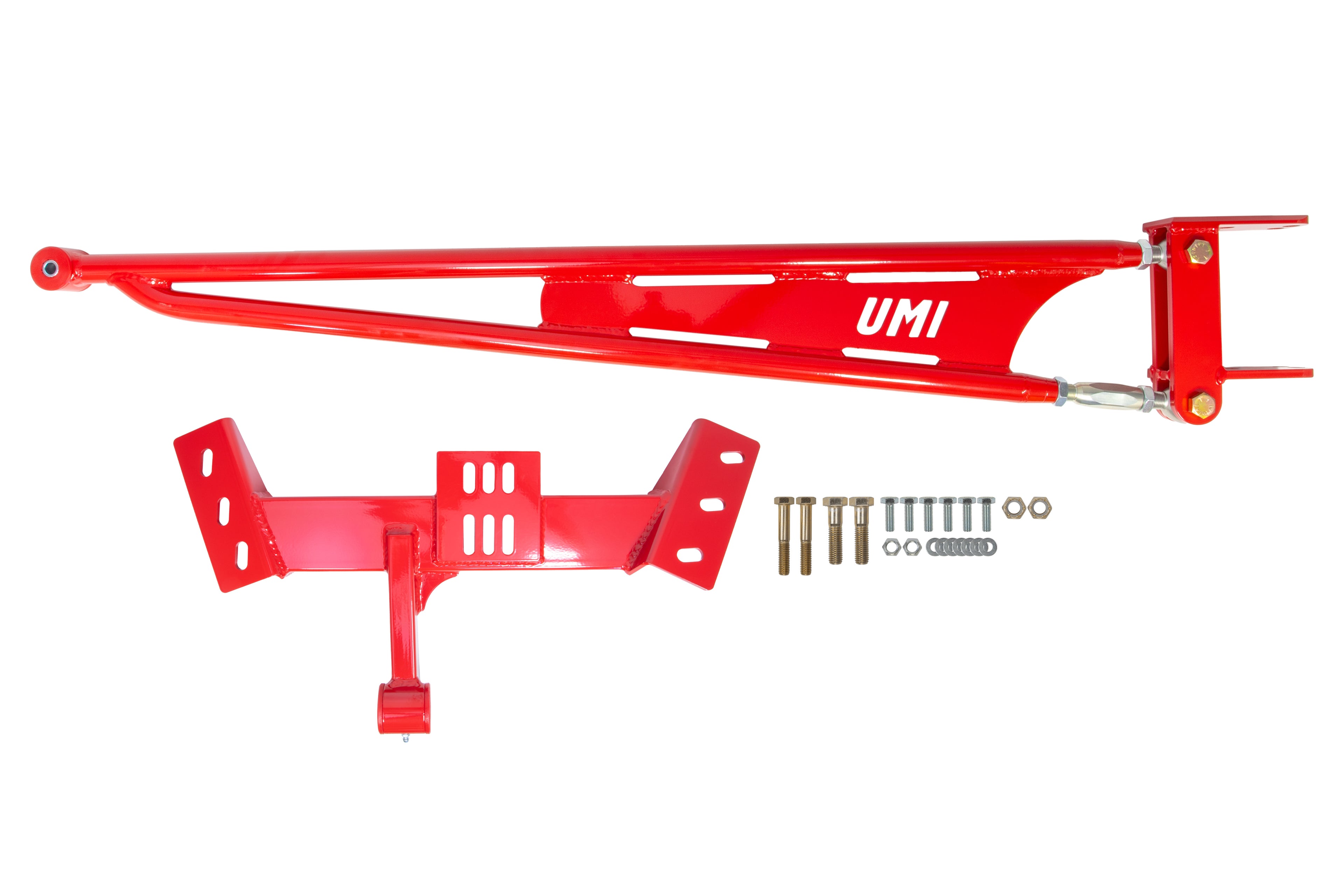

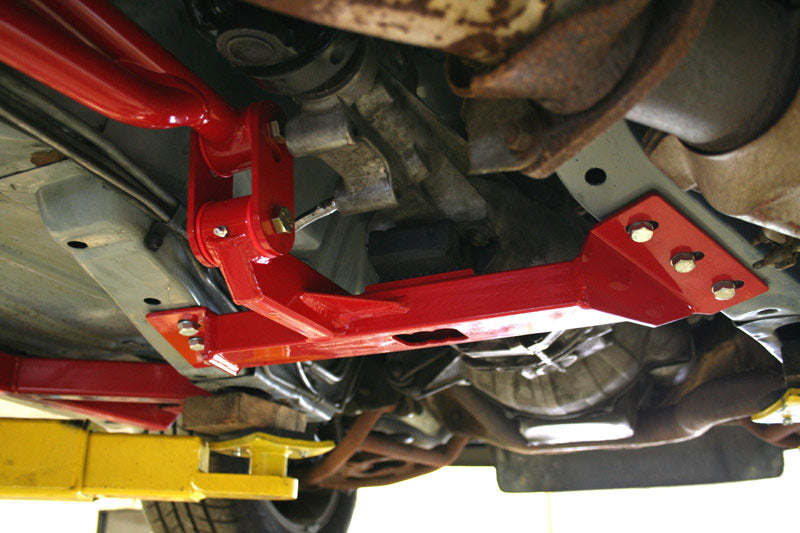

2214 – 1982-1992 GM F-Body Tunnel Mounted Torque Arm, TH350/T5

UMI’s TH350/T5 torque arm kit fits 82–92 Camaro/Firebird. Bolt-in design with pivot brackets allows instant center adjustment. Strong DOM steel, TIG welded, CNC plates. Improves traction, reduces wheel hop and nose dive.

Details

This torque arm is specifically designed to work with a TH350 transmission in an 82-92 Camaro or Firebird. It includes a transmission crossmember and a shorter, adjustable torque arm. The setup allows for a 100% bolt-in installation for the TH350 transmission, as well as the factory T5 5-speed transmission. The torque arm setup removes the front mounting point from the transmission tail shaft, protecting the transmission from damage. It comes with pivot brackets for easy instant center adjustments, which can improve vehicle performance, particularly for low to mid horsepower cars. The setup is easy to install with basic hand tools, as it bolts to existing floor pan holes. The construction is robust, with DOM seamless steel tubing, TIG welded chrome moly tube adaptors, and CNC machined mounting plates. The rear mounting points are compatible with stock, as well as aftermarket, rear-end housings. A hardware kit is recommended for certain rear-end designs to ensure proper fitment. Overall, this torque arm offers various benefits such as eliminating wheel hop, improving traction, and reducing front end nose dive during braking. It is a high-quality, durable solution for enhancing the performance of your vehicle.

Description

TH350/T5 torque arm kit, bolt-in, adjustable, durable, improves traction.

Short Description

Torque Arm

Application Summary

UMI designed 1982-1992 GM F-Body Camaro or Firebird.

Features

• Specifically designed for TH350 transmission in 82-92 Camaro or Firebird
• Includes transmission crossmember and shorter, adjustable torque arm
• 100% bolt-in installation for TH350 and factory T5 transmissions
• Removes front mounting point from transmission tail shaft to protect transmission
• Pivot brackets for easy instant center adjustments
• Improved vehicle performance for low to mid horsepower cars
• Easy installation with basic hand tools, bolts to existing floor pan holes
• Polyurethane bushings to reduce road noise
• On-car pinion angle adjustments
• Bolt-on design, no welding required
• Robust construction with DOM seamless steel tubing, TIG welded chrome moly tube adaptors, CNC machined mounting plates
• Rear mounting points compatible with stock and aftermarket rear-end housings
• Hardware kit recommended for certain rear-end designs
• Benefits include eliminating wheel hop, improving traction, reducing front end nose dive during braking
• High-quality, durable solution for enhancing performance of vehicle
