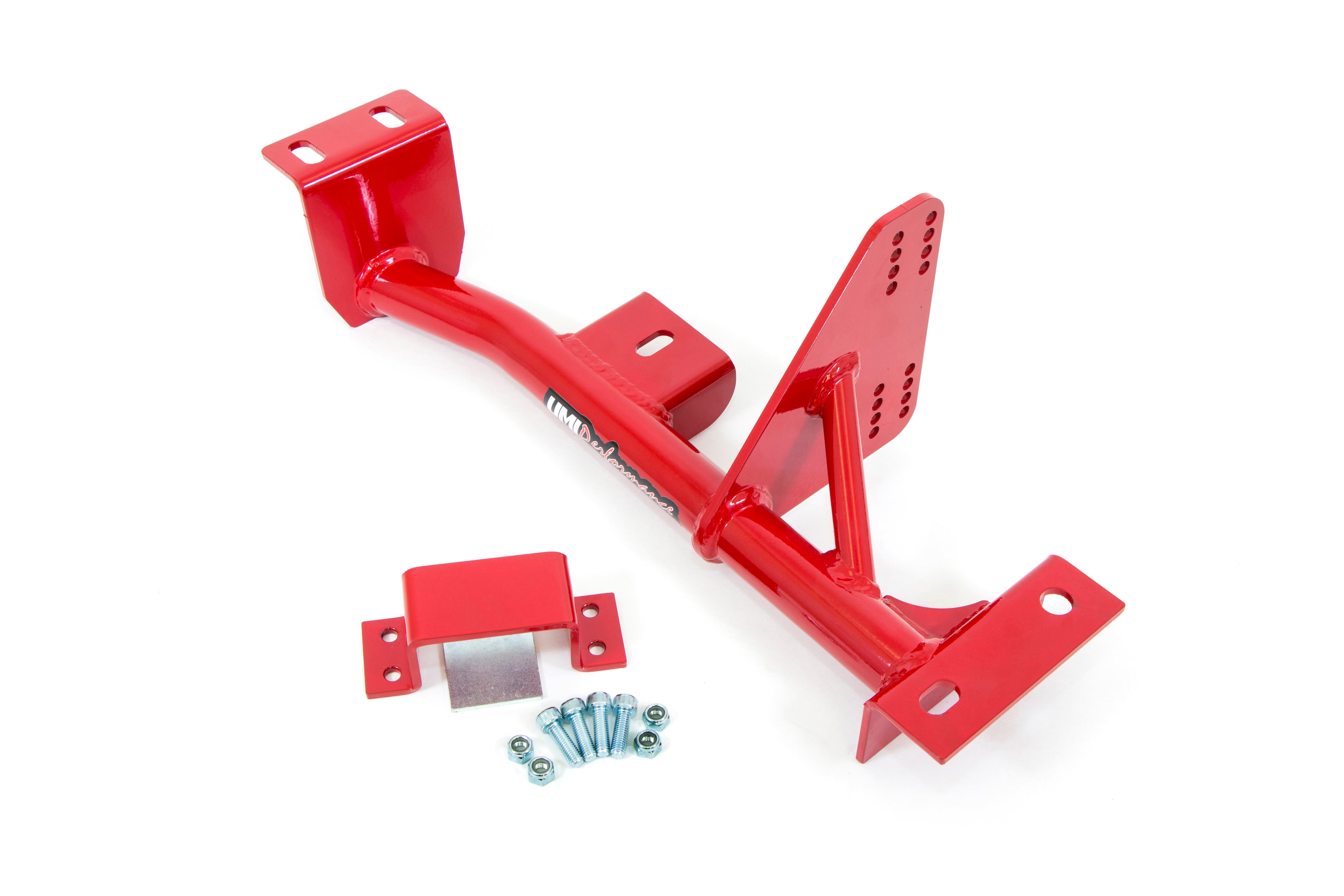

2213 - 1998-2002 GM F-Body Torque Arm Relocation Kit- TH400

Details

Installing a TH400 Automatic transmission into your 98-02 Camaro or Firebird just got easier. This cross-member with integrated torque arm mount features the correct provisions for mounting the TH400 transmission while still allowing the use of a factory style torque arm. The built in torque arm mount will work with virtually any stock style aftermarket torque arm as well as the factory torque arm and features instant center adjustment by moving the front of the torque arm up or down. This unit is built using DOM mild steel tubing, 0.188” mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. There is no need to purchase any other torque arm brackets when using this kit.

Description

2213 - 1998-2002 GM F-Body Torque Arm Relocation Kit- TH400

Short Description

Relocation Bracket

Product Info

Available Packages

Specifications

Fitment

Downloads

• Installation Instructions (PDF)
