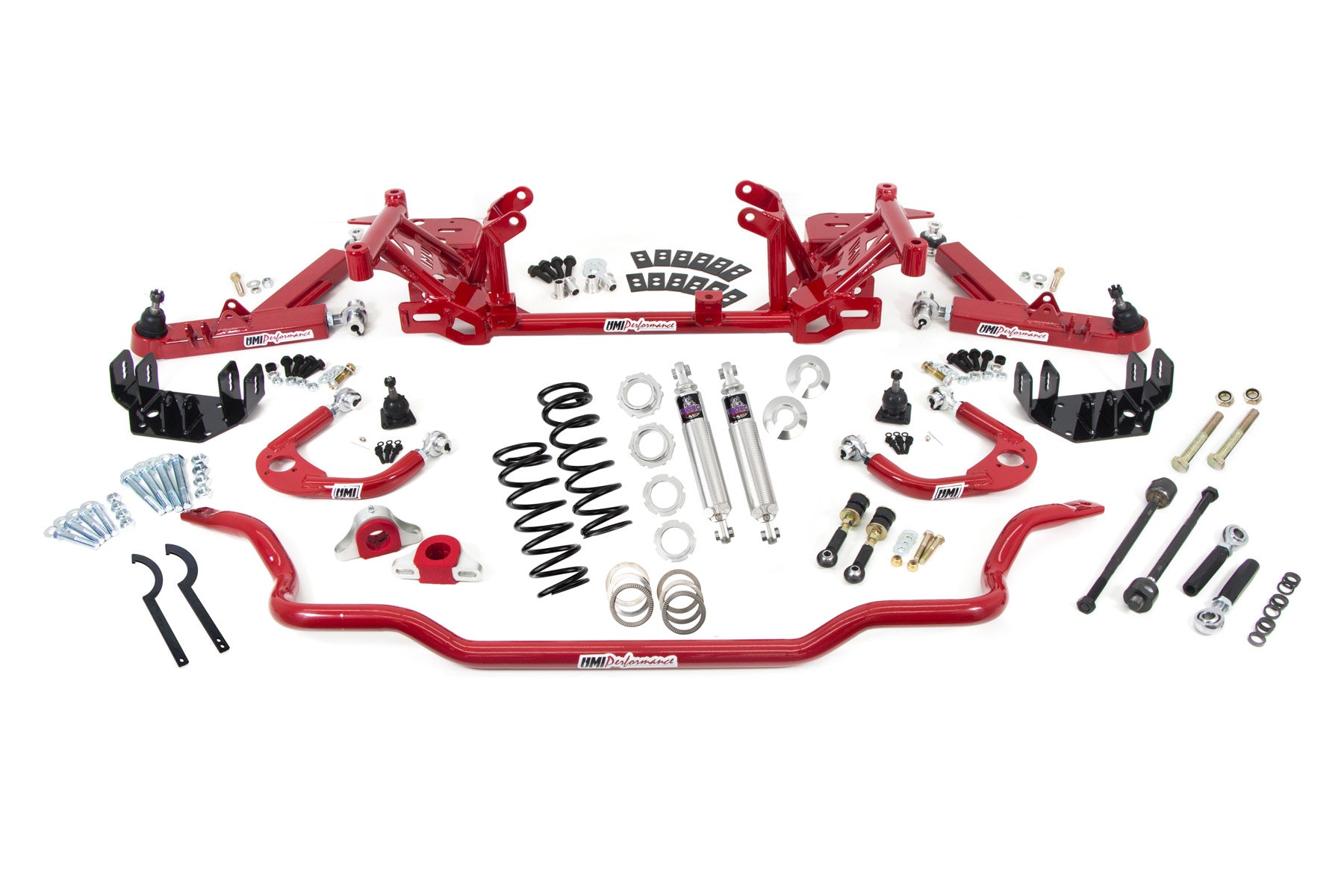

207207 – 1998–2002 GM F-Body Front End Kit, Corner Max

UMI Corner Max front end kit for 4th Gen. Viking triple-adjustable shocks, caster-corrected lower arms, adjustable upper A-arms, twin-tube K-member, bump steer kit, and 35mm sway bar. Enhances cornering for street, auto-x, & track use

Details

UMI's Corner Max front end kit is a complete solution for maximizing cornering performance on the 4th Gen platform. This kit includes Viking Crusader triple adjustable shocks, caster corrected boxed lower arms, adjustable tubular upper a-arms, bolt-in upper mounts, a twin tube k-member, a heavy-duty bump steer kit, and a 35mm tubular sway bar. Designed for auto-x, track days, and street corner carving, this kit is perfect for daily driving while significantly improving cornering performance.

Description

UMI Corner Max front end kit with Viking shocks and adjustable arms

Short Description

Corner Max Kit

Application Summary

UMI designed 1998-2002 GM F-Body vehicles.

Features

• Perfect for auto-x, track day cars, street corner carving, and daily driving
• Includes Viking Crusader triple adjustable shocks and Made In USA 850lb Hypercoils
• K-member features UMI's exclusive roll center optimization and saves 25 lbs off the front of the car
• A-arm geometry adds caster without affecting wheelbase
• Upper a-arm mount offers three pickup point choices for further optimizing roll center and camber gain
• Includes UMI light weight tubular 2112 sway bar (35mm)
• Heavy duty bump steer kit specifically designed for racing use (requires spindle drilling)
