Holley Sniper EFI Fuel Tank System 400 LPH 19-401

$807.95
SKU: 19-401

Availability: In stock

Handling Time: 30 Days

Details

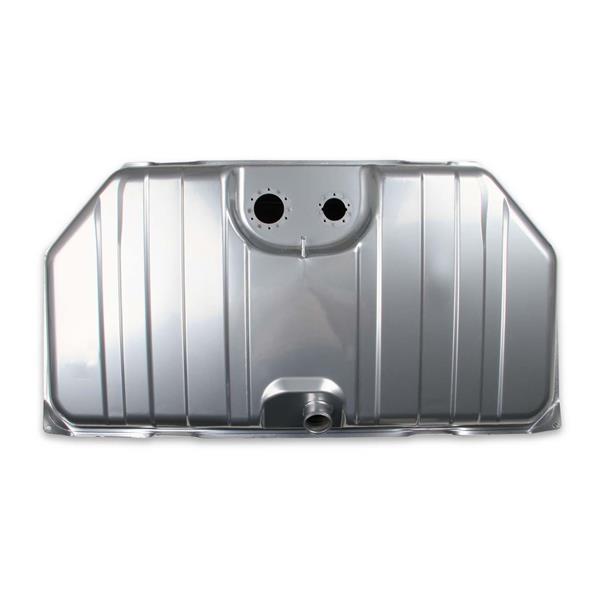

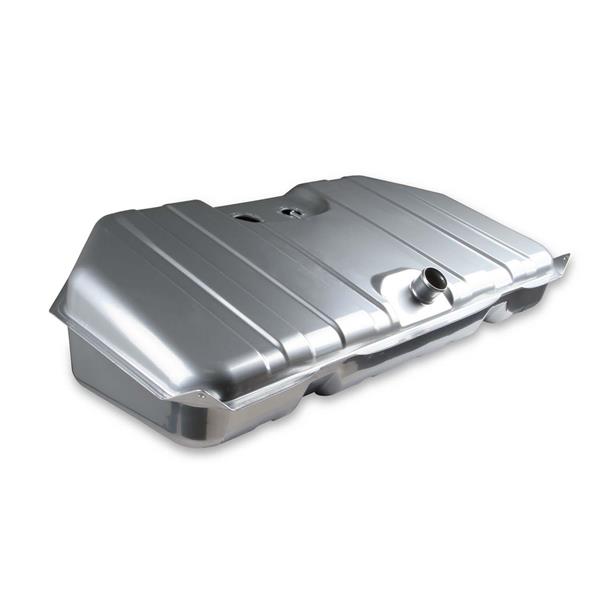

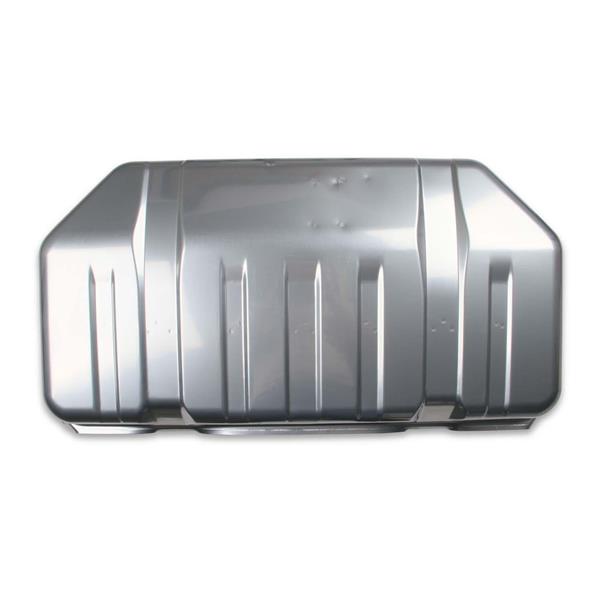

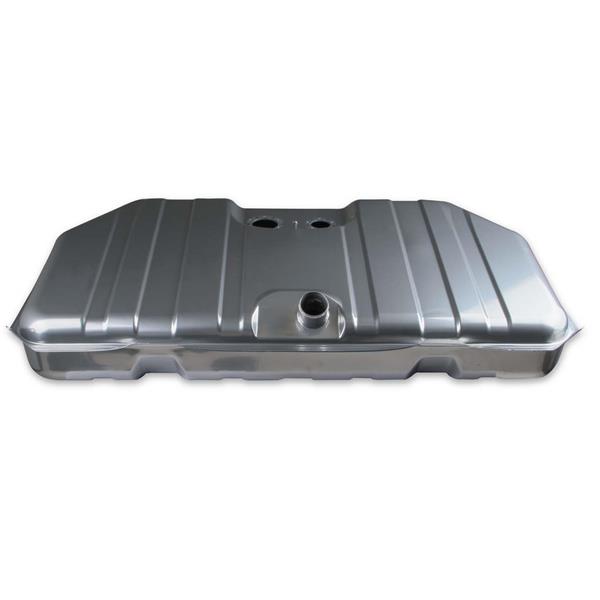

Sniper EFI Fuel Tank System 400 LPH

1967-68 Chevy Camaro / Firebird with notched front corners

Features:
Tanks are galvanized steel then powder coated silver for total corrosion protection

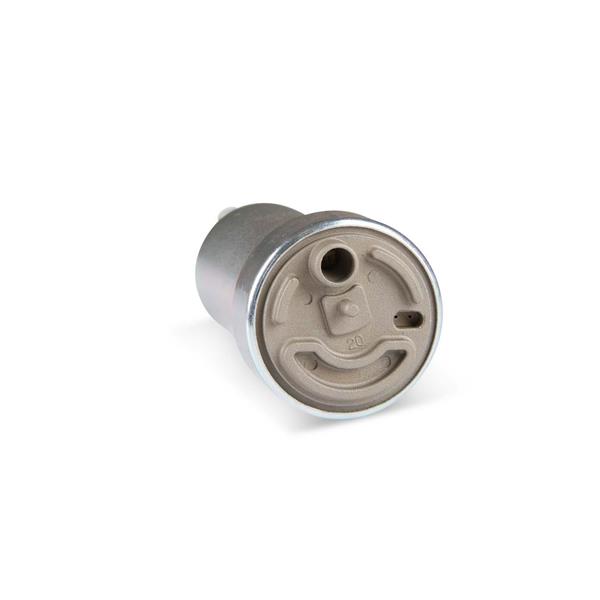

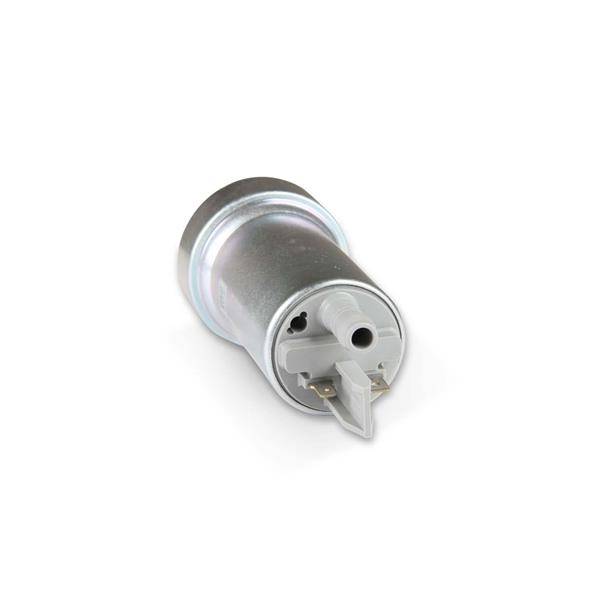

400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

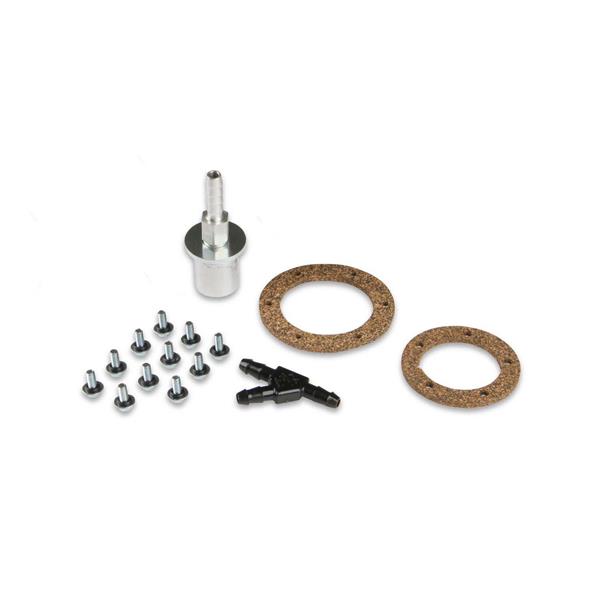

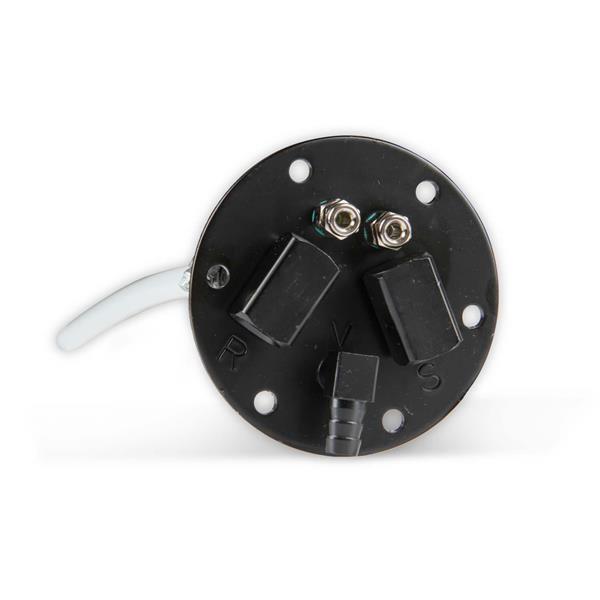

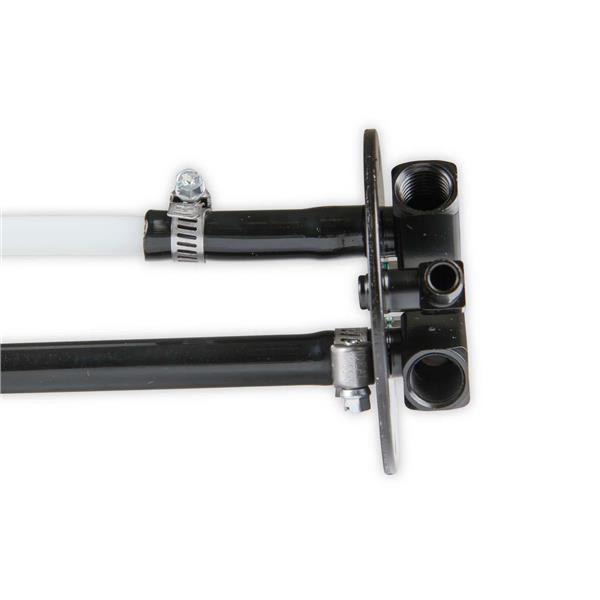

Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

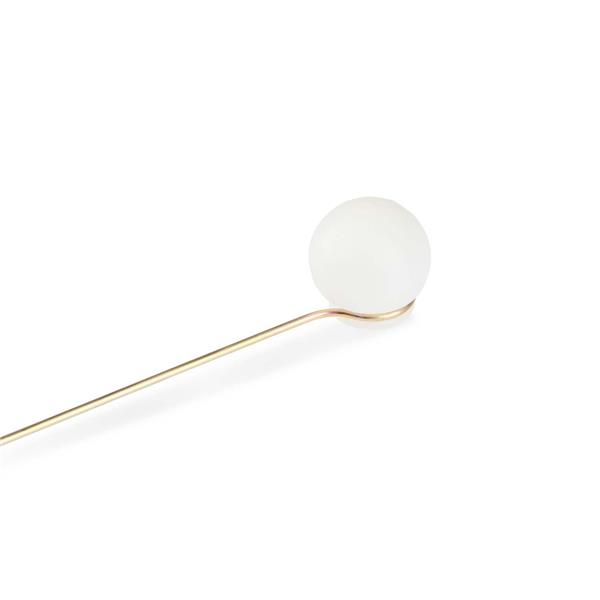

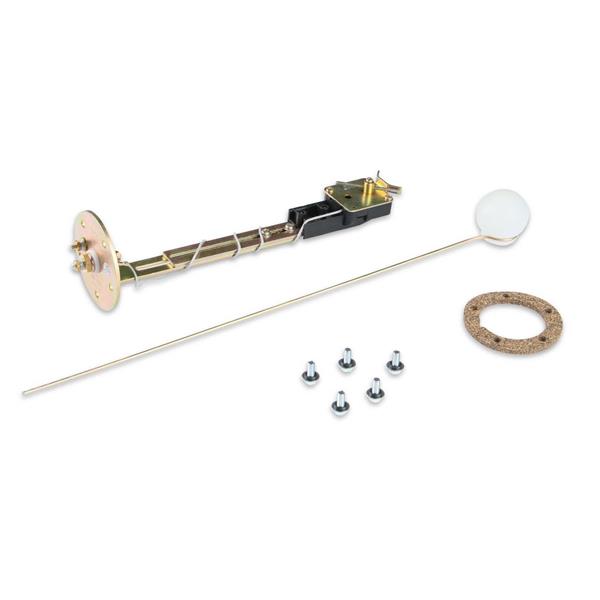

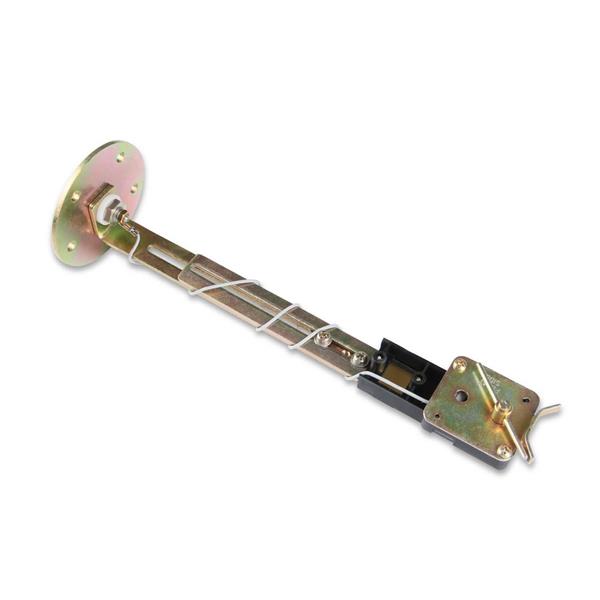

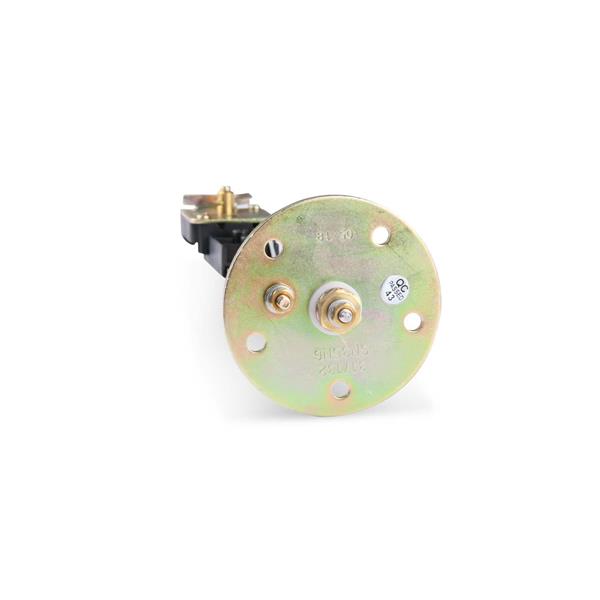

Fuel level sender included with the correct Ohm range for your factory gauges
Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
Fits and looks like an OE tank when installed
Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance

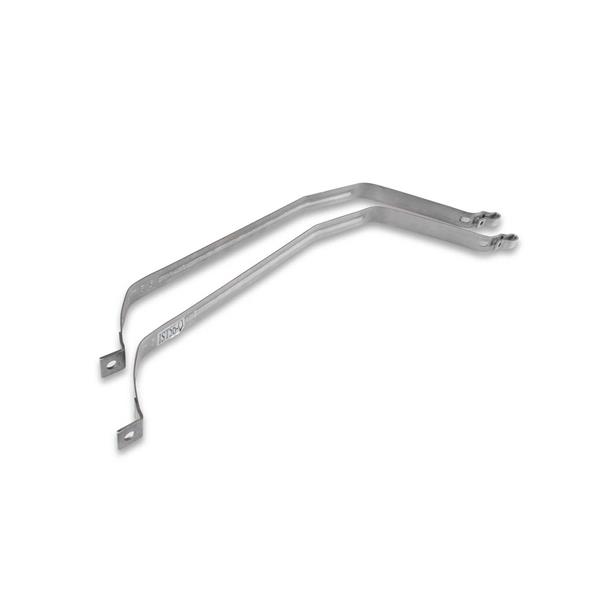

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 400 LPH fuel pump supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

Installation Note:***Steel filler neck that extends to rear valance is not included. You must use your existing stock filler neck or purchase one through restoration suppliers.
Size is: 39-3/8" x 20-7/8" x 8-3/4"

Specifications:

  • Application: 1967-1968 Camaro / Firebird
  • Brand: Holley Sniper EFI
  • Color: Silver
  • Drain Plug: No
  • Emission Code: 3
  • Finish: Powdercoated
  • Free Flow LPH: 400
  • Fuel Sending Unit Ohms: 0-90 Ohms
  • Fuel System Type: Gasoline
  • Gallon Capacity: 18
  • New Straps Included: No
  • Product Type: Fuel Tank
  • Warning: California Proposition 65
  • Warranty: Limited 90 Day
