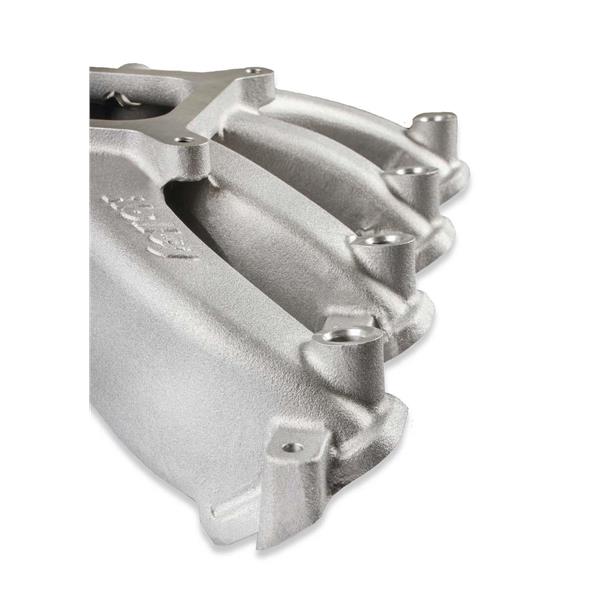

Holley Single Plane EFI Intake - GM LS7

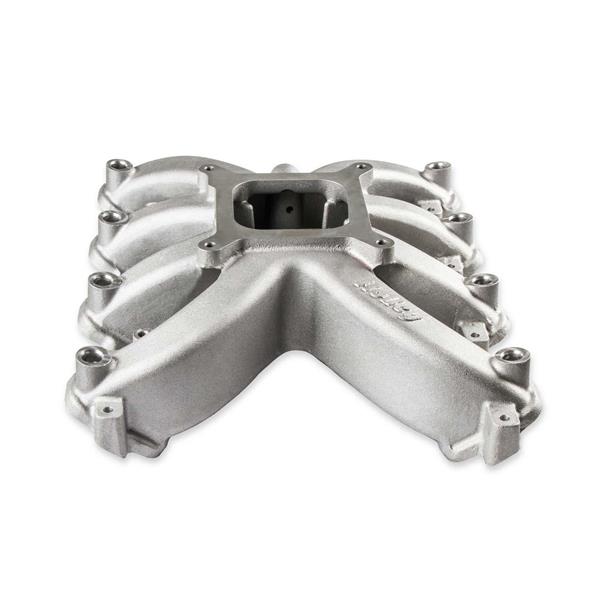

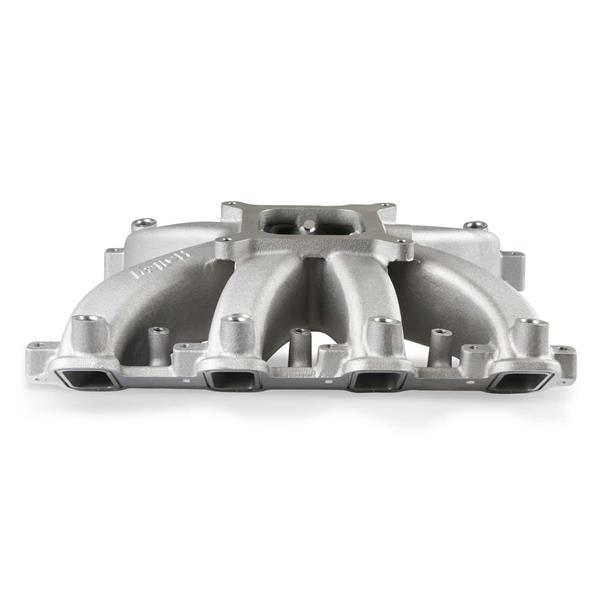

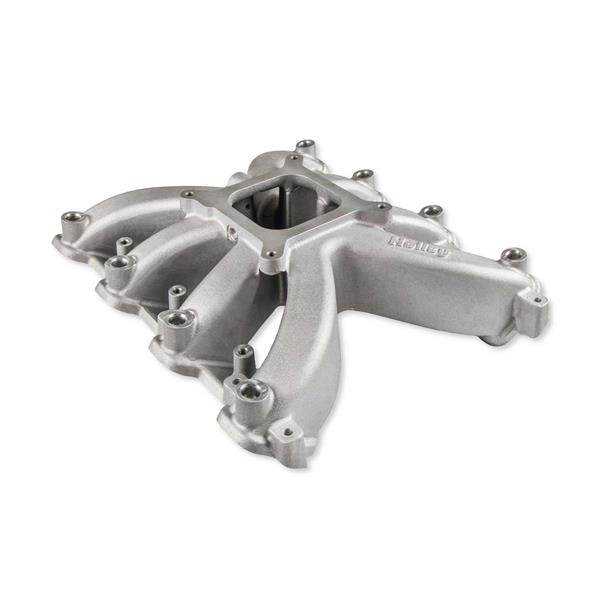

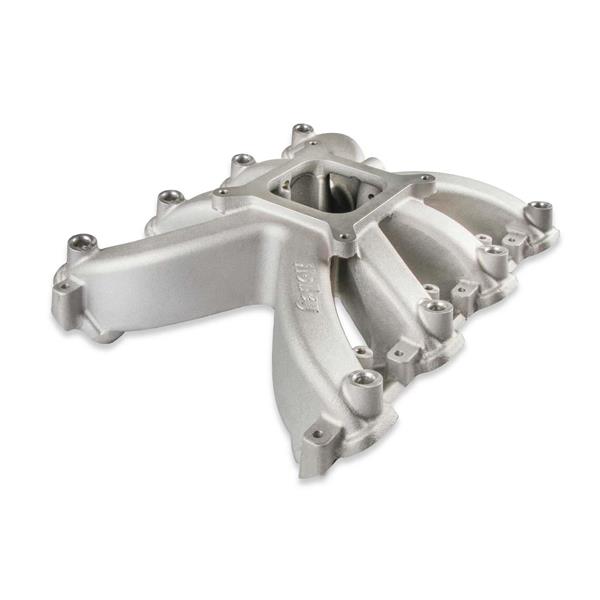

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads
Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads.
Designed with a 4150 Square bore flange. Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
Minimum carb flange height - fit in vehicles with minimum hood modifications. Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

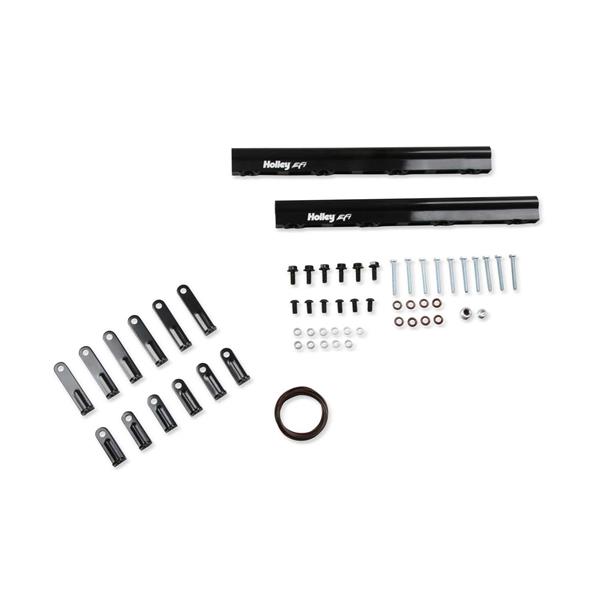

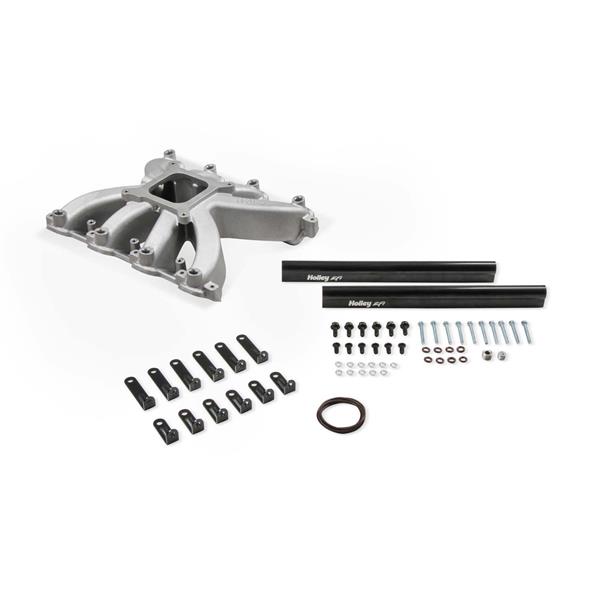

The manifold kit includes the fuel rails, mounting hardware, and o-ring cylinder head mounting flange gaskets.
Features:
- 2500-7000 RPM power band 0

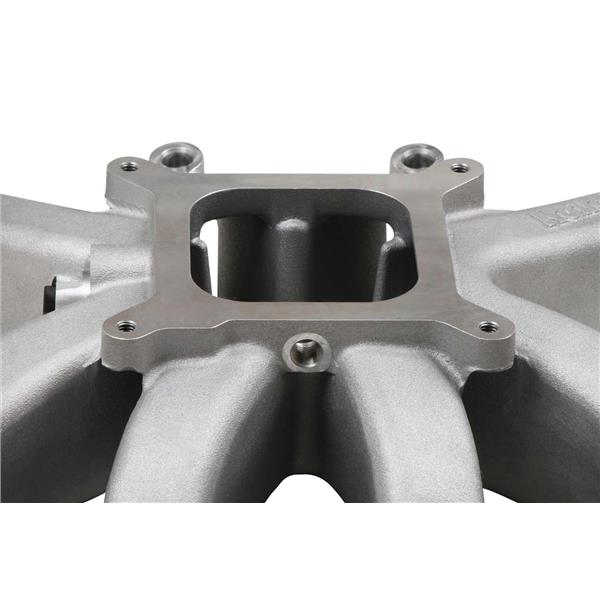

- 4150 Square bore flange 0
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM 0
- Minimum carb flange height - fit in vehicles with minimum hood modifications 0
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications 0
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality 0
- Weight - 11.5 lbs. 0
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange 0

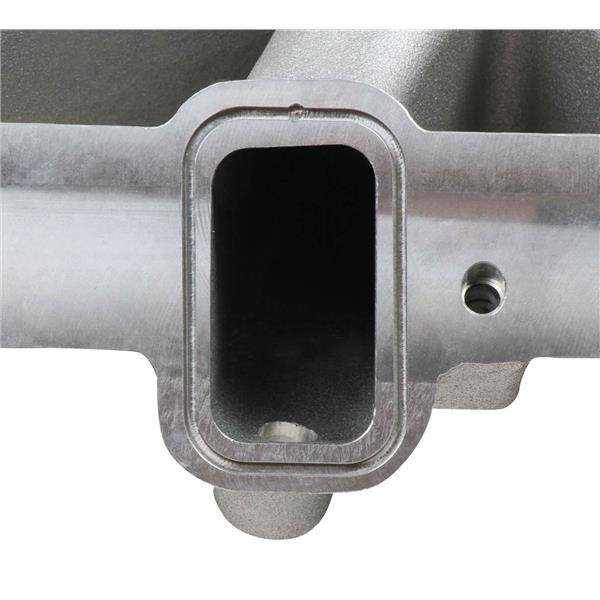

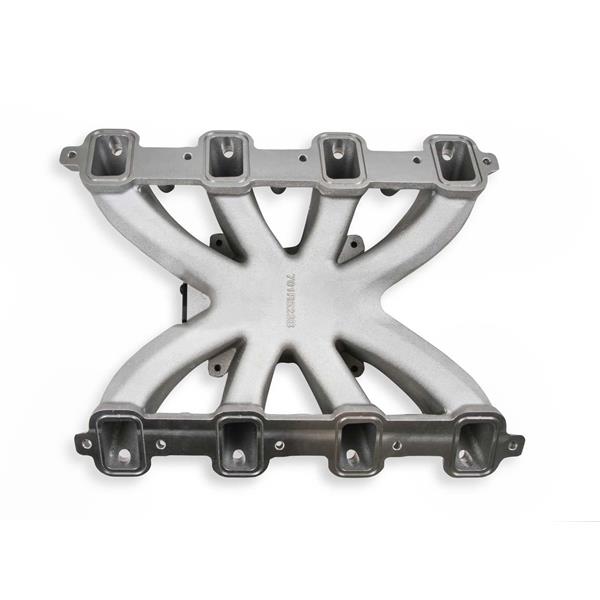

- Port size - 2.33" height x 1.27" wide 0
- Includes FKM o-ring intake to cylinder head gaskets
Installation Note:Includes fuel rails, mounting hardware, and O-ring cylinder head mounting flange gaskets.

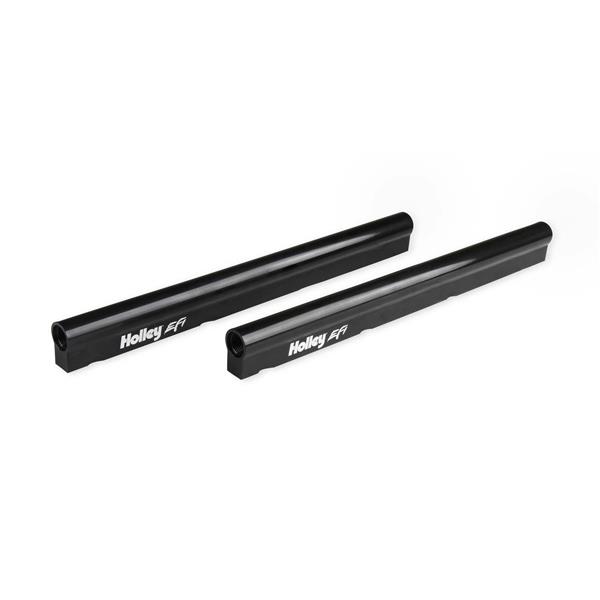

The included fuel rails are designed to accept Bosch Style EV-1 or GM OE LS7 fuel injectors.
Specifications:
- Brand: Holley EFI
- Color: Silver
- Construction: Cast
- Emission Code: 3
- Engine: GM LS7
- Finish: Satin
- Flange Style: 4150 Square Bore
- Front Height: 5.417 inch
- Fuel System Type: EFI
- Manifold Type: Single Plane
- Product Type: Manifold
- Rear Height: 5.417 inch
- RPM Power Band: 2500-7000
- Warranty: Limited 90 Day
