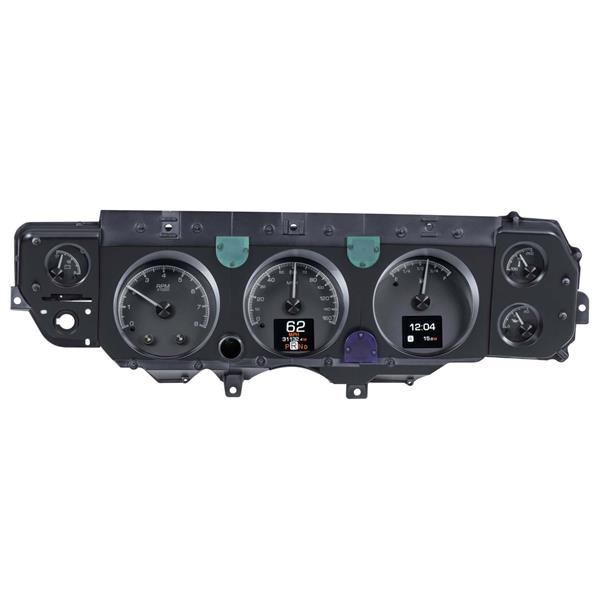

Dakota Digital 70-72 Chevelle SS Monte Carlo El Camino Gauge Kit Black Alloy HDX-70C-CVL-K

$1,230.25
SKU: HDX-70C-CVL-K

Availability: In stock

Handling Time: 30 Days

Details

To make sure you receive your package, all items $500 and over are sent signature required

Dakota Digital 1962-1965 Chevy II / Nova Analog Gauges Black Alloy HDX-63C-NOV-K
With Reproduction Dash Carrier

Chevy's first economy car is now a favorite for speed freaks of all kinds. The small instrument housing of the 1962-65 Chevy II isn't much to work with, but the HDX instrument system packs six analog readings with analog readouts, plus a full color TFT for additional information. Use your stock or reproduction bezel, available separately; can be used in 1962 models with the addition of 1962-65 bezel (included).

Available with your choice of black or silver alloy gauge-face styling, each HDX systemallows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!

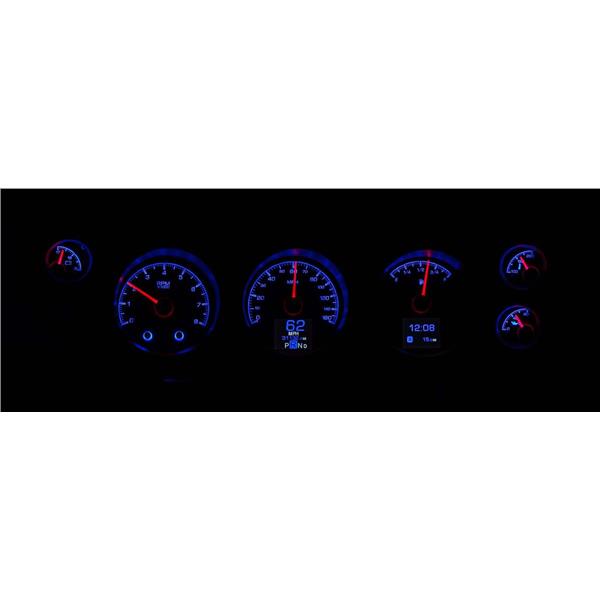

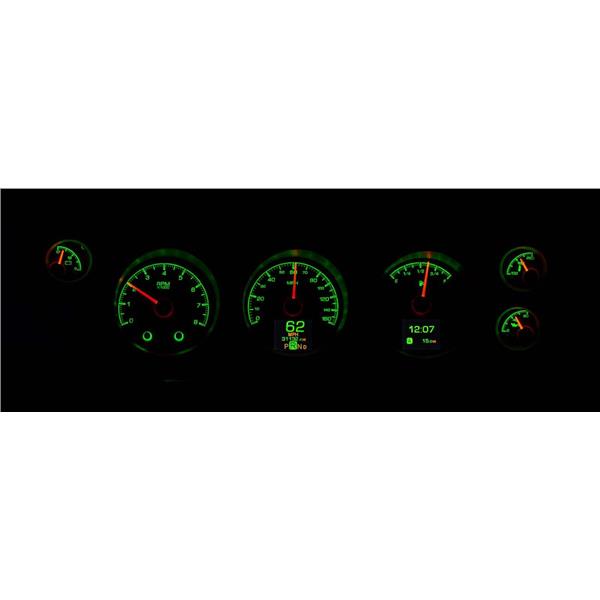

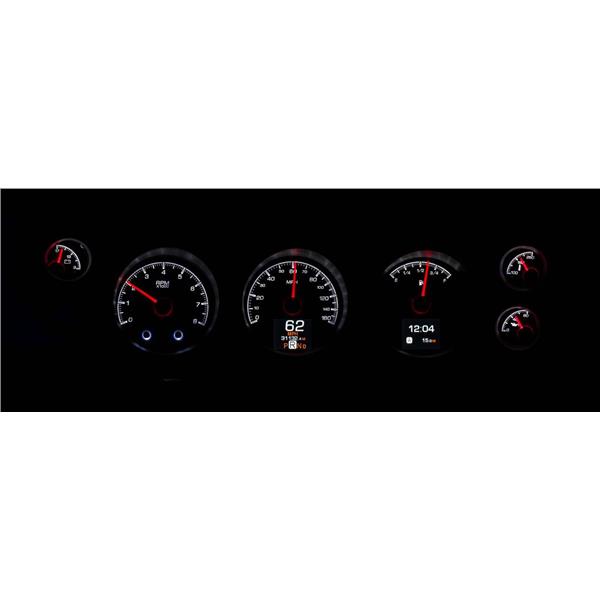

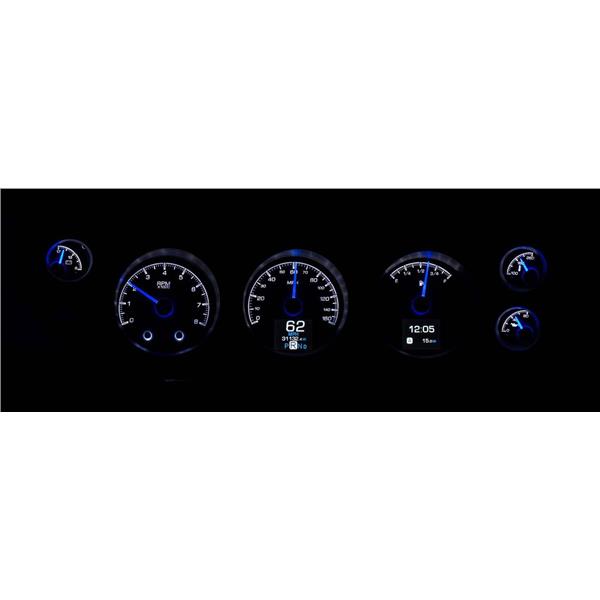

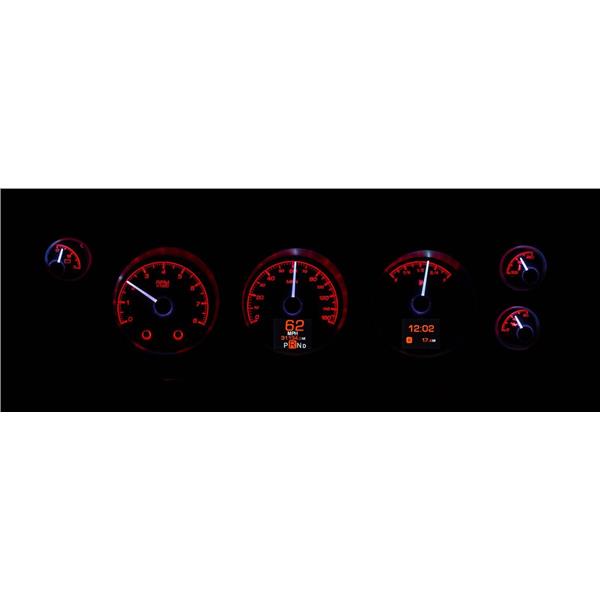

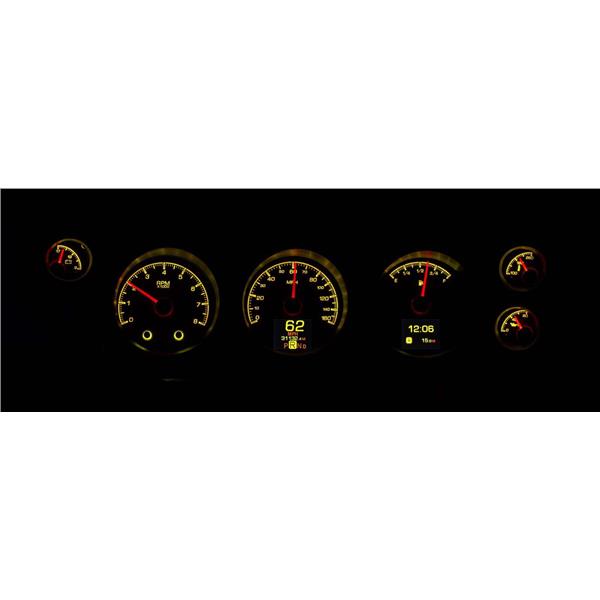

Available in Black or Silver Alloy Backgrounds
Please CLICK HERE to see all the color options for this item!

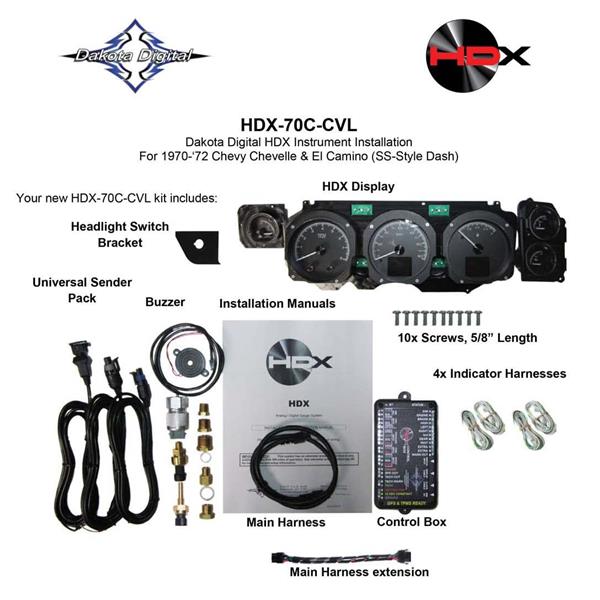

HDX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh) Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260F (optional metric version 40-120C)
Fuel Level - E, 1/4, 1/2, 3/4, F (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)
Voltmeter - 9-17 VDC

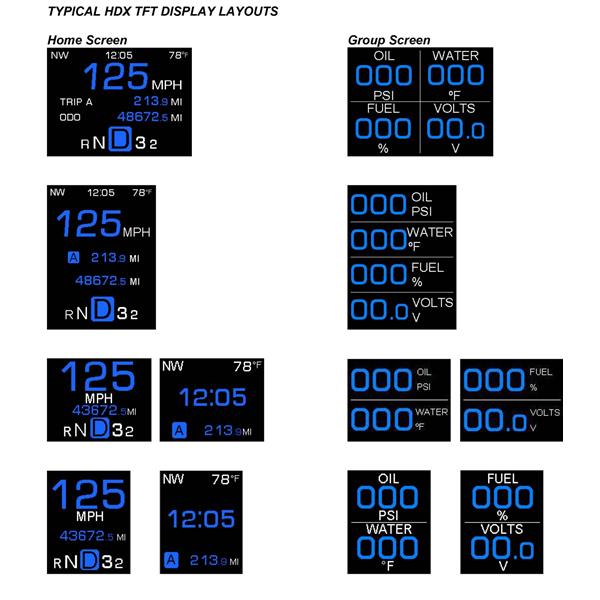

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Estimated Range/Miles to Empty

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300F / 40-150C displayed in 1F/C increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

CLICK HERE - to see all of the Upgrade Options!

Fitment Details

Year Make Model Trim Engine Notes
1970 Chevrolet Chevelle SS Hardtop 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS Hardtop 2-Door 6.5L 396Cu. In. V8 GAS Naturally Aspirated
1970 Chevrolet Chevelle SS 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS Hardtop 2-Door 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS 6.5L 396Cu. In. V8 GAS Naturally Aspirated
1970 Chevrolet Chevelle SS Hardtop 2-Door 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS Hardtop 2-Door 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS Hardtop 2-Door 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet Chevelle SS 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 6.6L 400Cu. In. V8 GAS Naturally Aspirated
1971 Chevrolet Chevelle SS 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet Chevelle SS 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet Chevelle SS 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated
1972 Chevrolet Chevelle SS 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet Chevelle SS 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet Chevelle SS 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet Chevelle SS 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 454Cu. In. V8 GAS Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 400Cu. In. V8 GAS Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1970 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 454Cu. In. V8 GAS Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 6588CC 402Cu. In. V8 GAS Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1971 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 6588CC 402Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 6588CC 402Cu. In. V8 GAS Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 6.6L 400Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1972 Chevrolet El Camino SS Standard Cab Pickup 2-Door 7.4L 454Cu. In. V8 GAS Naturally Aspirated
