Made in the USA!
Dakota Digital 1957 Ford Car Analog Gauges Black Alloy Blue VHX-57F-K-B
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
The new VHX Systems fit directly into the stock dash of a 1957 Ford Full-size Car without modification (does not fit Thunderbird). Included in this kit are new fully machined chrome trim for the upper arched gauge, as well as the rectangular odometer opening.
*Factory dash and Oil and Generator bezels and lens not included.
Please CLICK HERE to see all the color options for this item!

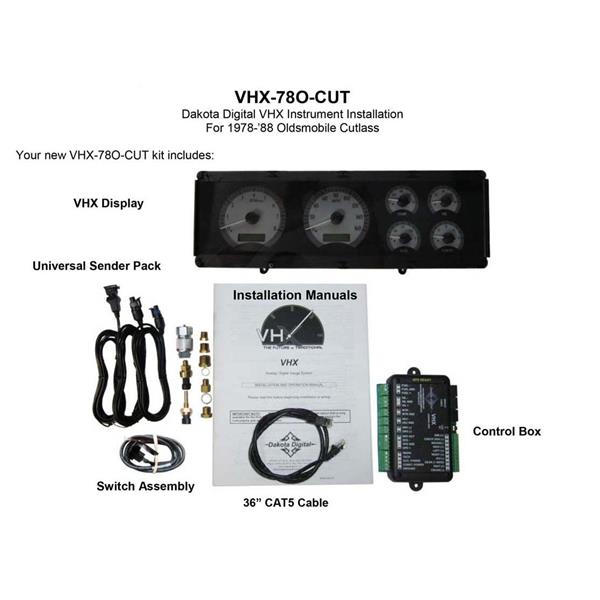

VHX System Includes:

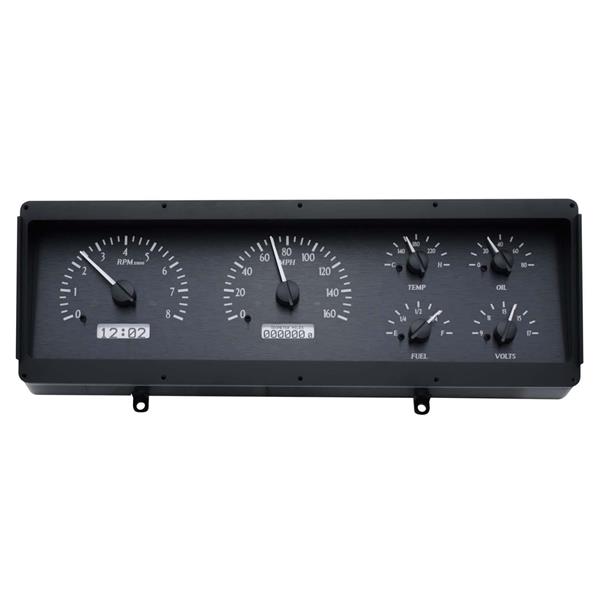

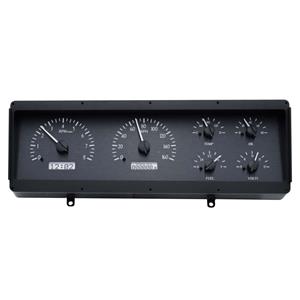

Analog Gauges
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260F (optional metric version 40-120C)
Fuel Level - E, 1/4, 1/2, 3/4, F (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)
Voltmeter - 9-17 VDC

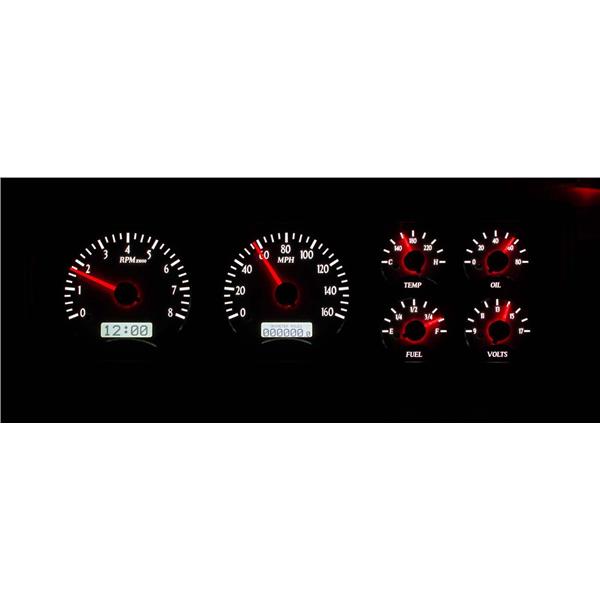

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Standard Displays:
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Performance Meters:
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Gauges:
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300F / 40-150C displayed in 1F/C increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Built-In Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Included Sensors:
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).
Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.
Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.
Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.
CLICK HERE - to see all of the Upgrade Options!
Fitment Details
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| 1978 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1978 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1978 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1978 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1978 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1979 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1980 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1981 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.4L 267Cu. In. V8 GAS Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.4L 267Cu. In. V8 GAS Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.4L 267Cu. In. V8 GAS Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.3L 260Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.4L 267Cu. In. V8 GAS Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1983 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1984 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | LS Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1985 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1986 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | 442 Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Brougham Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Brougham Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | Base Sedan 4-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1987 | Oldsmobile | Cutlass Supreme | 442 Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | Base Coupe 2-Door | 2.8L 173Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | SL Coupe 2-Door | 2.8L 173Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | Classic Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | Classic Brougham Coupe 2-Door | 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | Indy 500 Pace Car Convertible 2-Door | 2.8L 173Cu. In. V6 GAS OHV Naturally Aspirated | |
| 1988 | Oldsmobile | Cutlass Supreme | International Coupe 2-Door | 2.8L 173Cu. In. V6 GAS OHV Naturally Aspirated |
