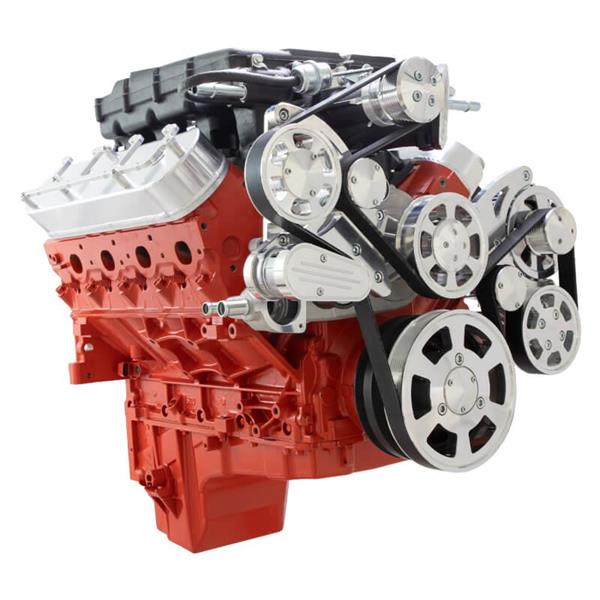

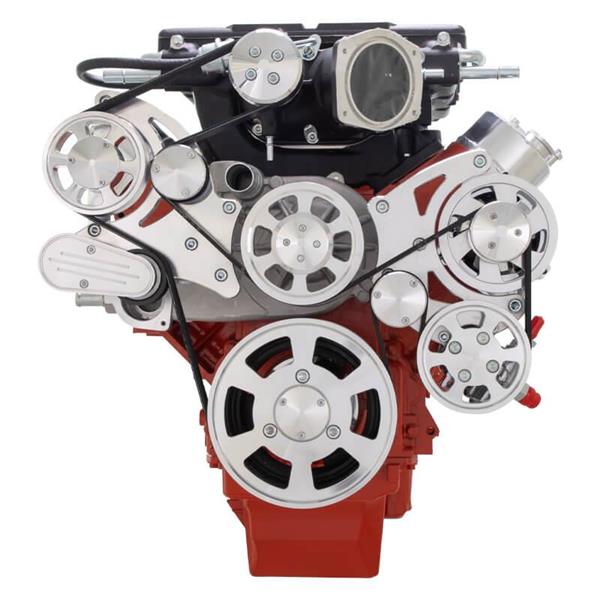

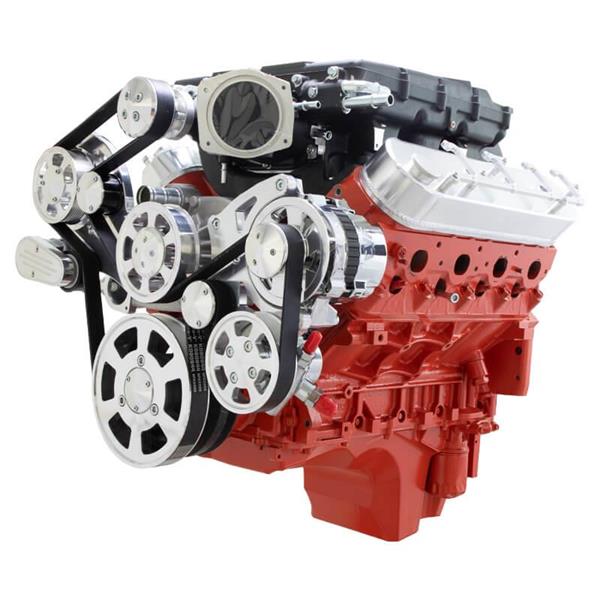

Chevy LS Serpentine Kit
Power Steering Applications for Whipple Supercharger
All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!
The WRAPTORTM 8 Track Serpentine System for kit Chevy LSA and LS9 engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.
Kit Includes:
- High Flow Aluminum Water Pump
- GM Type II Power Steering Pump
- 140 Amp, 1-Wire CS130 Alternator
- Polished Remote Mount Reservoir with Mounting Bracket
- Gates Premium Green Strip 8 Rib Belt
- 8 Rib Water Pump Pulley
- 8 Rib Crank Pulley
- 8 Rib Alternator Pulley
- 8 Rib Power Steering Pulley
- Gates Spring Loaded Idler Pulley
- Passenger Side Compressor Bracket
- Driver Side Power Steering / Alternator Bracket
- Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
- Billet alternator fan
- Blower Snout Hub Adapter
- Blower Pulley with Cap
Application Notes:
- Blower Pulley ratio at 2.22"
- Peak boost at 6500RPM 14psi
- Power Steering Lines from pump to reservoir not included
- Some drive by wire applications may require Holley part# 717-15
