Details
Chevy LS Engine High Mount Serpentine Kit for AC
Alternator Applications
Fits LS1, LS2, LS3, LS6 & LS7 Engines
Call for compatibility with Variable Valve Timing, VVT
All Inclusive Kit! Includes Hub Adapter, Belts, AC Fitting and More!

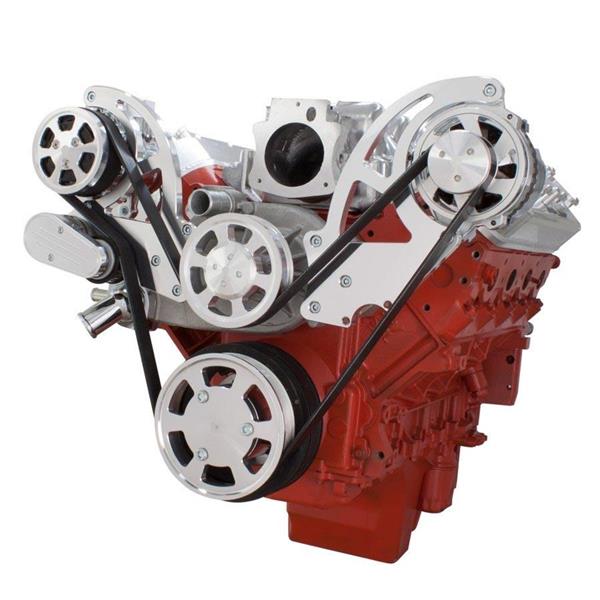

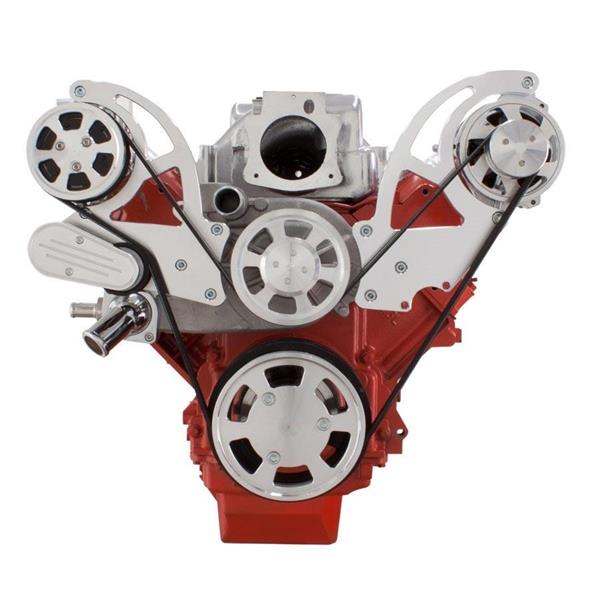

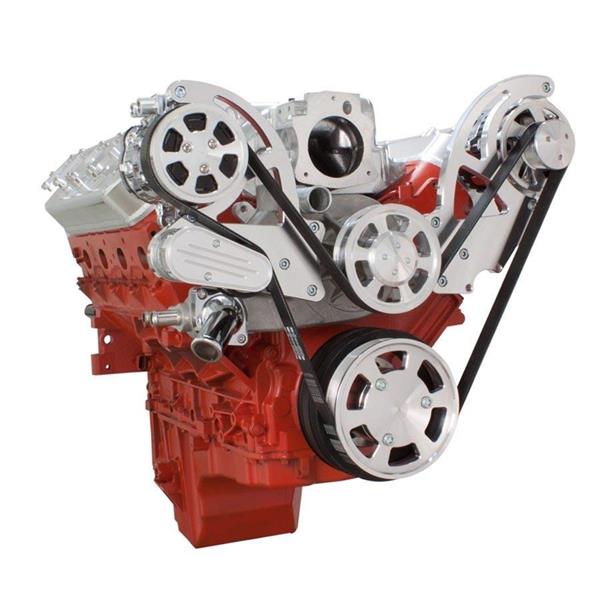

WRAPTORTM 8 Track Serpentine System for Chevy LS engines with Air Conditioning and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add power steering in the future just by purchasing the power steering pulley and pump. Mounts Sanden Style Peanut AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.
Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp, 1-Wire CS130 Alternator
- Sanden Style Peanut Compressor with 8 Rib Clutch
- Polished AC Compressor Fitting
- Gates Premium Green Strip 8 Rib Belt
- 8 Rib Water Pump Pulley
- 8 Rib Crank Pulley
- 8 Rib Alternator Pulley
- Gates Spring Loaded Idler Pulley
- Passenger Side Compressor Bracket
- Driver Side Alternator Bracket
- Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
- Billet Compressor Clutch Cover
- Billet alternator fan
Application Notes
- Kit designed to work with Meziere LSX High Flow electric water pumps
- Some drive by wire applications may require Holley part# 717-15
- Not compatible with 102mm intake
Notes: Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
