Details

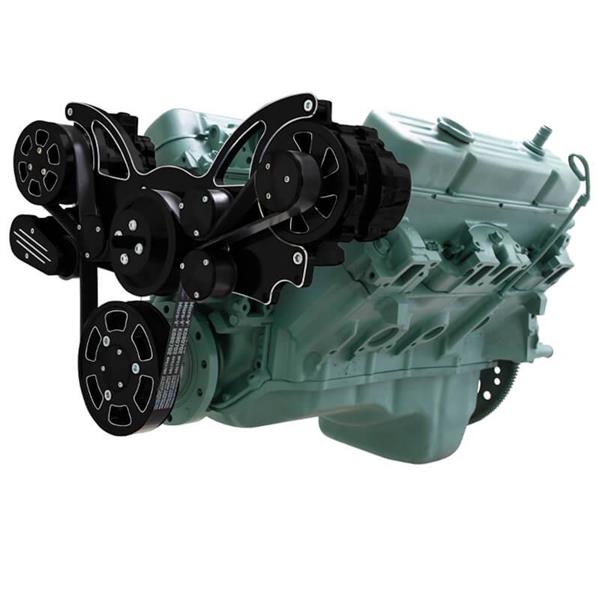

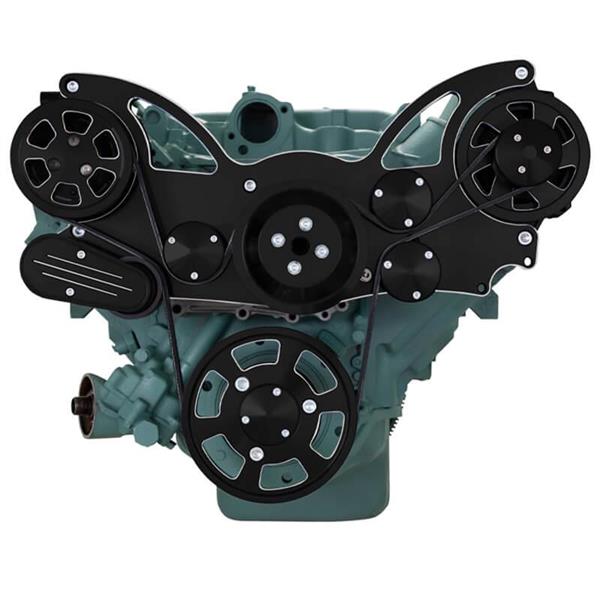

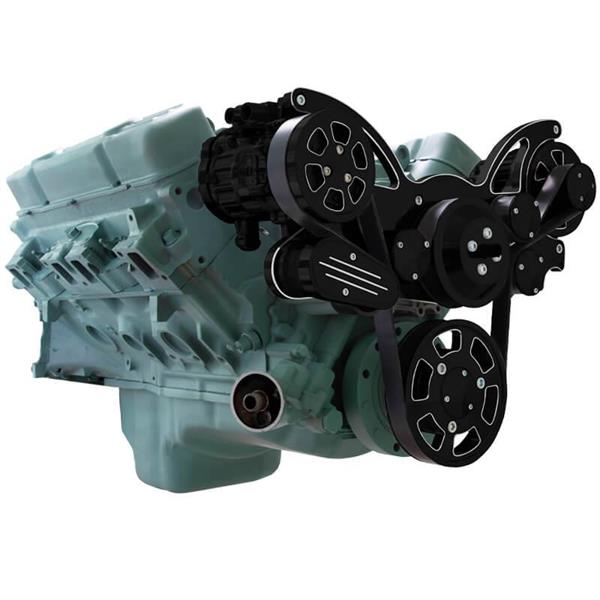

Black Diamond Buick Serpentine Conversion Kit
Air Conditioning, Power Steering and Alternator
All Inclusive WRAPTORTM 8 Track Serpentine System for Buick engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- Powder Coated AC Compressor
- AC Compressor Clutch Cover - Anodized Billet Aluminum
- Remote Mount Reservoir with Bracket - Anodized Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover - Anodized Billet Aluminum
- Crank Pulley - Anodized Billet Aluminum
- Crank Pulley Spacer - Anodized Billet Aluminum
- Alternator Pulley & Cover - Anodized Billet Aluminum
- One Piece Billet Aluminum Bracket - Anodized Billet Aluminum
- Universal Alternator Fan - Anodized Billet Aluminum
Application Notes:
- Long Body 1971-1976 Water Pump with 4 1/8" Hub Height & 0.625 Pilot-1" tall - such as Murray CP1045
- A/C specific clutch fan needed for water pump pilot
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 1971-1976 with 4 1/8" Hub Height & 0.625 Pilot-1" tall
