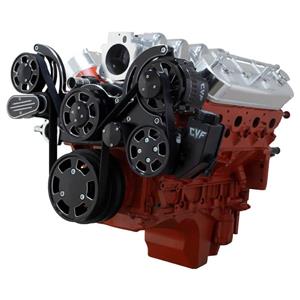

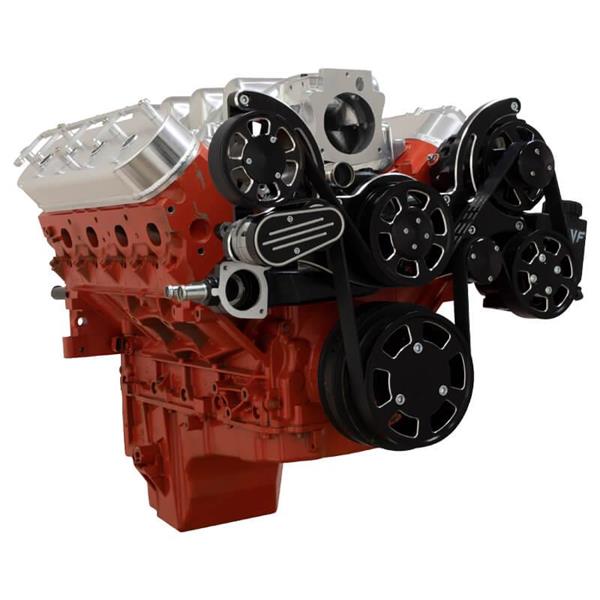

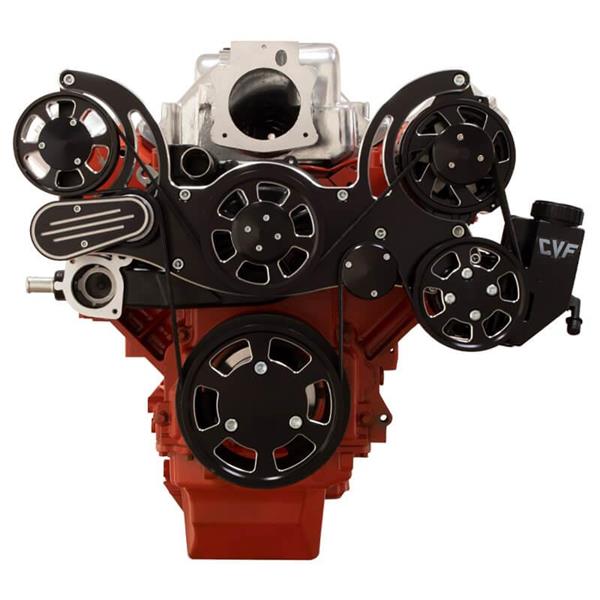

CVF Racing Black Diamond Chevy LS Mid Mount Serpentine Kit - Power Steering & Alternator

$1,975.00
SKU: BD-LSXM-WRAPTOR-PS

Availability: In stock

Handling Time: 30 Days

Details

Black Diamond Chevy LS Engine Mid Mount Serpentine Kit
Power Steering & Alternator Applications

Fits LS1, LS2, LS3, LS6 & LS7 Engines
Call for compatibility with Variable Valve Timing, VVT

All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

WRAPTORTM 8 Track Serpentine System for Chevy LS engines with Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add AC in the future just by purchasing the compressor and compressor cover. Mounts GM Type II Power Steering pump on driver's side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

Kit Includes:
  • High Flow Aluminum Water Pump
  • 140 Amp, 1-Wire CS130 Alternator with side mount post
  • GM Type II Power Steering Pump
  • Polished Remote Mount Reservoir with Mounting Bracket
  • Gates Premium Green Strip 8 Rib Belt
  • 8 Rib Water Pump Pulley
  • 8 Rib Crank Pulley
  • 8 Rib Alternator Pulley
  • 8 Rib Power Steering Pulley
  • Gates Spring Loaded Idler Pulley
  • Single Bracket
  • Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
  • Billet alternator fan
Application Notes:
  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydroboost
  • Some drive by wire applications may require Holley part# 717-15
  • Will work with optional Variable Valve Timing (VVT) configuration
  • Not compatible with 102mm intake

Notes: Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
