Details

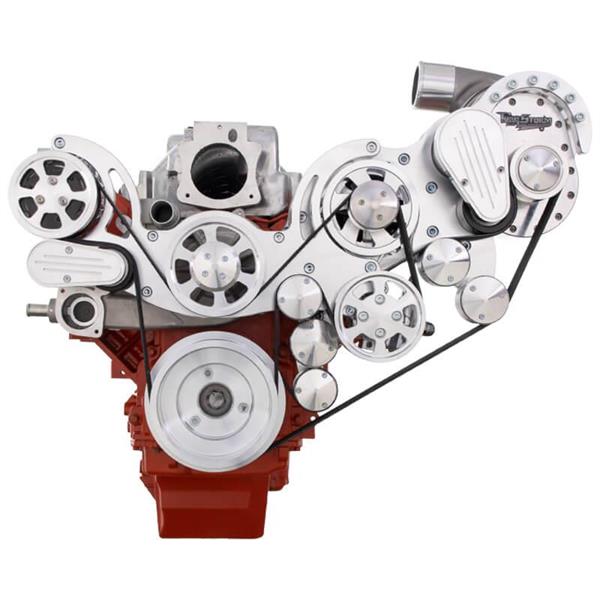

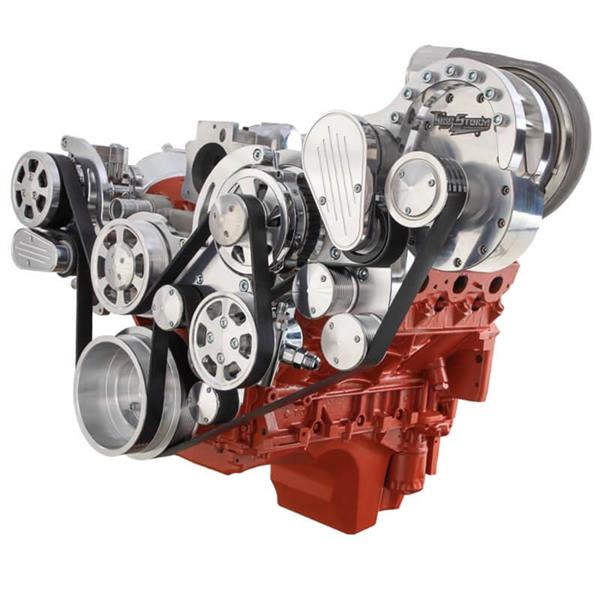

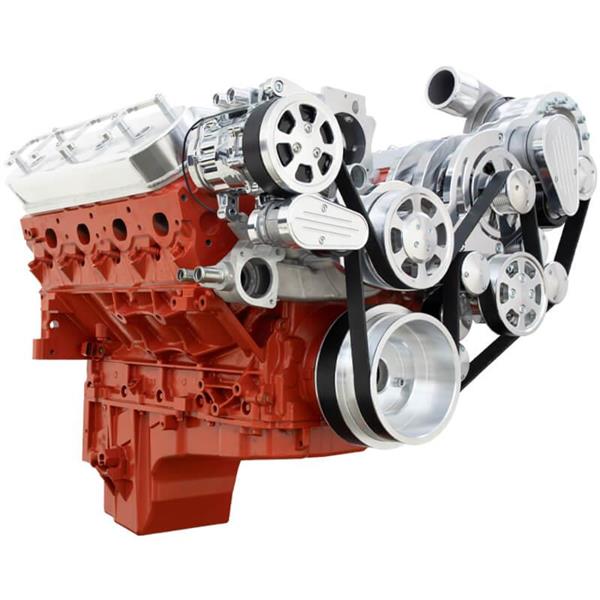

Chevy LS Engine Mid Mount Serpentine Kit for TorqStorm
AC & Power Steering Applications
Fits LS1, LS2, LS3, LS6 & LS7 Engines
All Inclusive WRAPTORTM 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.
TorqStorm Kit Includes:
- Billet Aluminum Bracket
- 10 Rib Supercharger Pulley
- Gates Spring Loaded Tensioner
- Idler Pulley(s)
- Crank Pulley
- 10 Rib Belt
- Mounting Hardware
Note: Head unit NOT included
Wraptor System Includes:
- High Flow Aluminum Water Pump
- 140 Amp, 1-Wire CS130 Alternator
- Sanden Style Peanut Compressor with 8 Rib Clutch
- Compressor Clutch Cover
- AC Compressor Fitting
- GM Type II Power Steering Pump
- Remote Reservoir
- Gates Premium Green Strip 8 Rib Belt
- 8 Rib Water Pump Pulley
- 8 Rib Alternator Pulley
- 8 Rib Power Steering Pulley
- Gates Spring Loaded Tensioner
- Billet Aluminum Bracket
- Alternator Fan
Compatible upgrades
- KRC Power Steering Pump
- 300 Amp Alternator
Application Notes
- Power Steering Lines from pump to reservoir not included
- Some drive by wire applications may require Holley part# 717-15
Notes: Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
