Black Diamond Serpentine System 396, 427 & 454 Supercharger - Alternator Only & Electric Water Pump

Black Diamond Big Block Chevy 396, 427 and 454 Supercharger Engine Serpentine Conversion Kit
Alternator Only - Root Style Blower

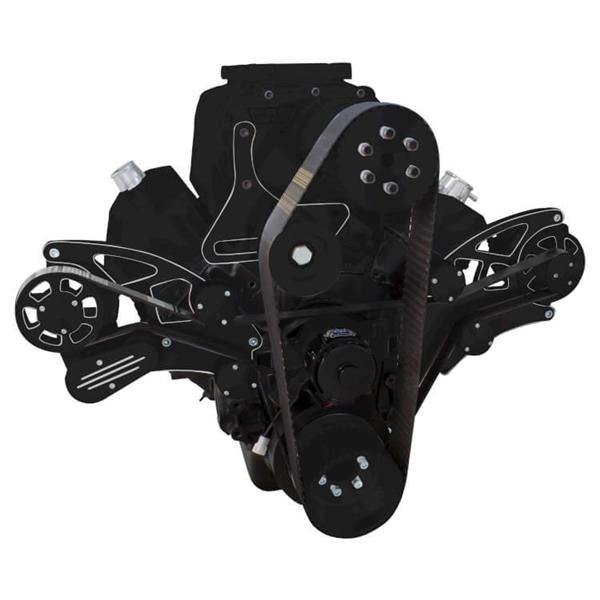

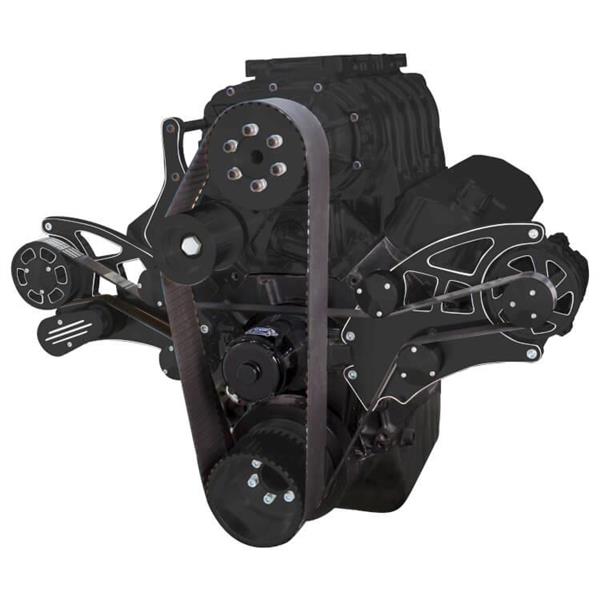

All Inclusive WRAPTOR^TM 8 Track Supercharger Serpentine System for Chevy Big Block engines with 140 Amp alternator. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:

• 140 Amp Black Powder Coated 1-Wire CS130 Alternator
• Gates Premium Green Strip 8 Rib Belt
• Crank Pulley - Black Bright Dip Anodized Aluminum
• Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
• AC Delete Idler Pulley & Bracket - Black Bright Dip Anodized Aluminum
• Two Piece Billet Aluminum Bracket - Black Bright Dip Anodized Aluminum
• Universal Alternator Fan - Black Bright Dip Anodized Aluminum

Application Notes:

• Upgrade to Power Steering Only Requires Pump, PS Pulley and Belt Purchase.
• Upgrade to A/C Only Requires Compressor Purchase.
• Works with either Mechanical or Electric fuel Pump
• Works with Electric fan
• Works with Standard Deck Engines (will not work with Tall Deck Engines)
• Call for verification on Blower Crank Pulley

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
