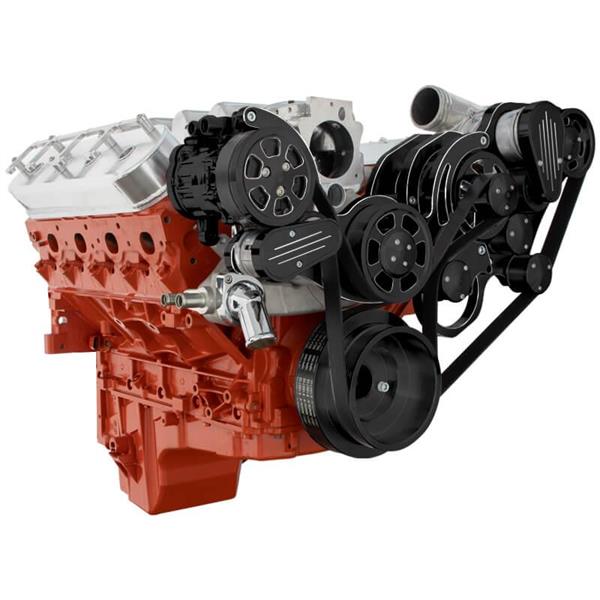

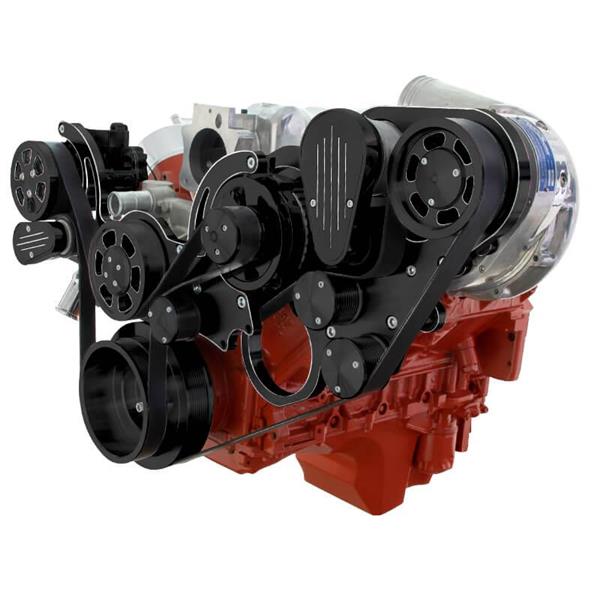

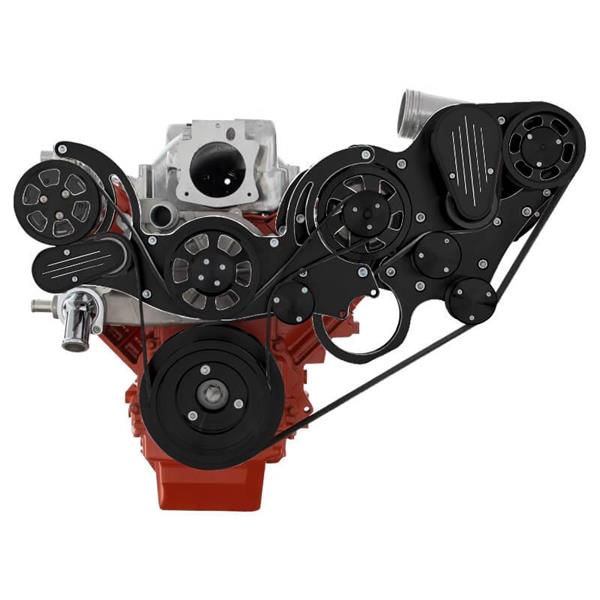

Black Diamond Chevy LS Engine Mid Mount Serpentine Kit for ProCharger
AC & Alternator Applications
Fits LS1, LS2, LS3, LS6 & LS7 Engines
WRAPTORTM 8 Track Serpentine System for Chevy LS engines with Air Conditioning and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add power steering in the future just by purchasing the power steering pulley and pump. Mounts Sanden Style Peanut AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.
ProCharger Kit Includes:
- Billet Aluminum Bracket
- 10 Rib Supercharger Pulley
- Gates Spring Loaded Tensioner
- Idler Pulley(s)
- Crank Pulley
- 10 Rib Belt
- Mounting Hardware
Note: Head unit NOT included
Wraptor System Includes:
- High Flow Aluminum Water Pump
- 140 Amp, 1-Wire CS130 Alternator
- Sanden Style Peanut Compressor with 8 Rib Clutch
- Compressor Clutch Cover
- AC Compressor Fitting
- Gates Premium Green Strip 8 Rib Belt
- 8 Rib Water Pump Pulley
- 8 Rib Alternator Pulley
- Gates Spring Loaded Tensioner
- Billet Aluminum Bracket
- Alternator Fan
Compatible upgrades
- 300 Amp Alternator
Application Notes:
- Call for pricing for kits with out engine accessories
- Some drive by wire applications may require Holley part# 717-15
Notes: Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
