American Auto Wire 1953 - 1962 Corvette Wiring Harness # 510267

$926.10
SKU: 510267

Availability: In stock

Handling Time: 30 Days

Details

To make sure you receive your package, all items $500 and over are sent signature required

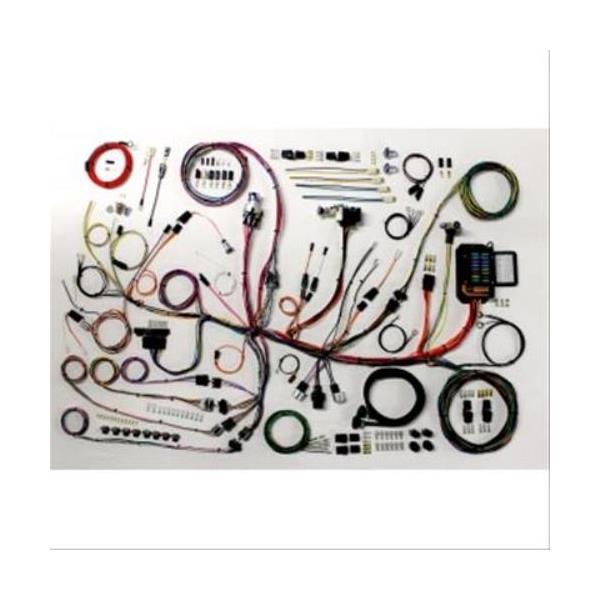

Classic Update Wiring Harness Kit

  • Fits:
  • 953-1962 Chevrolet Corvette

Please note: Classic Update Kits do not support Ammeters

Classic Update Kits give you one of the most complete kits on the market to "Make Wiring THAT Easy". They are designed for specific year, make, and model configurations. The 1953-1962 Chevy Corvette Kit is no exception. The kit boasts 14 features making it the most complete system of its type in the industry! A replacement headlight switch with internal 30-amp circuit breaker, fixed length shaft, and "53- "56 style knob (58-62 owners can use their original knob and shaft assembly). Standard turn signal flasher, hazard flasher, and horn relay mounted on harness. NEW compact ATO-Style fuse panel that is fully encased in a closed box assembly with coverlid and mounts on the inside firewall in the stock location (mounting hardware included). The fuse coverlid is labeled on the inside identifying all circuits by description and their respective fuse ratings. All high amperage output circuits incorporate the same superior spring steel reinforced terminals that are used in our Highway Series kits. Harness is laid out and formed to allow for nearly all after market accessories such as; electric gauge packages, heat and air conditioning systems, updated wiper systems, etc.

  • Kit Features:
  • any original switch connector bodies - an American Autowire exclusive feature.

  • Steering column connectors can plug directly into most aftermarket steering columns or stock 1953-62 Corvette columns using the adapter and terminals included in the kit.

  • Correct original style under dash courtesy lamp assemblies are included.

  • Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. Original terminals and connectors (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as CLASSIC INSTRUMENTS, DAKOTA DIGITAL, AUTOMETER, VDO, and others.

  • Rear body harness assembly plugs into the main harness at the left kick panel location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes stop and tail light lead wires along with dis-connectable tail lamp extensions that include the proper "twist in" style tail lamp sockets. A license plate lamp lead and socket, as well as fuel tank sender and dedicated sender ground leads are also included. (An optional backup light kit that includes lead wires and sockets is also available)

  • NEW floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.

  • Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer (if needed). A heavy gauge alternator feed and fusible link are also included for any typical high output 1 wire or internally regulated alternator. Connectors supplied for power and tach leads for GM style H.E.I. distributors along with various oil and temp senders.

  • Front lighting includes extra long leads that can be routed for stock or optional appearances. All head light, parking light, and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided. Mating terminals and connectors are also provided for you to complete your custom installation.

  • NEW headlight bucket extension harnesses that include the grommets, clamps, and loom are also included. Services both dual and quad headlight systems.

  • NEW ignition switch with indexed connector included.

The early GM/FORD generators and externally regulated alternators are just not up to the task of providing power to an expanded wiring system like these classic update kits. The point of this kind of kit is really to allow people a way to upgrade and expand their wiring system and so an alternator upgrade is usually part and parcel to this kind of upgrade.

NOTE: These kits are recommended for MODIFIED original vehicles, not OEM restoration projects.

Note: This wiring is designed to work on Internally regulated alternator and have a 12v feed for the coil/distributor/ignition box. This kit IS NOT set up with a resistance wire for a standard, points type ignition system. It is wired with a full 12 volt primary ignition feed that is hot in both the start and run positions. It will support HEI, MSD, other electronic ignition systems, as well as computerized Fuel Injec- tion systems. If you wish to run a points type system, there are illustrations on the engine connection pages to do so. Extra parts that are not included in this kit will be required to complete that operation. (see our other items).

Fitment Details

Year Make Model Trim Engine Notes
1953 Chevrolet Corvette
1954 Chevrolet Corvette
1955 Chevrolet Corvette
1956 Chevrolet Corvette
1957 Chevrolet Corvette
1958 Chevrolet Corvette
1959 Chevrolet Corvette
1960 Chevrolet Corvette
1961 Chevrolet Corvette
1962 Chevrolet Corvette
