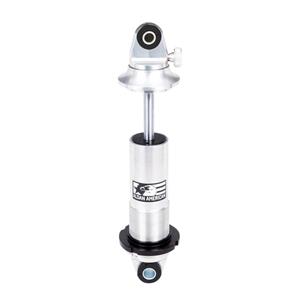

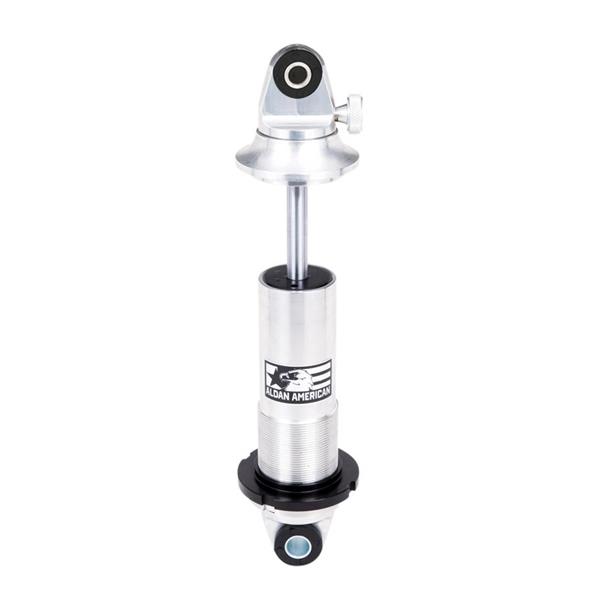

Aldan American Coil-Over Shock, Phantom, Single Adj. 13.40 in. Extended, 9.70 in. Compressed AS-654
Phantom Series Rebound Adjustable coilovers provide 11 Rebound Settings of Adjustment that gives you the ability to control the rebound speed of your shocks.
- Coilover Shock Adjustment: Rebound (single) adjustable
- Adjustable Ride Height: 12-12.5
- Coilover Position: Front/Rear
- Extended Length: 13.4 in. / Compressed Length: 9.7 in.
- Coilover Mounting: Bushing
| Vendor |
Aldan American |
| Product Line |
Phantom SeriesCoil-Over Shock - Rebound Adjustable |
| Coil-OverShock Type |
Single-adjustable |
| Shock BodyMaterial |
Aluminum |
| Shock BodyFinish |
Billet |
| AdjustableValving |
Yes |
| Number ofValving Selections |
11 |
| ExtendedLength (in) |
13.400 |
| CollapsedLength (in) |
9.700 |
| ThreadedAdjustment Range |
3.000 in. |
| Upper Mount |
Eyelet |
| Lower Mount |
Eyelet |
| InternalDesign |
Twin-tube |
| Gas Charged |
Yes |
| Body Diameter(in) |
2.000 in. |
| BushingMaterial |
Polyurethane |
| Bushing Color |
Black |
| Coil-OverSprings Included |
No |
| RecommendedSpring Diameter (in) |
2.500 in. |
| RecommendedSpring Length (in) |
10 in. |
| AdjustableMounting Bracket Included |
No |
| HardwareIncluded |
Yes |
| Quantity |
Sold individually. |
| Notes |
5/8 in. and 1/2 in.bore, steel sleeves Included |
|
|
