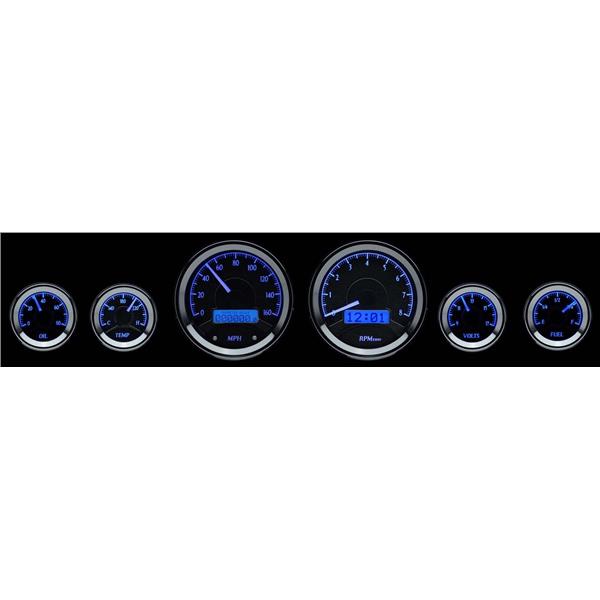

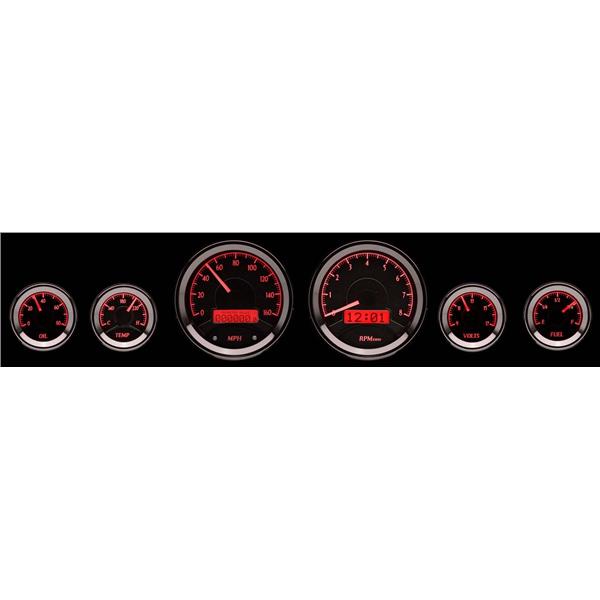

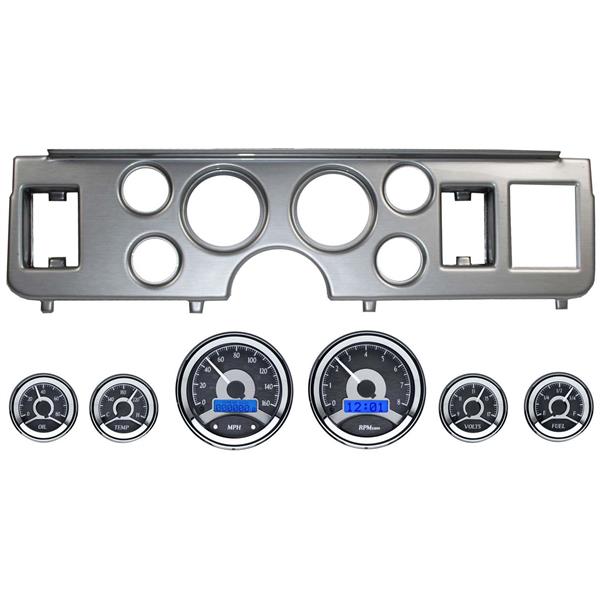

79-86 Mustang Silver Dash Carrier Panel w/ Dakota Digital VHX Universal 6 Gauge

$1,244.00
SKU: 612790012 + VHX-1060

Availability: In stock

Handling Time: 30 Days

Details

To make sure you receive your package, all items $500 and over are sent signature required

Made in the USA!

Fits:
1979-1986 Ford Mustang

Purchase Includes:
Dash Panel
Dakota Digital Electric 6 Gauge Set As Shown
Wiring Harness, includes turn signal, high beam and warning leds

ABS UV Resistant plastic dash panel comes pre-drilled with 3 3/8 for the Speedo and Tach. The 4 smaller holes are 2 1/16.

Dakota Digital VHX Gauge Kit Includes:

  • imensions:
  • peedometer and Tachometer: Cutout 3-3/8"
  • il Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16"

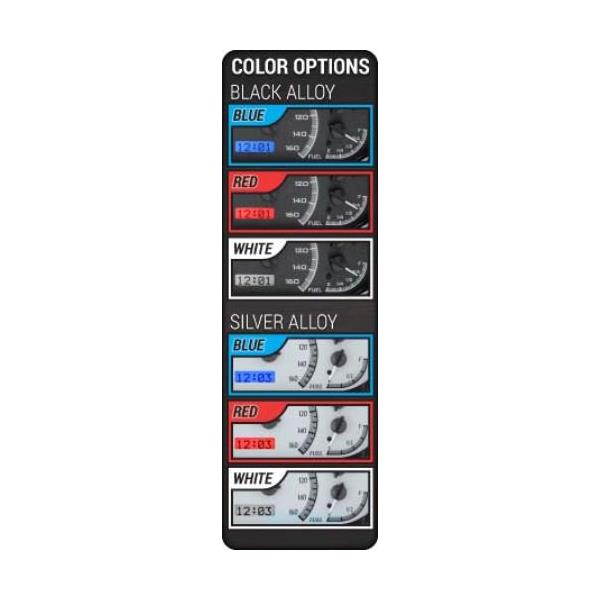

Please CLICK HERE to see all the color options for this item!

VHX System Includes:

Analog Gauges

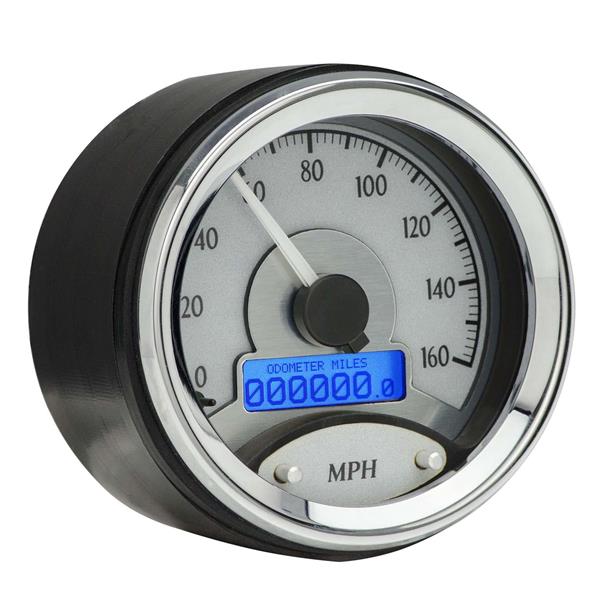

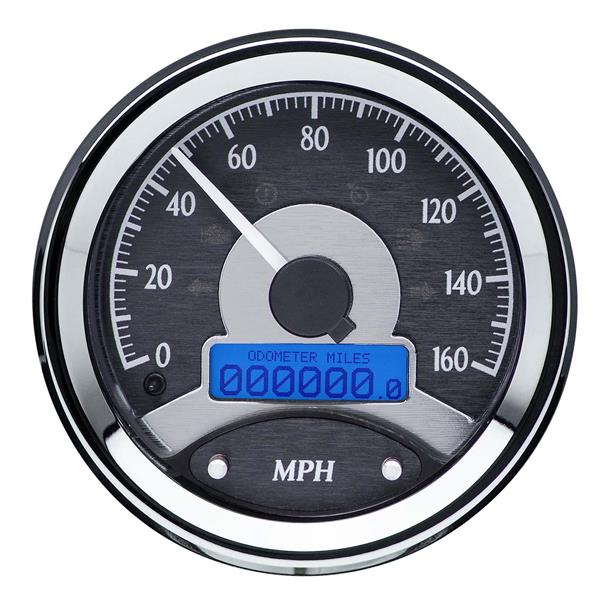

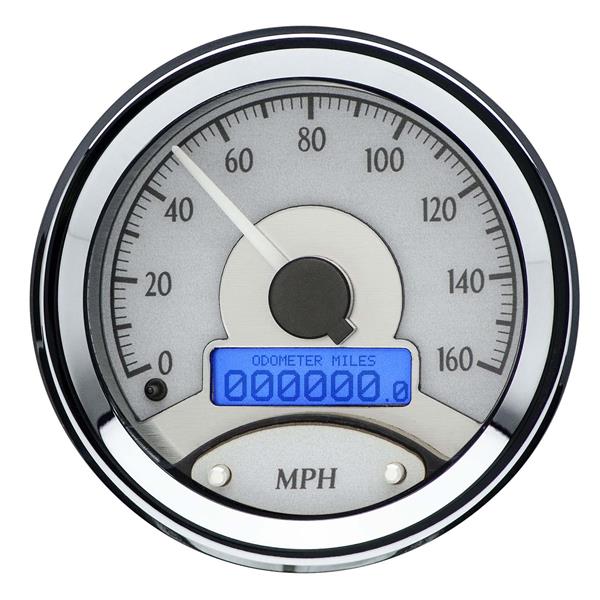

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)

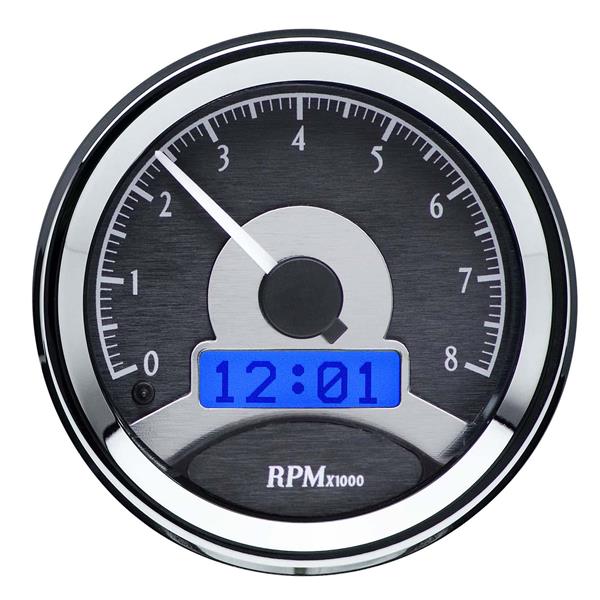

Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260F (optional metric version 40-120C)

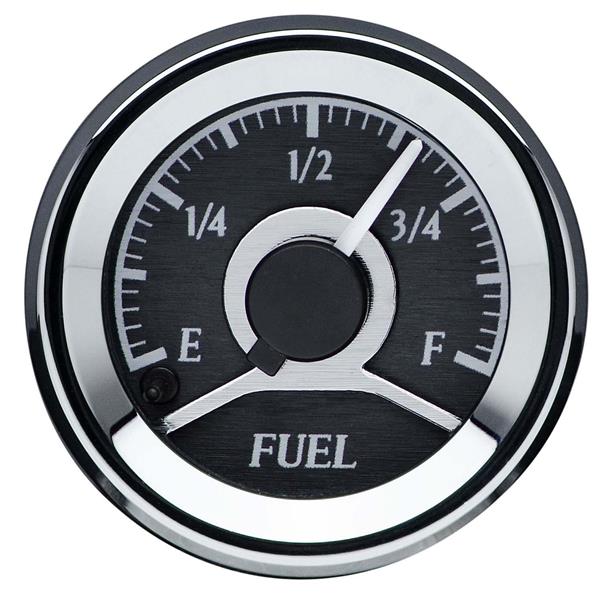

Fuel Level - E, 1/4, 1/2, 3/4, F (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)

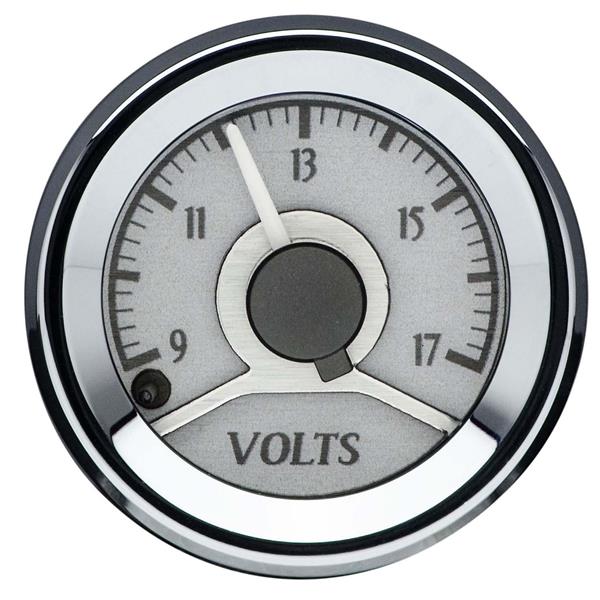

Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300F / 40-150C displayed in 1F/C increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

CLICK HERE - to see all of the Upgrade Options!

Fitment Details

Year Make Model Trim Engine Notes
1979 Ford Mustang
1980 Ford Mustang
1981 Ford Mustang
1982 Ford Mustang
1983 Ford Mustang
1984 Ford Mustang
1985 Ford Mustang
1986 Ford Mustang
