Made in the USA!
Fits:
1969 Chevrolet Chevelle or El Camino

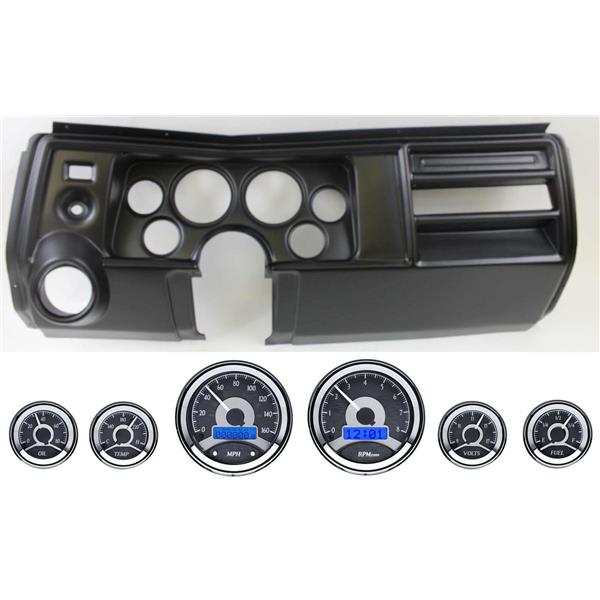

Purchase Includes:

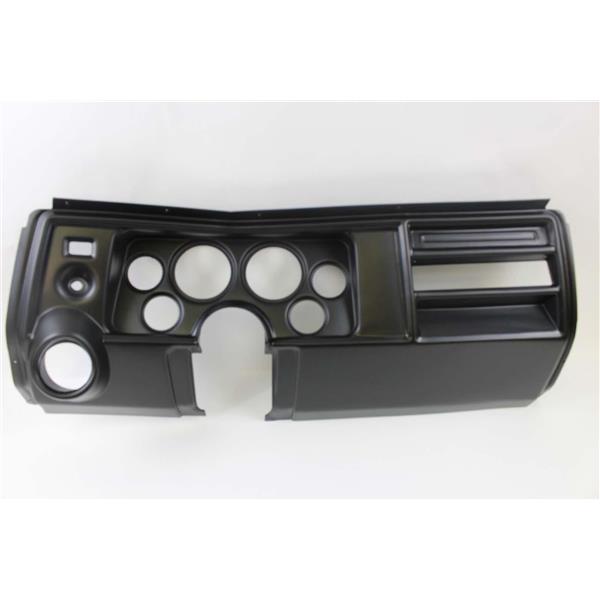

Dash Panel

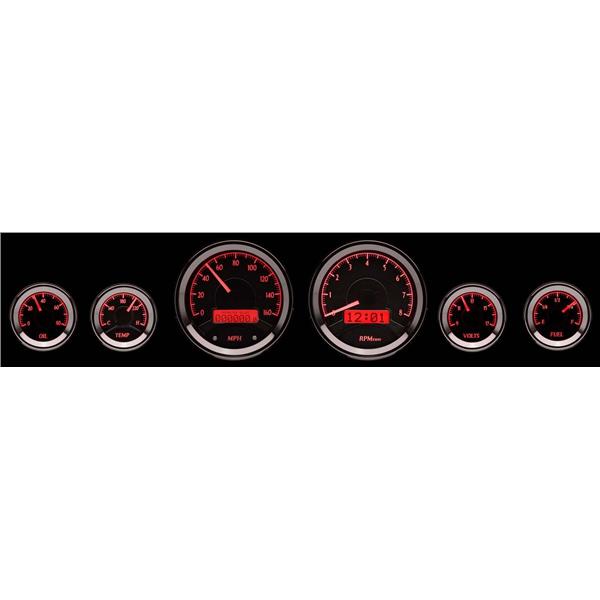

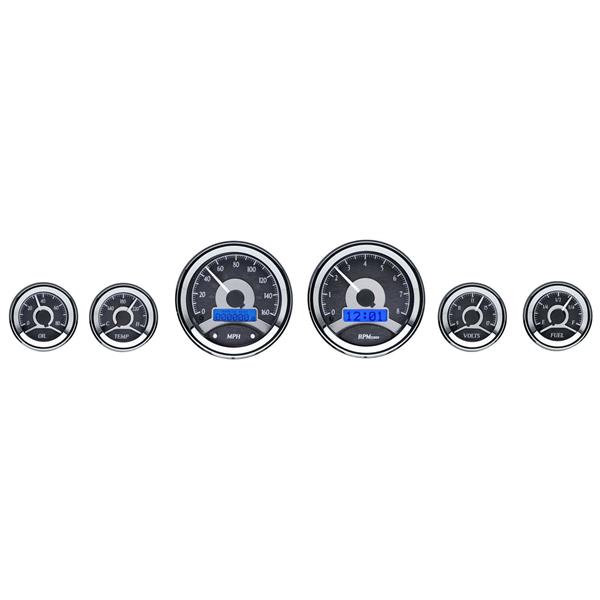

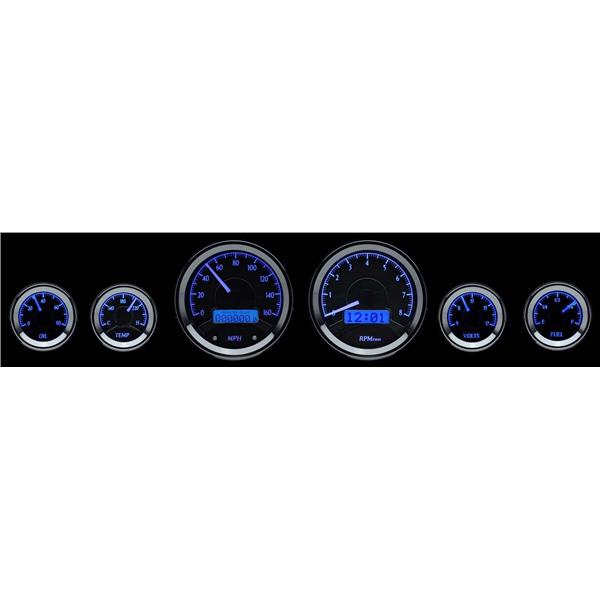

Dakota Digital Electric 6 Gauge Set As Shown
Wiring Harness, includes turn signal, high beam and warning leds
ABS UV Resistant plastic dash panel comes pre-drilled with 3 3/8 for the Speedo and Tach. The 4 smaller holes are 2 1/16.
Dakota Digital VHX Gauge Kit Includes:

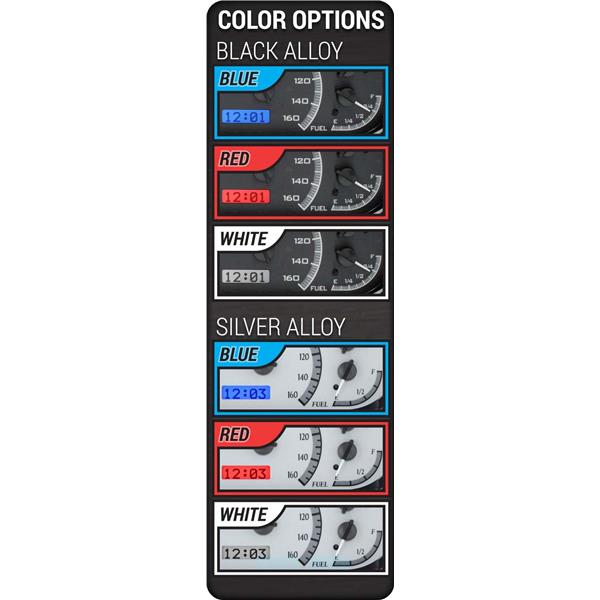

Please CLICK HERE to see all the color options for this item!
VHX System Includes:
Analog Gauges
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260F (optional metric version 40-120C)
Fuel Level - E, 1/4, 1/2, 3/4, F (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)
Voltmeter - 9-17 VDC
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Standard Displays:
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Performance Meters:
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Gauges:
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300F / 40-150C displayed in 1F/C increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Built-In Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Included Sensors:
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).
Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.
Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.
Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.
CLICK HERE - to see all of the Upgrade Options!
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS Hardtop 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Hardtop 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Greenbrier Wagon 4-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Convertible 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Wagon 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | SS | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Hardtop 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate Wagon 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe Sedan 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | 300 Deluxe | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Malibu Sedan 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours Estate | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Concours | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | Chevelle | Nomad Wagon 4-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | Custom Standard Cab Pickup 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | Base Standard Cab Pickup 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
1969 | Chevrolet | El Camino | SS Standard Cab Pickup 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
1969 | Chevrolet | El Camino | SS Standard Cab Pickup 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated |
