67 68 Firebird Carbon Dash Carrier w/Auto Meter Ultra Lite Mechanical Gauges

SKU: 150-67-51004

Availability: In stock

Handling Time: 30 Days


To make sure you receive your package, all items $500 and over are sent signature required

This item will ship directly from Classic Dash in Carson City Nevada.

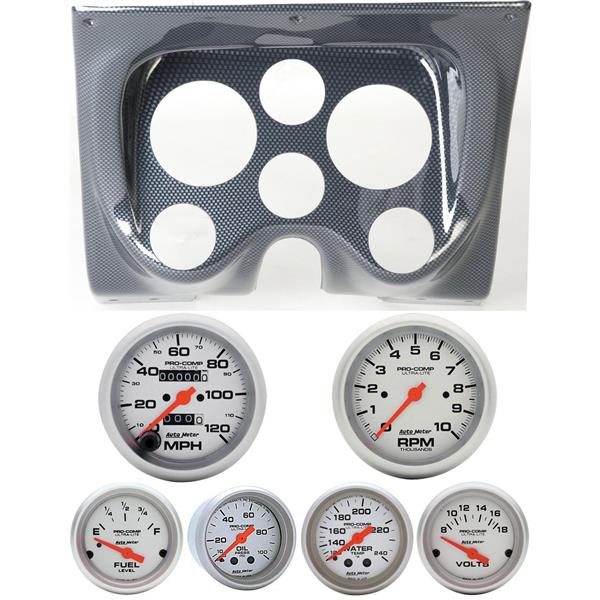

1967-1968 Pontiac Firebird Carbon Fiber (Looking) Dash Panel Carrier with Ultra Lite Mechanical Gauges

  • Kit Includes
  • Plastic Dash Panel
  • Auto Meter Ultra Lite Mechanical Gauge Set

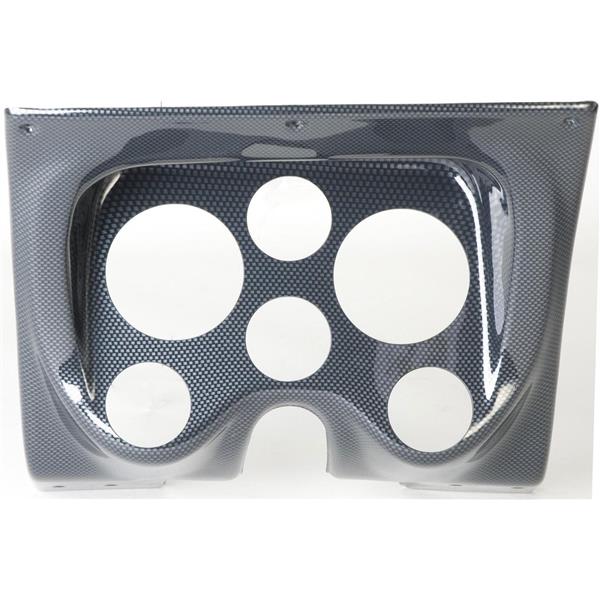

Molded UV resistant ABS PLASTIC instrument panel will replace the stock gauge panel to aftermarket gauges.

The drilled hole sizes are 3 3/8 inch Speedo and Tach and 4 - 2-1/16 inch gauge holes.

Auto Meter Ultra Lite - Mechanical Gauges

When you're ready to put the best instrumentation available in your vehicle, don't settle for slow and inaccurate factory equipment. Auto Meters In Dash Tachs and Speedos, feature their famous high performance movements and are designed with seamless dashboard mount in mind for the ultimate driver information center.

This diverse series of gauges combine the classic 'Tough' Auto Meter look with over 30 years of race proven design.

Advanced 90 degree air core movements and simple three wire installation characterize these high performance instruments.

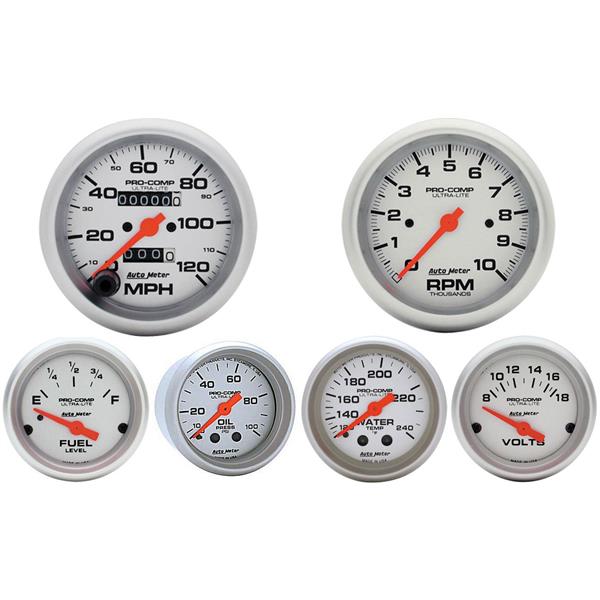

  • Gauge Kit Includes:
  • Oil and Water Temp Sending Units

  • 3-3/8 inch - Mechanical 120 MPH Speedo
    Resettable Trip odometer.
    Includes 5/8" - 18 threaded cable input with .104" square drive
    Speedometer cable not included.

  • 3-3/8 inch - 10,000 RPM Tach
    Operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions.

  • 2-1/16 inch - Mechanical Oil Pressure Gauge
    Includes 10 ft. nylon tubing with 1/8" NPT fittings
    Includes 1/4'' NPT adapter/fitting

  • 2-1/16 inch - Mechanical Water Temp Gauge
    Includes 6 ft. tubing
    Includes 1/2" NPT adapter/fitting

  • 2-1/16 inch - Fuel Level Gauge

  • 2-1/16 inch - Volt Gauge

  • Gauge Specifics:
  • Face Color:

  • Bezel Color:
    Anodized Silver

  • Pointer Color:

  • Illumination:
    Standard Bulb Illumination

Speedometer needs thread on style cable

Turn Signal and High Beam Indication not provided with this kit
Wiring Harness Available Separately
Please see our other items

Other Gauge Kits Available
Please see our other items

Classic Dash, formed in 2002, was the first company to create replacement ABS composite dash panels for vehicles of the muscle car era. Today the firm's state-of-the-art manufacturing facility is located in Carson City, Nevada, and the company offers the most complete line of replacement dash panels.

These ABS plastic sheets have been sized and prepared for thermal forming, a vacuum-forming process performed at 320 degrees Fahrenheit. The material is endowed with a UV inhibitor to protect the finished panels against damage from the sun.

With gauges installed and dash panel secured to the vehicle, these ABS panels are light in weight and exceedingly rigid.

Accuracy is the key feature of the Thermwood 5-axis CNC high-speed router. It consistently trims these dash panels to within .005 inch plus or minus.

**Due to the "Kit" Nature of this Item Gauges sometimes ship from multiple locations. Average delay of 3-5 Business Days depending on your location from the shipping warehouse may apply. Gauges, Dashes and / or Wiring Harness's Ship from Carson City Nevada within 1-2 business days, we have Gauge Warehouse locations in California, Nevada, and Illinois. Delay of 1-2 days in processing / shipping time may apply on Gauges. We do our best to combine shipping as much as possible but we also want to make sure you receive your order as quickly as possible. Complete / Combined orders usually process next business day and you will have a tracking # and / or status on your shipment and / or delays within 3 business days of your order processing. Thank you for your patience and understanding.

Fitment Details

Year Make Model Trim Engine Notes
1967 Pontiac Firebird
1968 Pontiac Firebird
